User's Manual 498 Document #: LTRT-68822
Mediant 2000

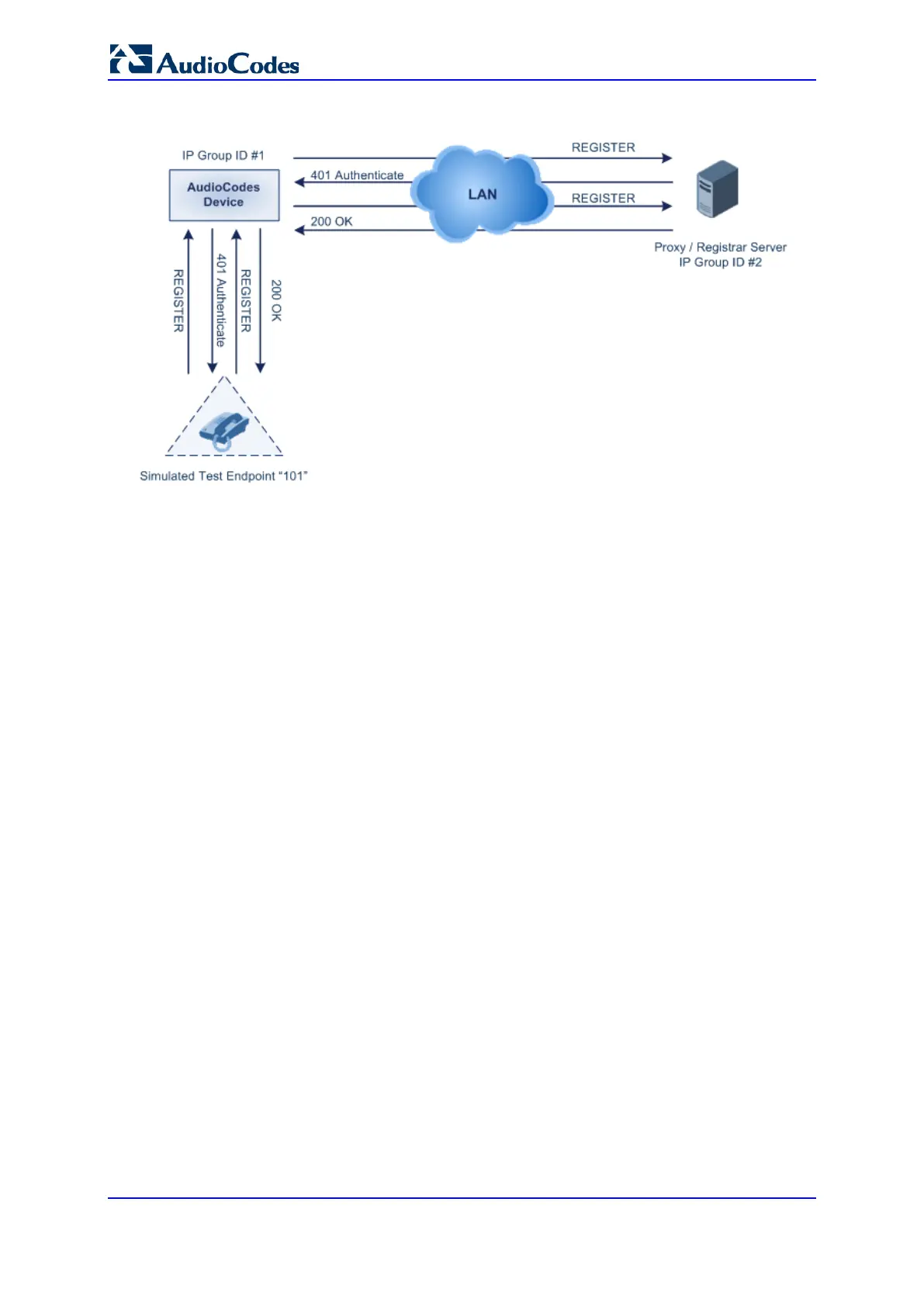

Figure 43-7: Test Call Registration Example
This example assumes that you have configured your device for communication
between LAN phone users such as IP Groups to represent the device (10.13.4.12)
and the proxy server, and IP-to-IP routing rules to route calls between these IP
Groups.
• Test Call table configuration:
♦ Endpoint URI: "101"
♦ Called URI: "itsp"
♦ Route By: Dest Address
♦ Destination Address: "10.13.4.12" (this is the IP address of the device itself)
♦ Auto Register: Enable
♦ User Name: "testuser"
♦ Password: "12345"
♦ Call Party: Caller
