Description of the Softwar
e Modules and Parameters
Parameter manual
b maXX
BM3000
Document no.: 5.1200
1.07
151
of 820
4
4.4.4.3

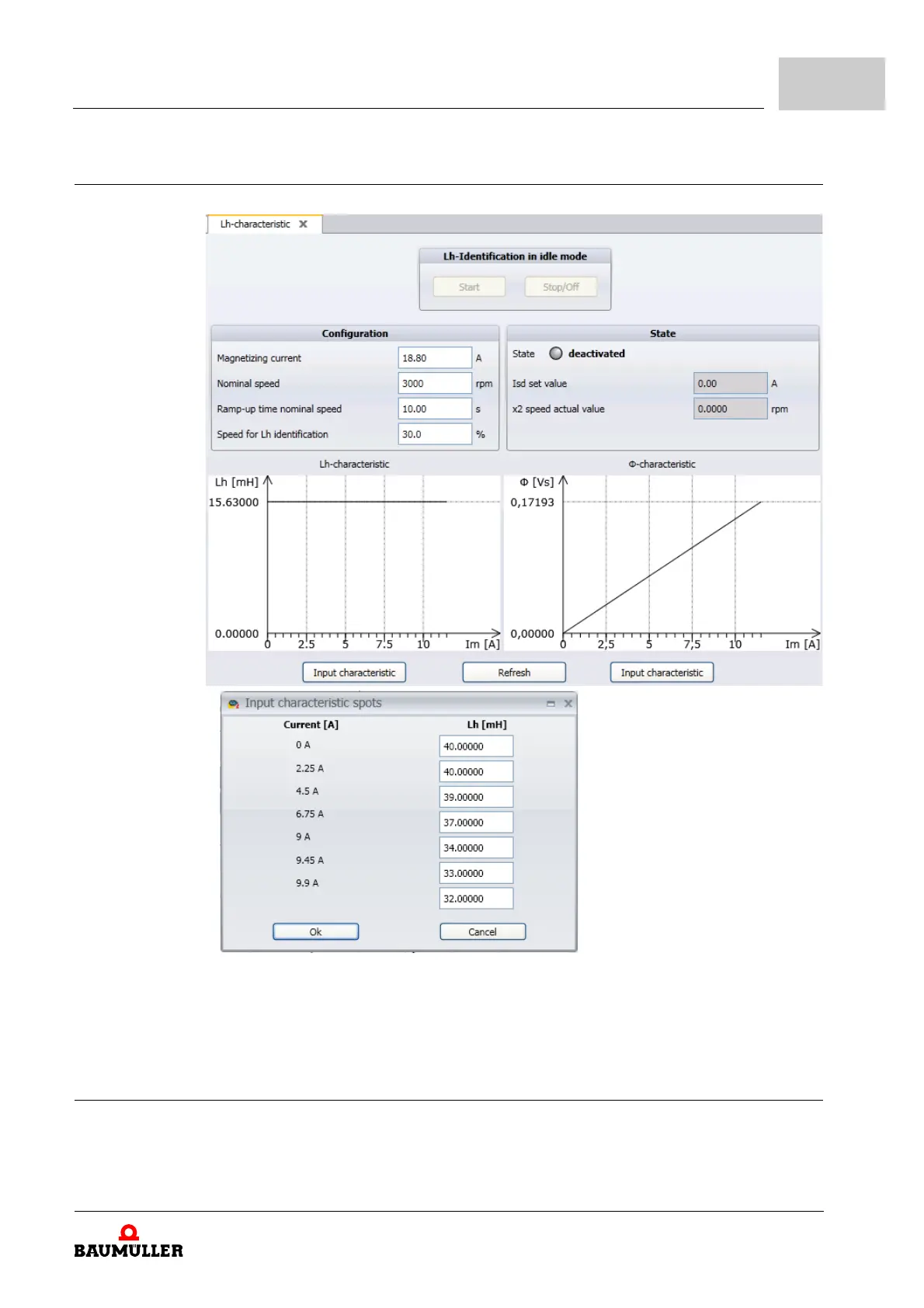

ProDrive Lh-characteristic
Figure 75:
ProDrive Lh-characteristic
4.4.4.4
Parameter overview Lh-characteristic
Functional bl
ock:
FbAsynchronous machin
e [146]
150
152
