4.4.12.2 ProDrive analog input

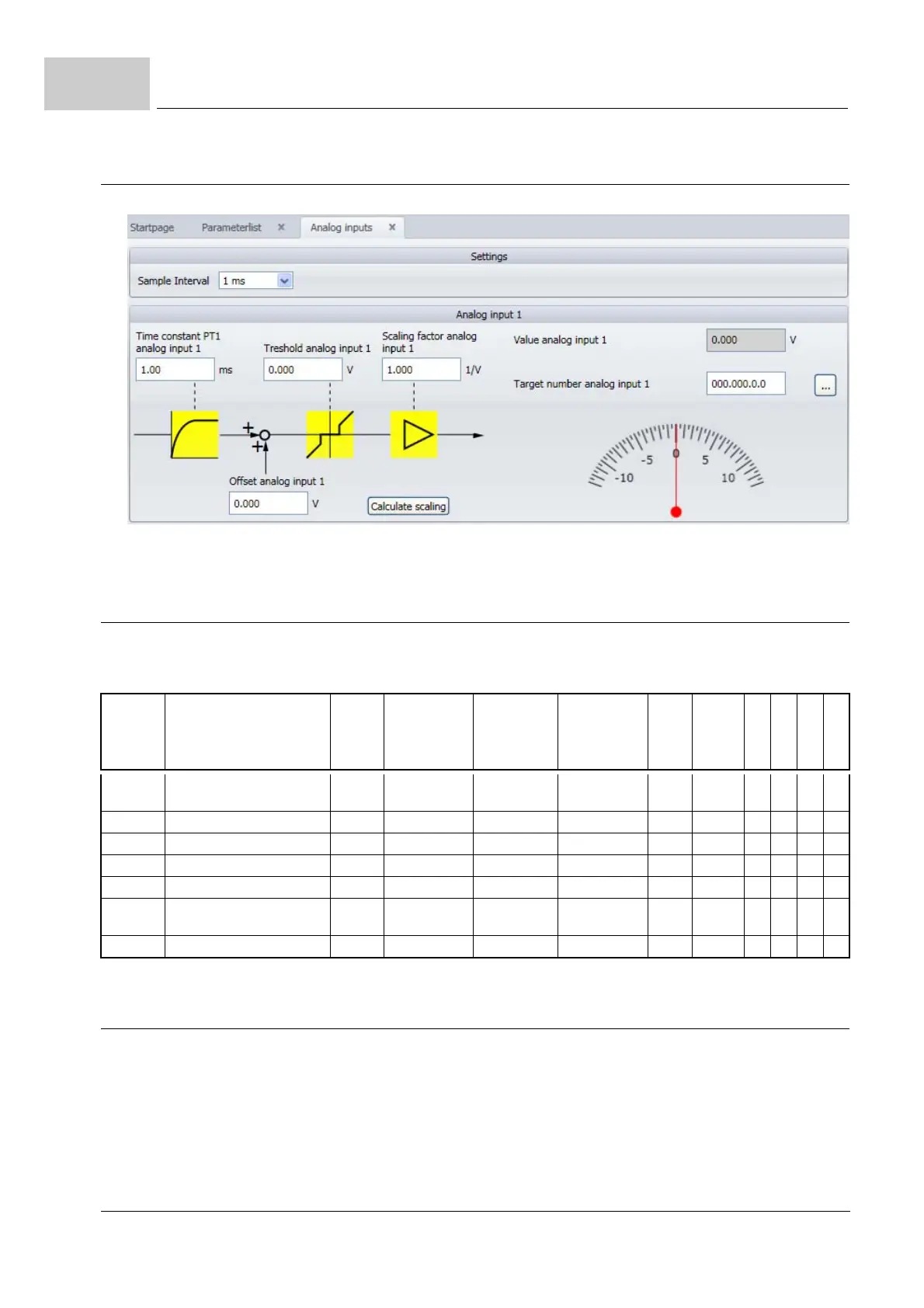

Figure 99: ProDrive analog input
4.4.12.3 Parameter overview
Functional block: FbAnalogInput [144]
4.4.12.4 Description of the Parameters
144.1 Time constant PT
1
analog input 1
Time constant of the PT
1
filter for smoothing the analog input signal on Channel 1
Number Name Type Min Max Default Value Unit Factor
Read only Storage DS Support Cyclic Write
144.1 Time constant PT1 analog
input 1
FLOAT 0 0.060 0.001 ms 1:1000 X
144.2 Scaling factor analog input 1 FLOAT -1000000000 1000000000 1 1/V 1:1 X
144.3 Offset analog input 1 FLOAT -10 10 0 V 1:1 X
144.4 Treshold analog input 1 FLOAT -10 10 0 V 1:1 X
144.5 Value analog input 1 FLOAT -23 23 0 V 1:1 X
144.6 Target number analog input
1
UDINT 0 0xFFFFFFFF 0 1:1 X
144.20 Time slot analog inputs UINT 0 3 0 1/2/3 1:1 X
