Description of the Software Modules and Parameters
Parameter manual b maXX BM3000
Document no.: 5.12001.07
227
of 820
4
Input signal:

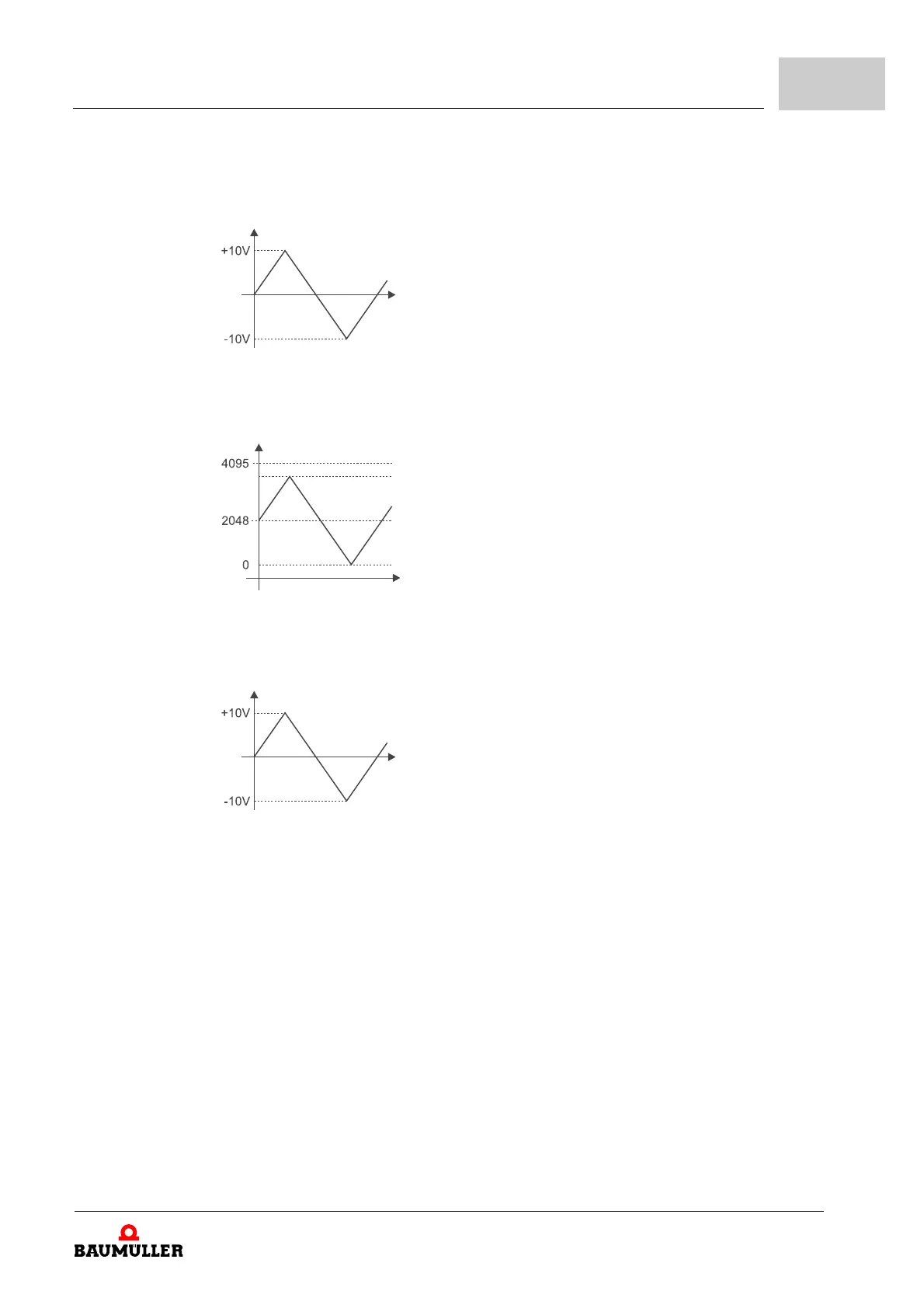

Figure 96: Signal at analog input
After A/D conversion (non-quantized representation):
Figure 97: Signal after A/D conversion
After restandardization:
Figure 98: Signal after restandardization
