Communication via EtherCAT
Parameter manual b maXX BM3000
Document no.: 5.12001.07 Baumüller Nürnberg GmbH
20
of 820
2.5
2.5 Communication via EtherCAT
BM2500 with EtherCAT
®
CoE profile with the following type code is required:
BM25XX-XXX1-...
For the communication via EtherCAT the following is required:
m EtherCAT Master BMC-M-ECT-02
m Controller BMC-M-PLC-02
m Power supply unit BMC-M-PSB-01
m Engineering Framework ProMaster
n Leave the base address on the EtherCAT Master unchanged (192.168.1.1).
h Set the desired IP address on the BM2500 controller (here 192.168.1.2).
You will find further information about this in the b maXX BM2500, 5.16020 Operating
Manual, Art. No. 441838. and in the EtherCAT
®
, 5.10030 Application Manual, Art. No.
440084).
h Set a fixed IP address on the PC or use a second network card:
System Control Network Connections LAN Connection Properties 
Internet Protocol (TCP/IP) Properties Assign fixed IP address
from the same address space (here, e.g. 192.168.1.254).

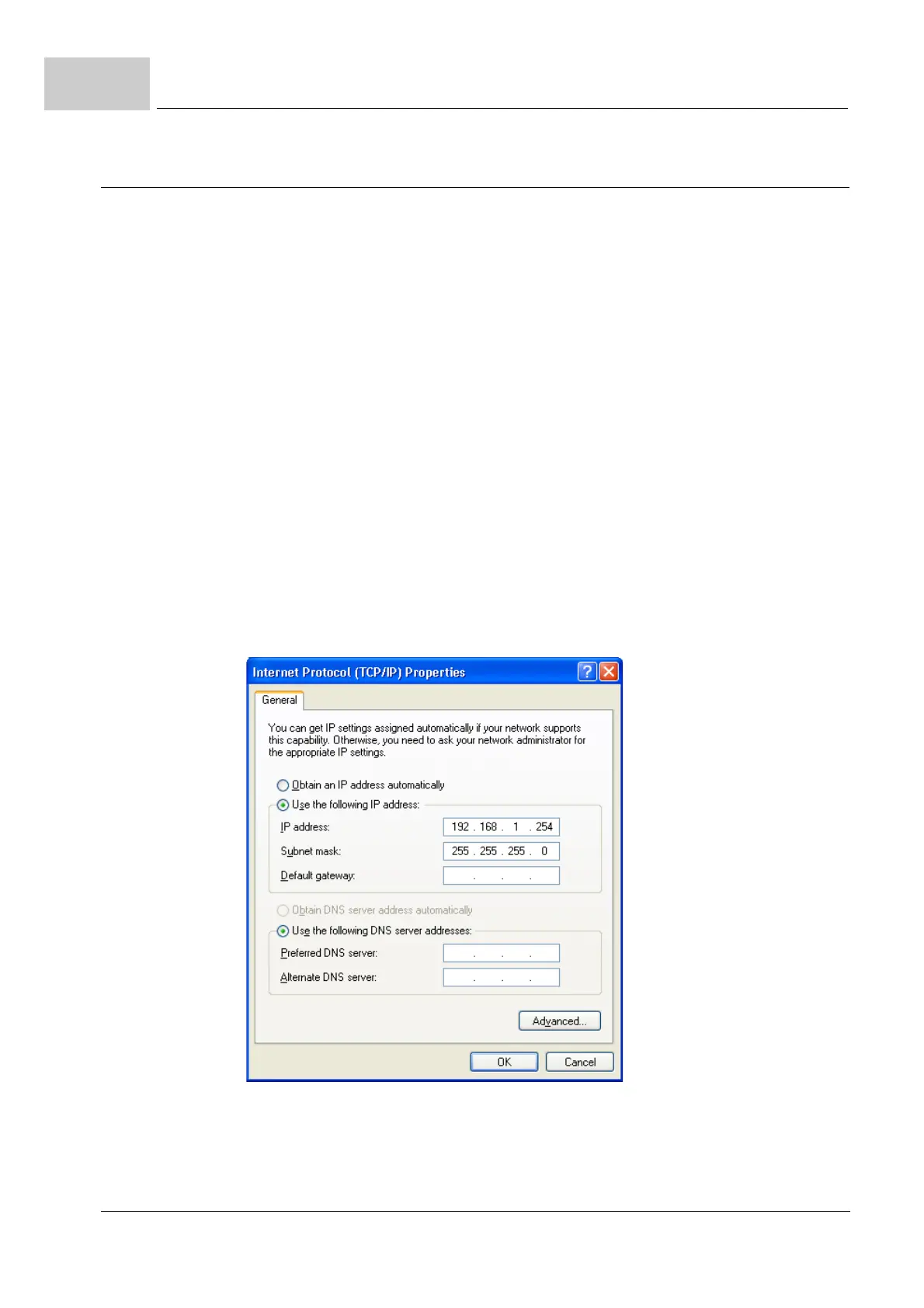

Figure 1: Setting fixed IP addresses
