Commissioning BM25xx
Parameter manual b maXX BM3000
Document no.: 5.12001.07
21
of 820
2
n Start ProMaster.
n Select b maXX controller PLC with EtherCAT Master from the catalog.
n Select b maXX 2500 Drive from the catalog.
n Open/activate the Workspace window.
n Click the Controller PLC in ProMaster.
n Click EtherCAT Master  Configure Master Bus (ProEtherCAT) in the Workspace win-
dow.
n The window will open:

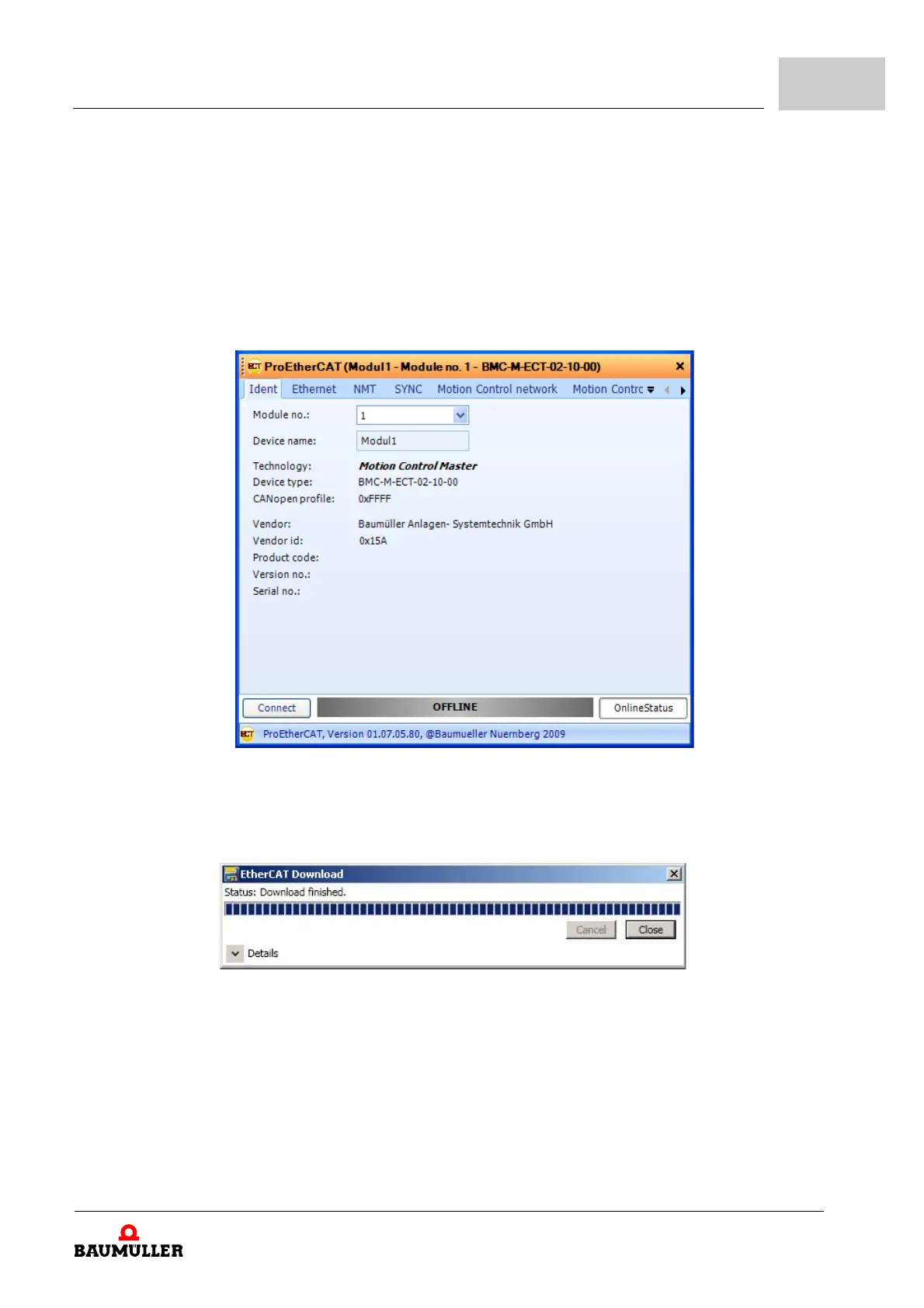

Figure 2: ProEtherCAT
n Click on Connect.
n Select the tab Download  Update list  Download
Figure 3: ProEtherCAT Download
n Click on Close.
n Select the tab Bus control  click on Operational.
