Baumuller b maXX BM3000 - Prodrive Encoder; Encoder Optimization

Configuration
Parameter manual b maXX BM3000
Document no.: 5.12001.07 Baumüller Nürnberg GmbH
166
of 820
4.4
4.4.6.2 ProDrive Encoder

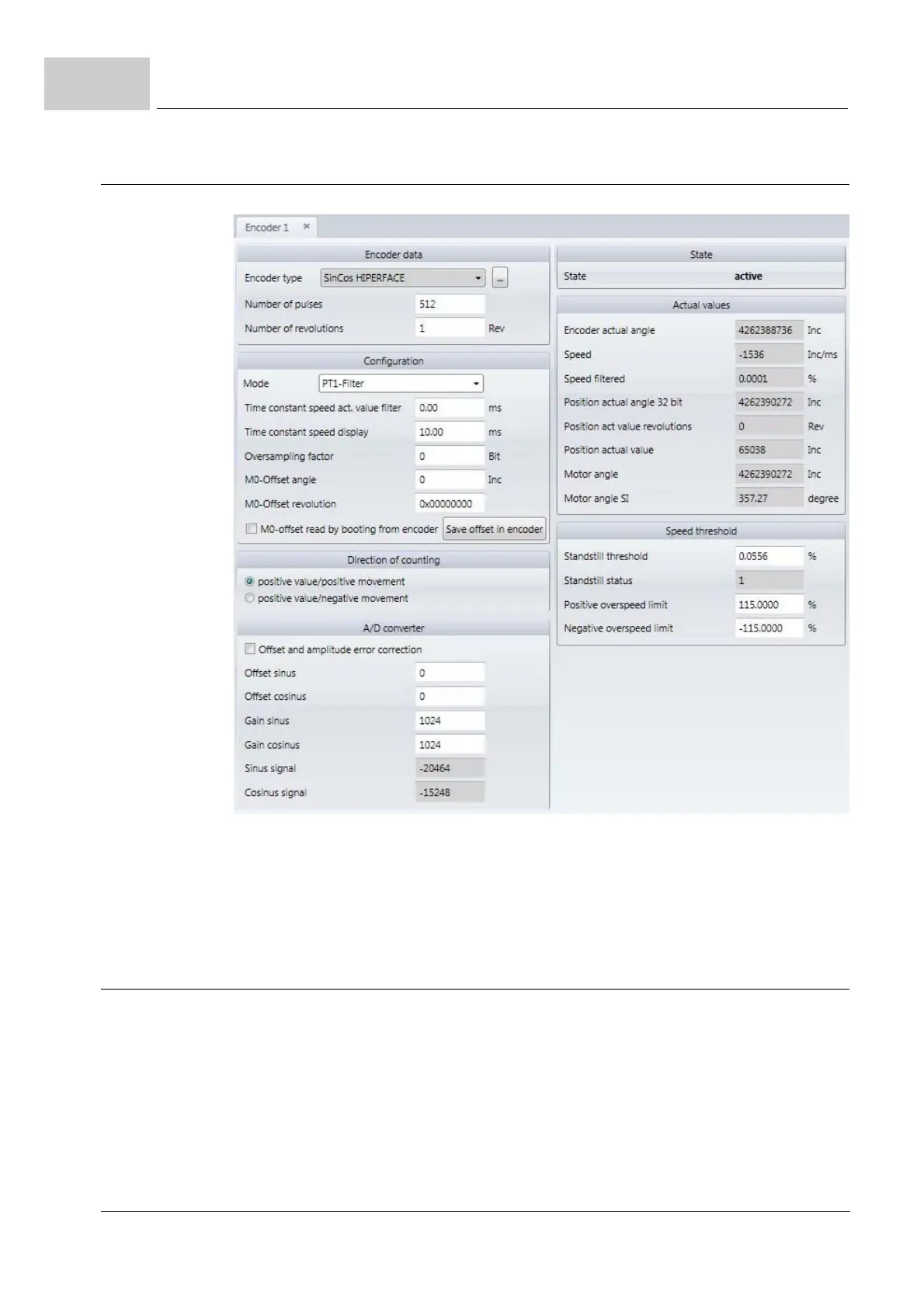

Figure 82: ProDrive Encoder
4.4.6.3 Encoder optimization
The signals of the encoder or of the encoder's attachment are not always correct. The en-
coder signals can be optimized with different methods. This way correct positioning infor-
mation and speed information is obtained.
