Preparations
Parameter manual b maXX BM3000
Document no.: 5.12001.07 Baumüller Nürnberg GmbH
52
of 820
3.4
3.4.2 Communication via EtherCAT
BM3000 with EtherCAT
®
with the following type code is required:
BM3XXX-XXXX-XXXXX[-X]-1XXXX[-S0X]-XX[-XX][-EXX][-#XX]
For the communication via EtherCAT the following is required:
m EtherCAT Master BMC-M-ECT-02
m Controller BMC-M-PLC-02
m Power supply unit BMC-M-PSB-01
m Engineering Framework ProMaster
n Leave the base address on the EtherCAT Master unchanged (192.168.1.1).
n Set the desired IP address on the BM3000 controller (here 192.168.1.2).
You will find further information about this in the b maXX BM3000, 5.11018 Operating
Manual, Art. No. 441839.
n Set a fixed IP address on the PC or use a second network card:
System Control Network Connections LAN Connection Properties
Internet Protocol (TCP/IP) Properties Assign fixed IP address
from the same address space (here, e.g. 192.168.1.254).

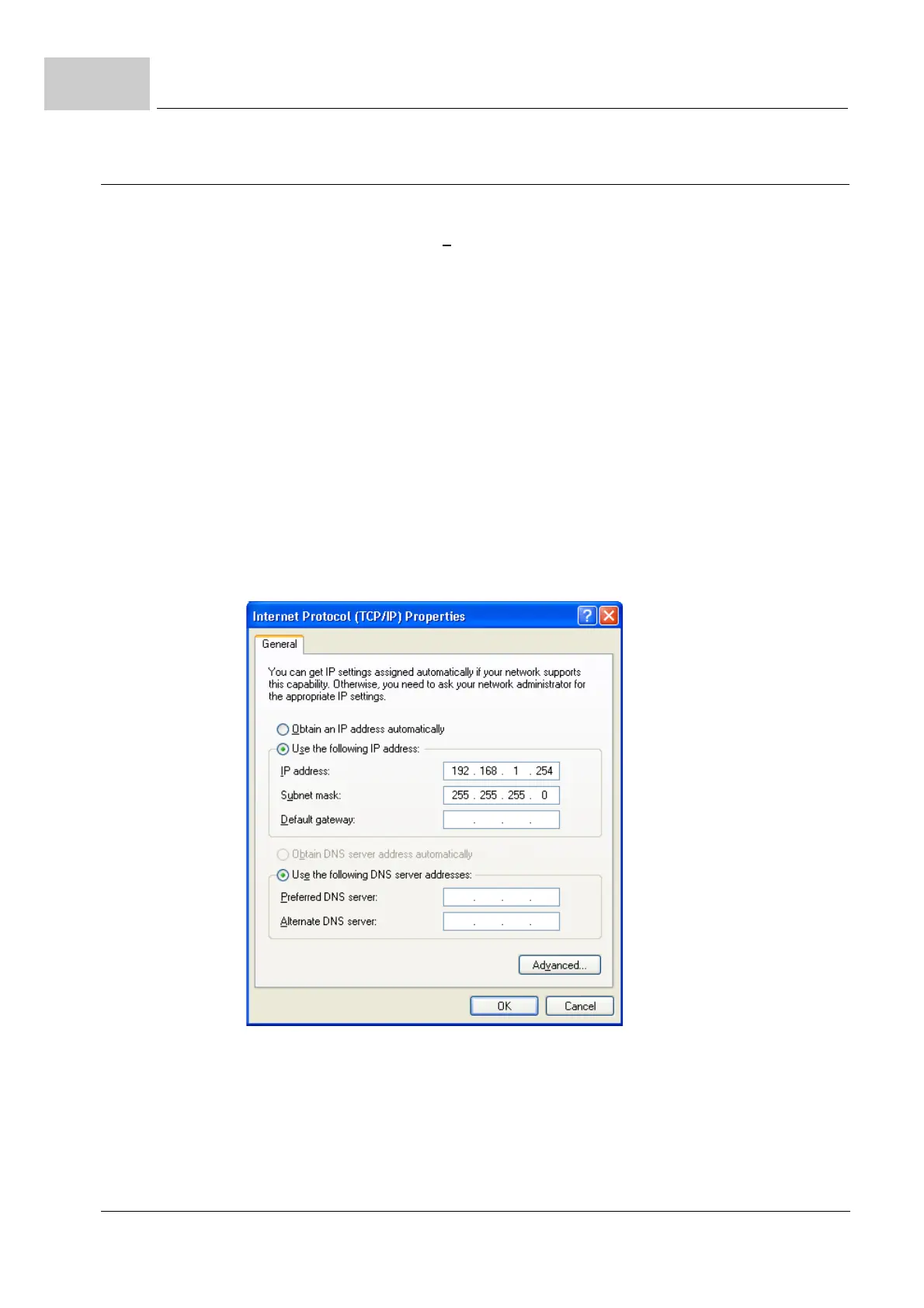

Figure 34: Setting fixed IP addresses
n Start ProMaster.
n Select b maXX controller PLC with EtherCAT Master from the catalog.
n Select b maXX 3300 Drive from the catalog.
n Open/activate the Workspace window.
