Commissioning BM25xx
Parameter manual b maXX BM3000
Document no.: 5.12001.07
37
of 820
2
The following motor parameters must be specified:
m Maximum speed, mech.(Z107.26– Maximum speed, mechanical)
m Number of pole pairs (Z107.19– Pole pairs)
m Phase sequence (Z107.38– Motor flags, Bit 0 = 0: counter-clockwise, Bit 0 = 1: clock-
wise)
Now save the entered data.
25 Click on "Parameter set management" in the navigation

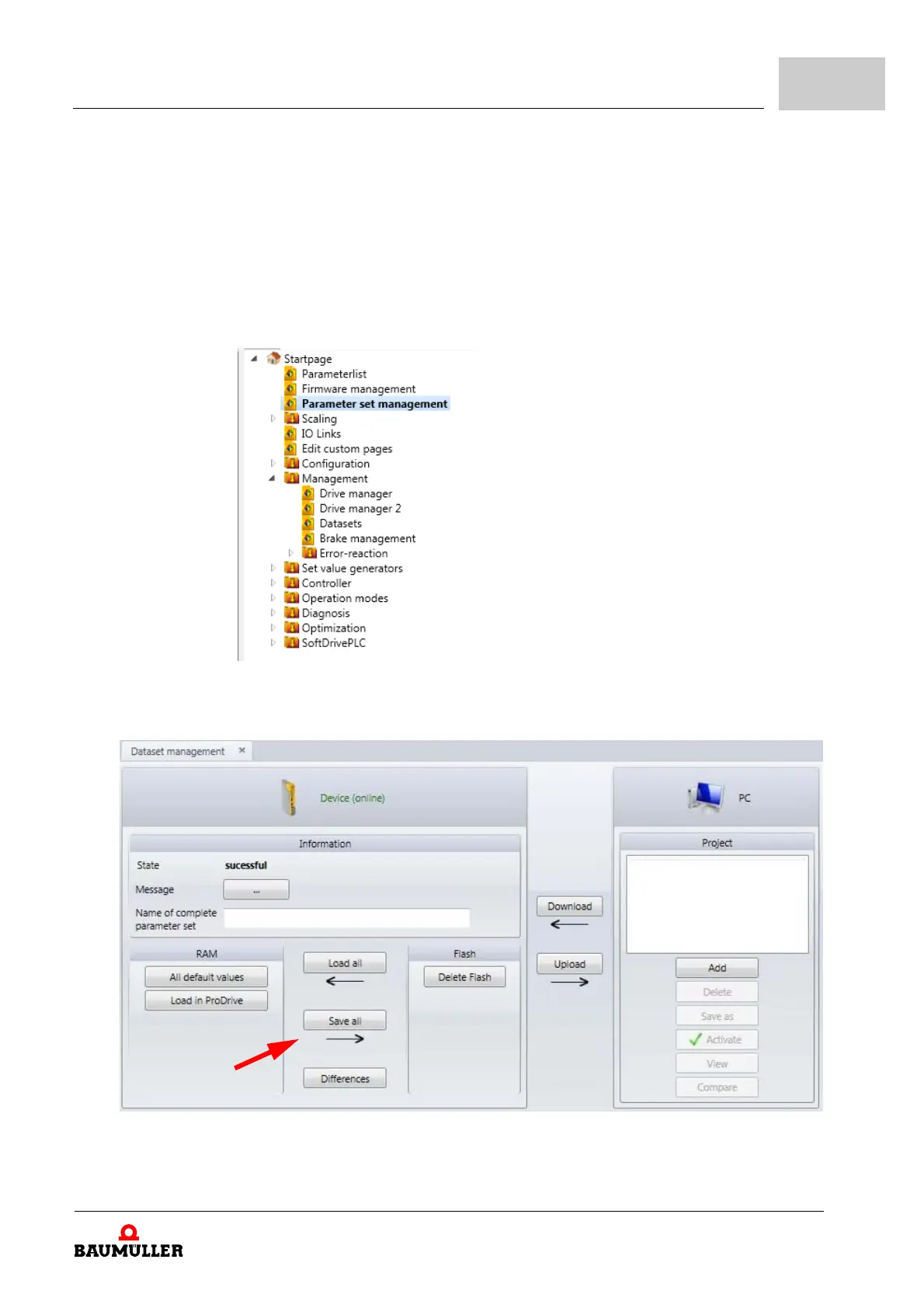

Figure 22: ProDrive Navigation Dataset management
26 Click on the "Save all" button in the Dataset management.
Figure 23: ProDrive: Dataset management
