Baumuller b maXX BM3000 - Factor Group Effect of the Speed and Acceleration Weighting

Description of the Software Modules and Parameters
Parameter manual b maXX BM3000
Document no.: 5.12001.07
321
of 820
4

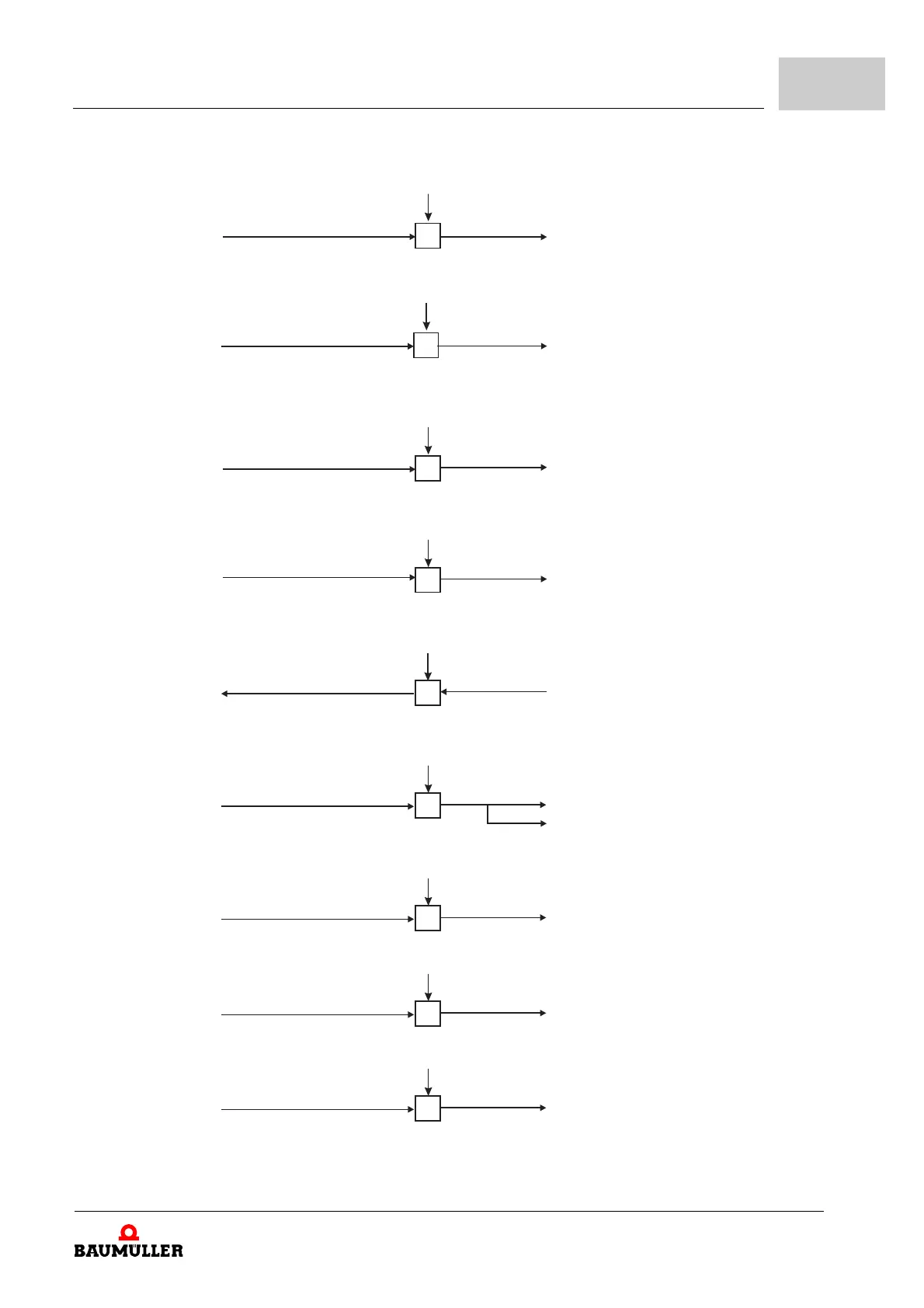

Figure 123: Factor Group effect of the speed and acceleration weighting
X
X
X
X
X
X
X
X
X
Speed weighting unsigned
Positioning speed (P118.11)
Speed weighting unsigned
Homing speed (P120.5)
Profile speed P179.22
(0x6081)
Homing speed search for switch
P179.23
(0x6099.01)
Speed weighting signed
Acceleration weighting
Acceleration weighting
Acceleration weighting
Acceleration weighting
Speed weighting signed
Position weighting signed
Speed additional value (P18.68)
Ramp function generator input 32 bit (P110.4)
x2 speed actual value (P121.4)
Homing acceleration (P120.7)
Homing deceleration (P120.8)
Quick stop time (P110.8)
Positioning deceleration (P118.13)
Positioning acceleration (P118.12)
Speed offset P179.25
(0x6081)
Target speed P179.26
(0x60FF)
Speed actual value P179.21
(0x606C)
Homing acceleration P179.27
(0x6064)
Quick stop deceleration P179.30
(0x6085)
Profile deceleration P179.29
(0x6084)
Profile acceleration P179.28
(0x6083)
