4.4.1.1 ProDrive Power Unit

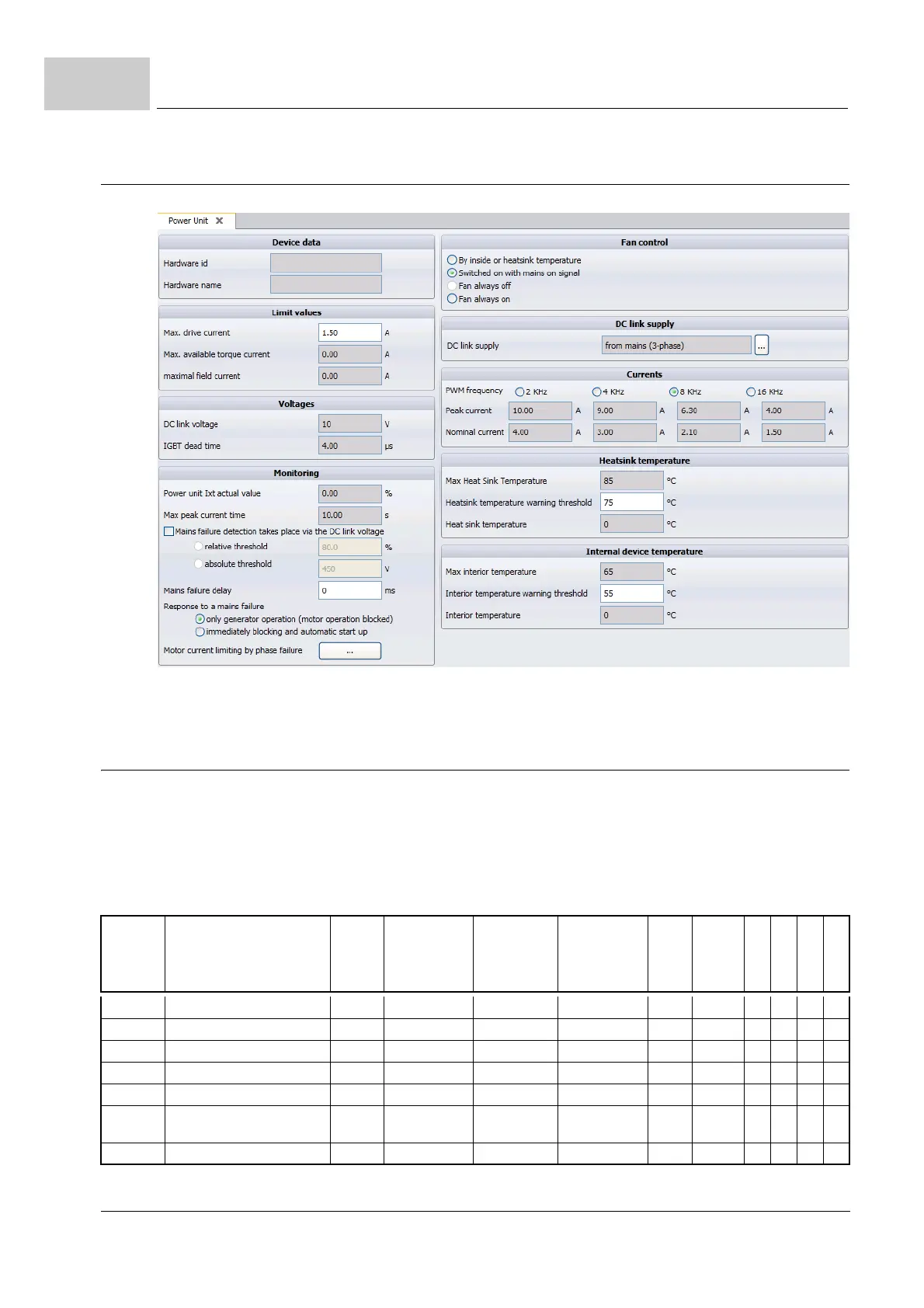

Figure 65: ProDrive Power unit
4.4.1.2 Parameter overview
Functional blocks: FbPsChars [129]
FbPower_Section [130]
FbPuTempModell [175]
For Parameter 6.27 seeZDiagnosis– from page 690
For Parameters 19.6 and 107.9 see ZMotor– from page 111
For Parameters 175.1, 175.2 and 175.15 see ZDiagnosis– from page 690
Number Name Type Min Max Default Value Unit Factor
Read only Storage DS Support Cyclic Write
129.3 Hardware id STRING 1:1
129.4 Hardware name STRING 1:1
129.5 Current scaling gain FLOAT 0 10000 1.1862 1:1
129.6 DC scaling gain FLOAT 0 10000 1.03885 1:1
129.7 Main voltage scaling gain FLOAT 0 10000 0 1:1
129.8 Current converter configura-
tion
UDINT 0 0xFFFFFFFF 0 1:1
129.9 IGBT dead time FLOAT 2.0 10.0 4.0 µs 1:1
