Performing the commissioning
Parameter manual b maXX BM3000
Document no.: 5.12001.07 Baumüller Nürnberg GmbH
58
of 820
3.6
3.6 Performing the commissioning
Begin the commissioning after you have completed the preparations.
1 Connect the power supplies to the b maXX
®
(main power supply + control voltage).
The device then starts up and indicates that it is ready for operation by lighting the
orange 'Power ON' LED H12.
m LED H12 must light up orange; this signifies Power ON and the device is ready for
operation.
m LED H12 must not light up green: when LED H12 lights up green, it means "Opera-
tion enabled"! The motor is supplied with current and can rotate! Override this im-
mediately with the pulse enable switching element!
m LED H13; a red LED means that the current limit has been reached. Reduce the
loading on the motor. Continue with the parameter setting.
m LED H14; a red LED indicates a error condition. Rectify the error later using the
ProDrive operating program. Continue with the parameter setting.
2 Establish communication as described in ZPreparations– on page 48.
3 Start the ProDrive program (if it is not already running).
4 Then click on auf "Drive Manager" in ProDrive

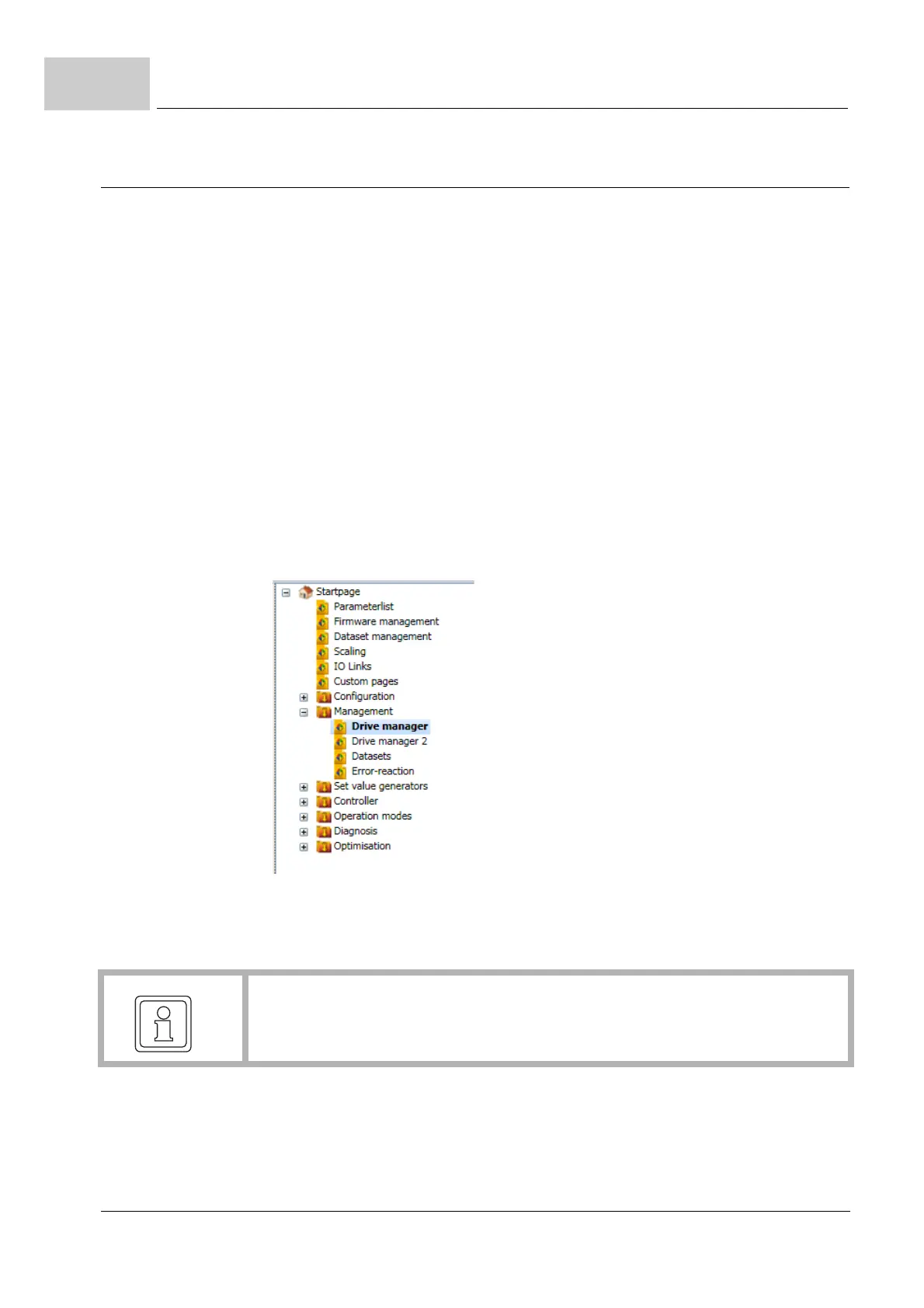

Figure 41: ProDrive: Navigation Drive manager
Acknowledging
warnings/errors
5 "Acknowledge" any warnings/errors that may be present in the "Drive manager" win-
dow (press the "Reset errors" button several times if necessary).
NOTE
Any queued error messages may result from the as yet incomplete parameter setting.
These errors cannot be acknowledged.
