Performing the commissioning
Parameter manual b maXX BM3000
Document no.: 5.12001.07 Baumüller Nürnberg GmbH
30
of 820
2.7
Setting encoder
parameters
The parameters for the encoder still have to be entered.
8 Go back to the navigation.
9 Click on „Scaling“

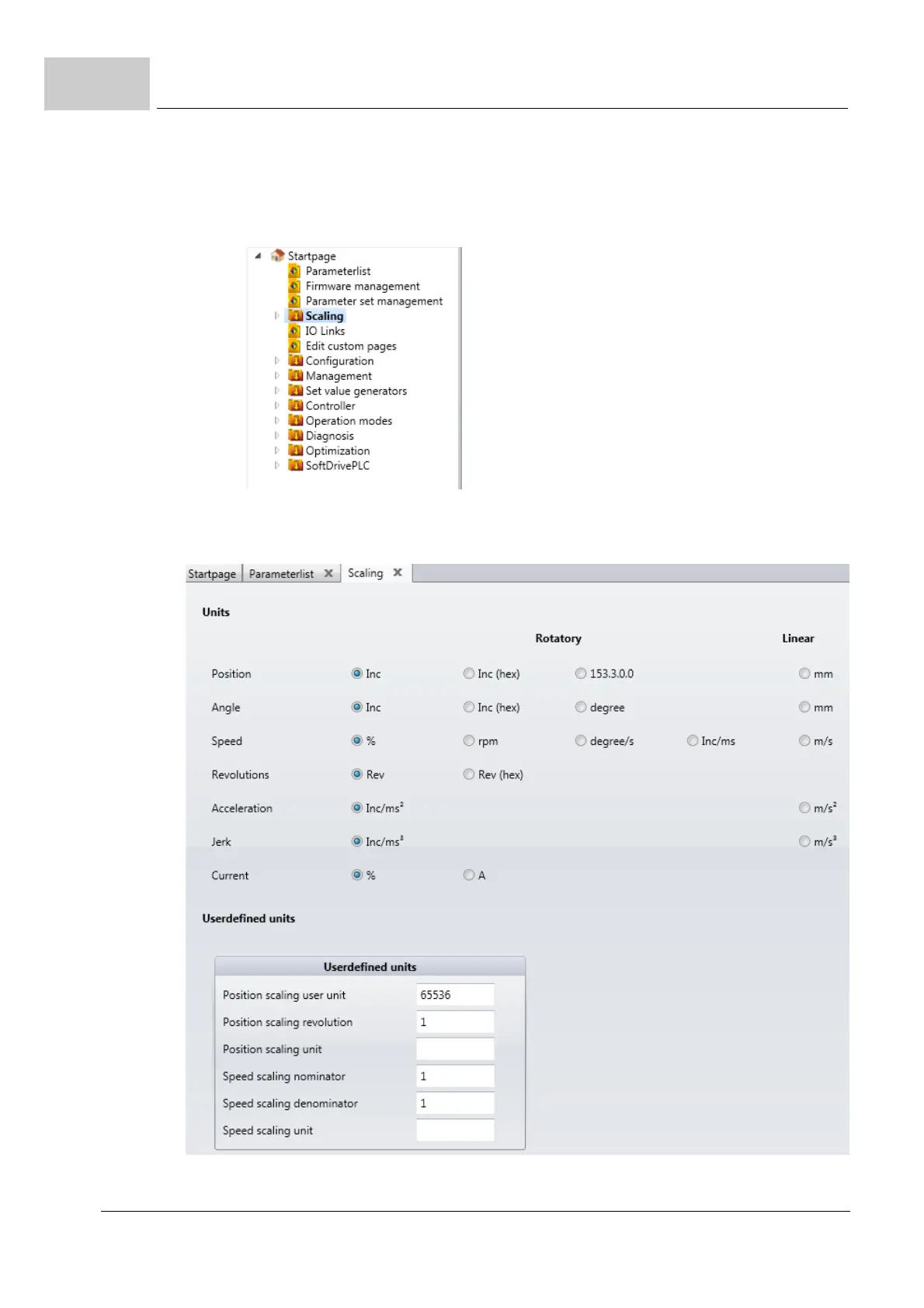

Figure 12: ProDrive: Navigation Scaling
The „Scaling“ window opens:
Figure 13: ProDrive: Scaling
