Performing the commissioning
Parameter manual b maXX BM3000
Document no.: 5.12001.07 Baumüller Nürnberg GmbH
34
of 820
2.7

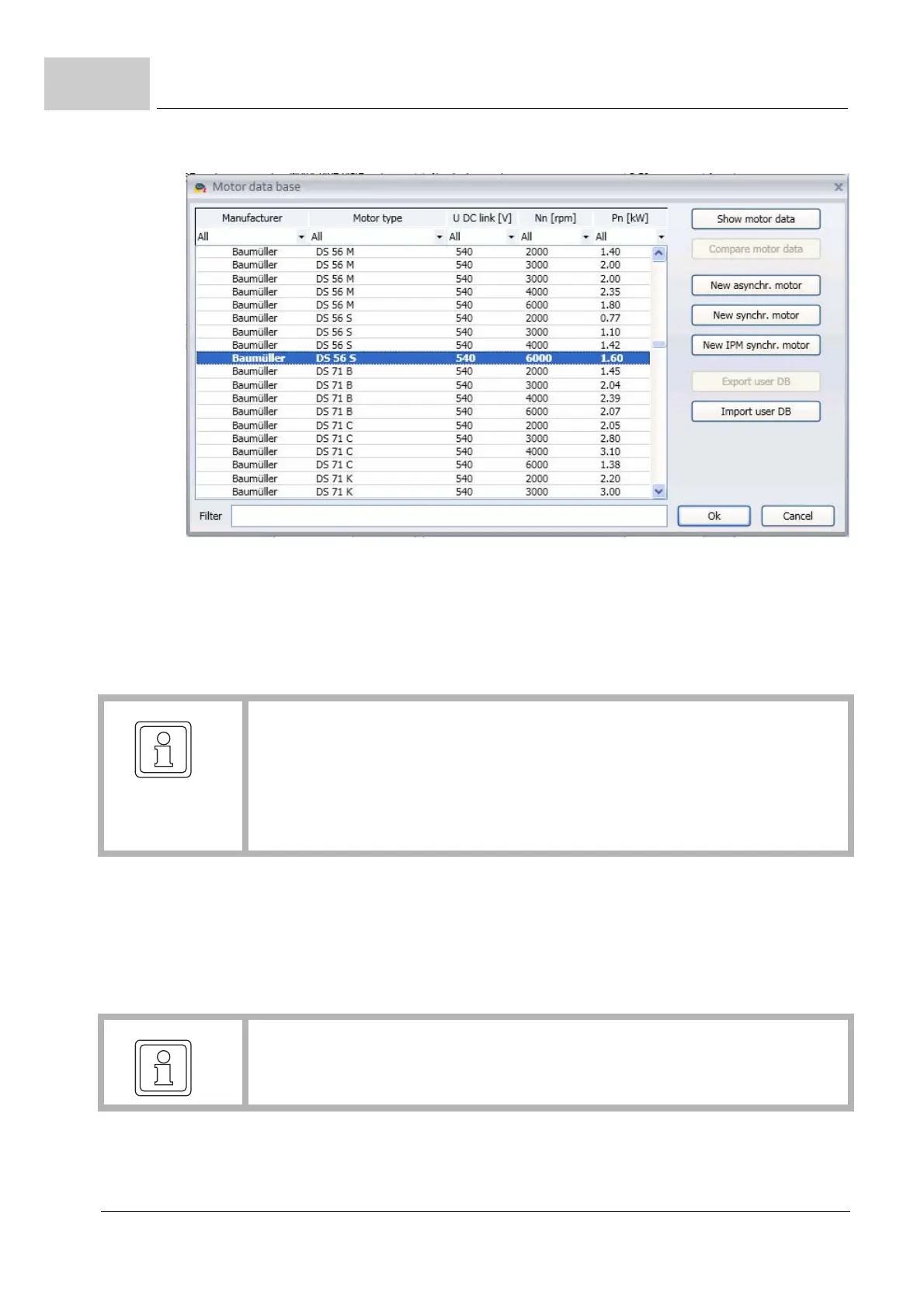

Figure 18: ProDrive: Selecting the motor
18 Select the synchron motor "DS 56-S" with the following parameter in this window:
m the nominal voltage for the motor DC link: "540 V"
m the nominal speed: "6000 rpm"
m the maximum speed is automatically taken from the value for the nominal speed
19 Click on the OK button.
At this point all the data will be transferred from the motor database to the corresponding
parameters and display fields.
20 Check all the values for the motor using the motor data sheets (This is only for check-
ing purposes if you are using the Baumüller motor database. If you are employing mo-
tors from third-party manufacturers, you must do this in any case).
NOTE
The values for nominal speed and maximum speed are the same for synchronous
motors and are thus adopted for the maximum speed when selecting the nominal
speed.
With asynchronous motors, the two values must be selected separately. Software for
asynchronous motors: in preparation.
NOTE
If you are using motors from third-party manufacturers, you can also include their
data in the motor database.
