Commissioning BM25xx
Parameter manual b maXX BM3000
Document no.: 5.12001.07
41
of 820
2
The "Drive Manager" window will also appear

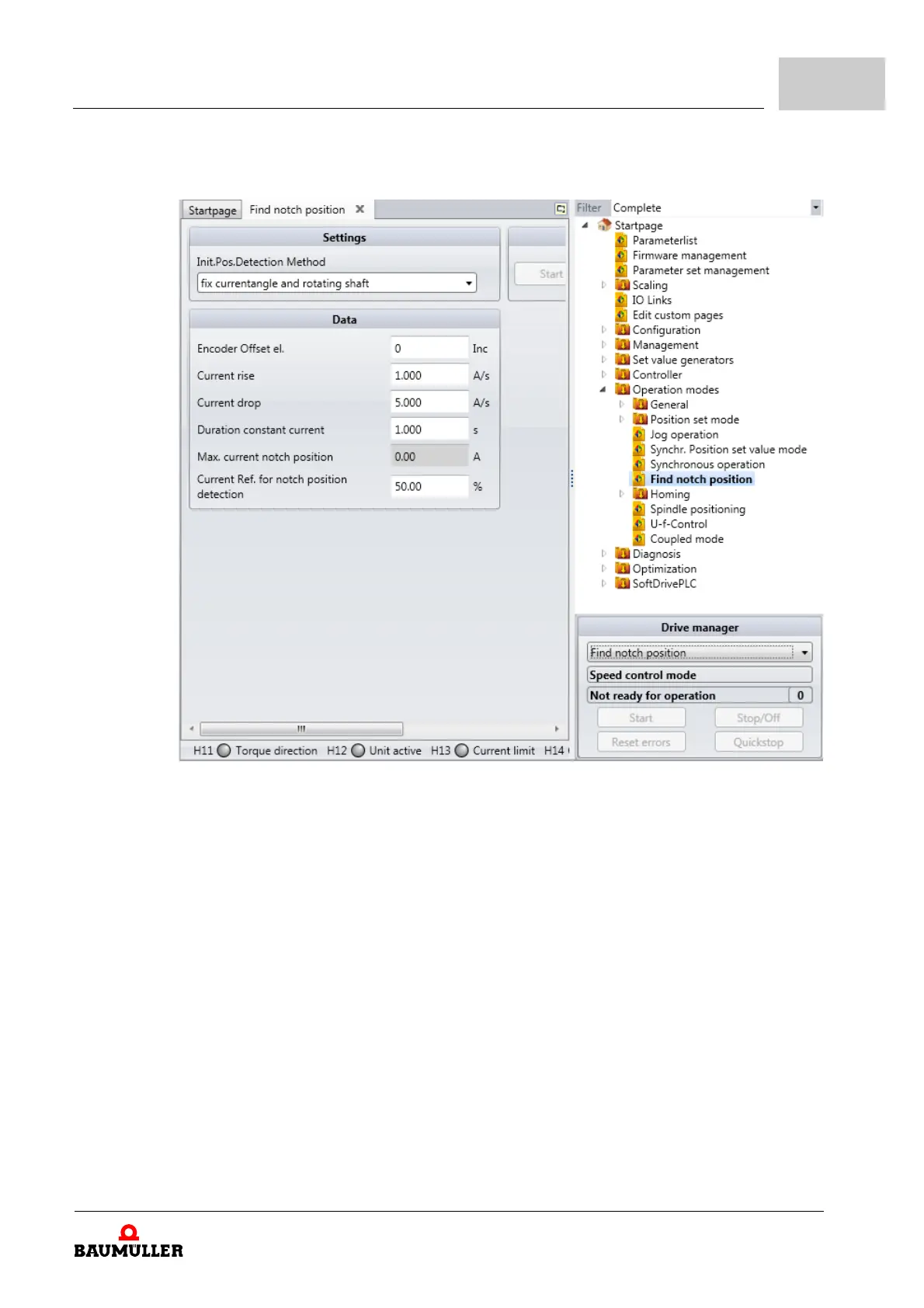

Figure 27: ProDrive: Find notch position, Drive manager
37 For the method, select "fix current angle and rotating shaft".
38 Select "Find notch position" in the Drive Manager-Axis 1 window.
