Operating Modes
Parameter manual b maXX BM3000
Document no.: 5.12001.07 Baumüller Nürnberg GmbH
608
of 820
4.8
Possible speed profiles after the reversing switch to the Operation mode spindle
positioning
Speed set value > spindle position speed

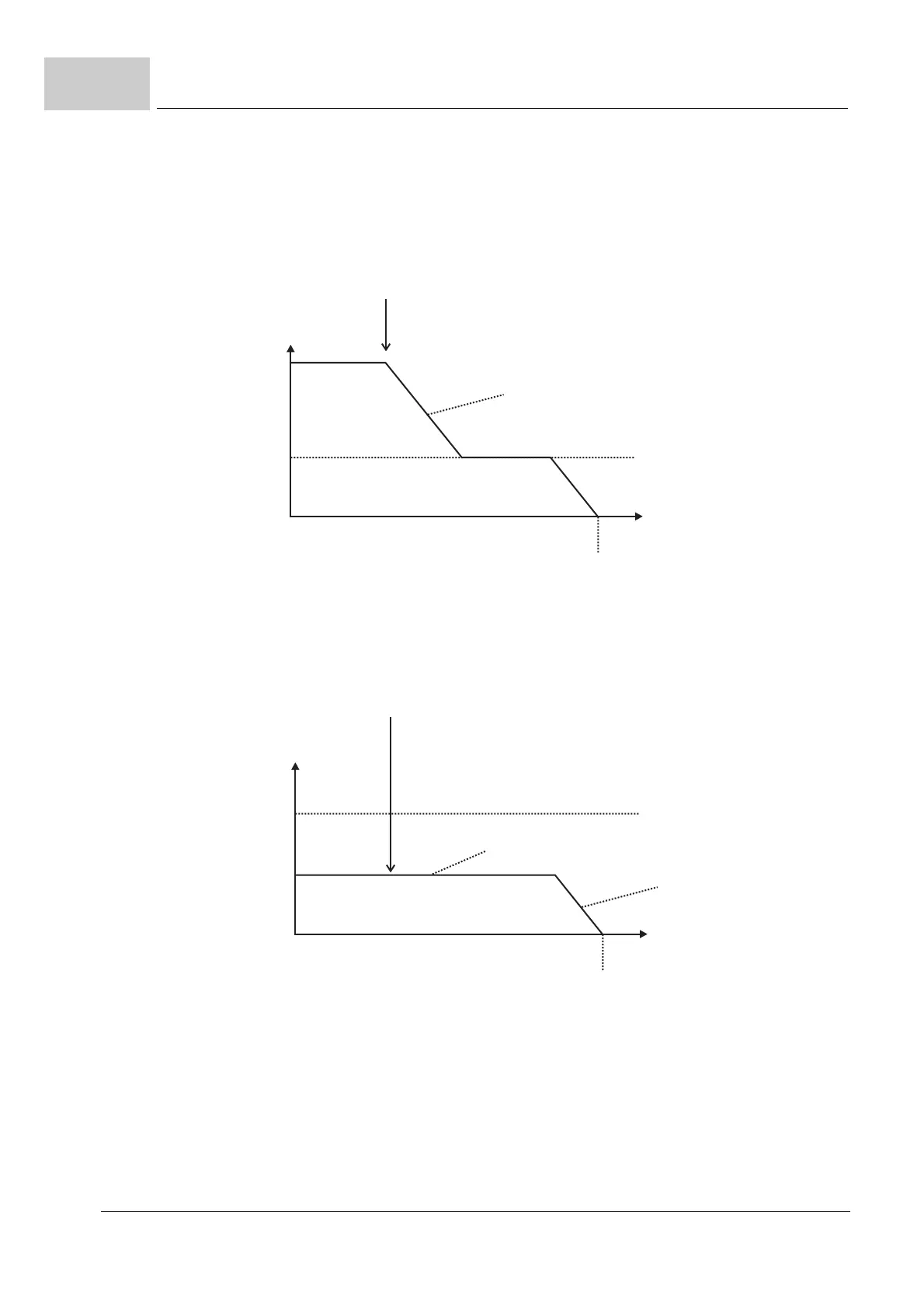

Figure 202: Speed profile Speed set value > spindle position speed
Speed actual value <= spindle position speed
Figure 203: Speed profile Speed actual value <= spindle position speed
t
n
Switched to
operating mode -6 spindle positioning
Slow down with spindle acceleration bipolar
Spindle positioning speed
Setpoint value stands at target position
t
n
5000_0176_rev01_int.cdr
Switched to
operating mode -6 spindle positioning
Speed setpoint value will be kept
Spindle positioning speed
Setpoint value stands at target position
Slow down with
spindle acceleration bipolar
