Performing the commissioning
Parameter manual b maXX BM3000
Document no.: 5.12001.07 Baumüller Nürnberg GmbH
76
of 820
3.6
50 Select the "Speed control mode“ from the scroll list in the Drive Manager dialog.
51 Switch the pulse enabling to the active state.
52 Click on the "Start" button in the Drive Manager dialog.
53 The motor should now rotate at 10% of the maximum speed.
54 Click on the "Stop/Off" button in the Drive manager dialog.
55 The motor will then stop.
56 Switch the pulse enabling off.
Saving the data
set
This data set should now be saved.
57 Click on the "Dataset management" icon in the icon bar.
58 Click on the "Save All" button in the Dataset management.

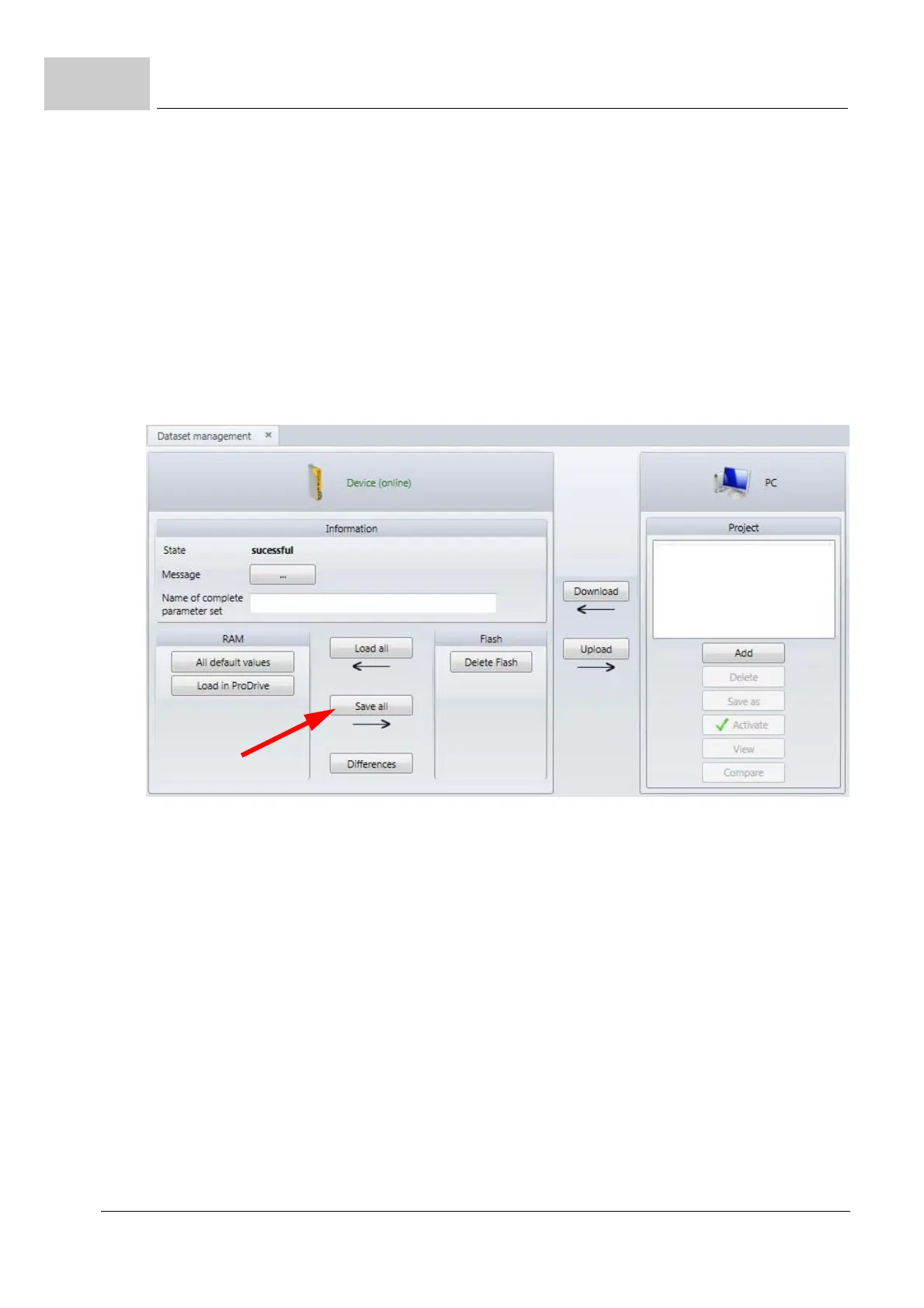

Figure 64: ProDrive: Dataset management
59 Wait until "OK" is displayed under "Data Set State"
At this point the data set is saved in Flash memory.
Switching off the
drive
To conclude the commissioning, the drive is switched off.
60 Disconnect the device from the main power supply and the control voltage using the
appropriate switching elements.
This successfully completes the commissioning for Axis 1.
