Chapter 4 Frame and Carriage Assembly
Mounting the Cylinders to the Entrance Arms
1) Locate the Entrance Arm Cylinder Assembly housed inside of the side-pod
Remove the shoulder bolt, flat washer, two 1/2” plastic washers and the lock-nut from the clevis.

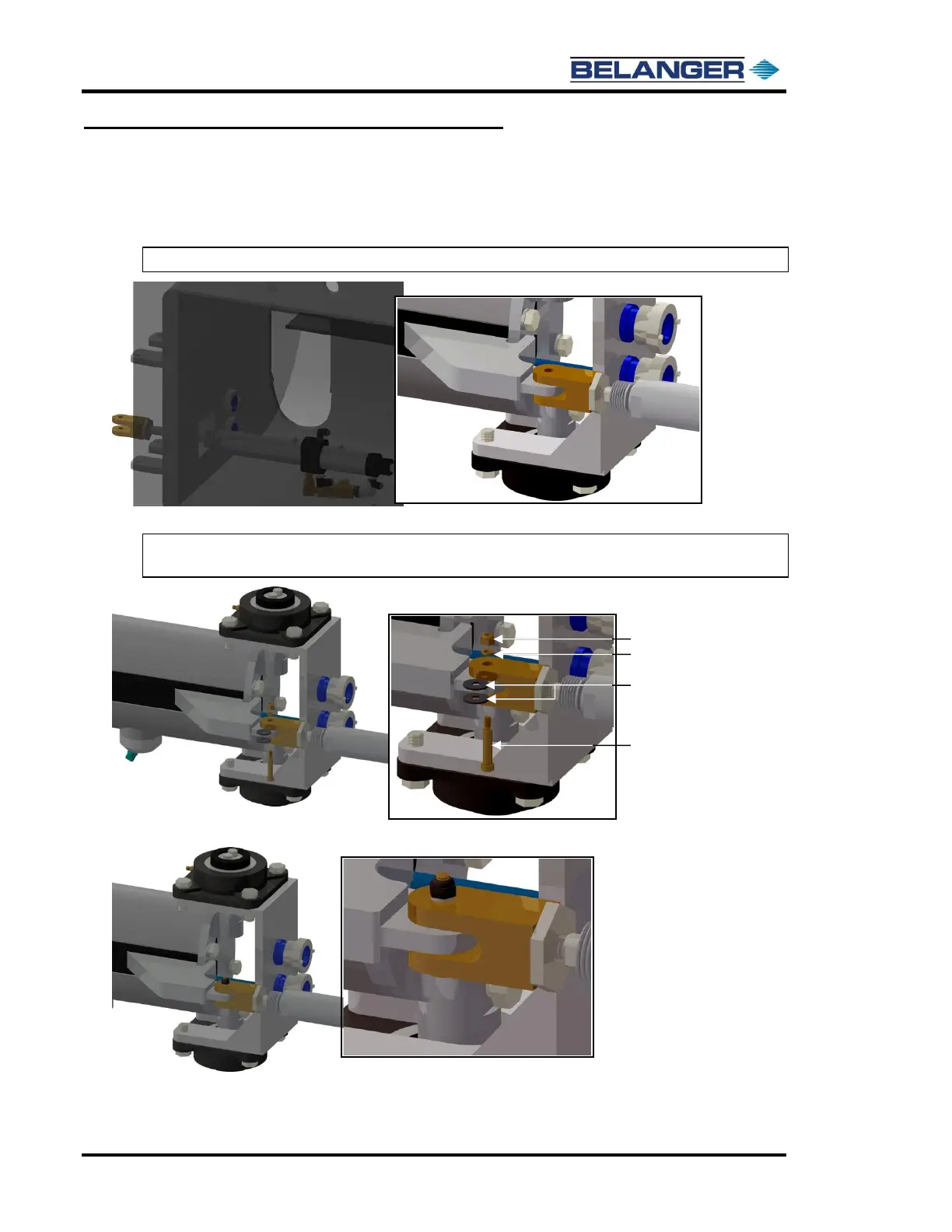

2) Position the Arm Mount onto the Cylinder Clevis as shown below.
Note: Be sure to align the Cylinder Clevis on the tab of the Entrance Arm. See the image below.
3) Secure the cylinder using the removed fasteners.
Note: Be sure the threads of the shoulder bolt are facing up and the white plastic washers are in
place. See the image below.
4) When completed, the assembly should appear as shown below.
5) Repeat Steps 1 to 4 for the entrance arm cylinder in the other side pod.
