INSTALLATION AND STARTUP
14-12 Belanger, Inc. ®* PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220
Chapter 14 HydroBlade® Assembly Option

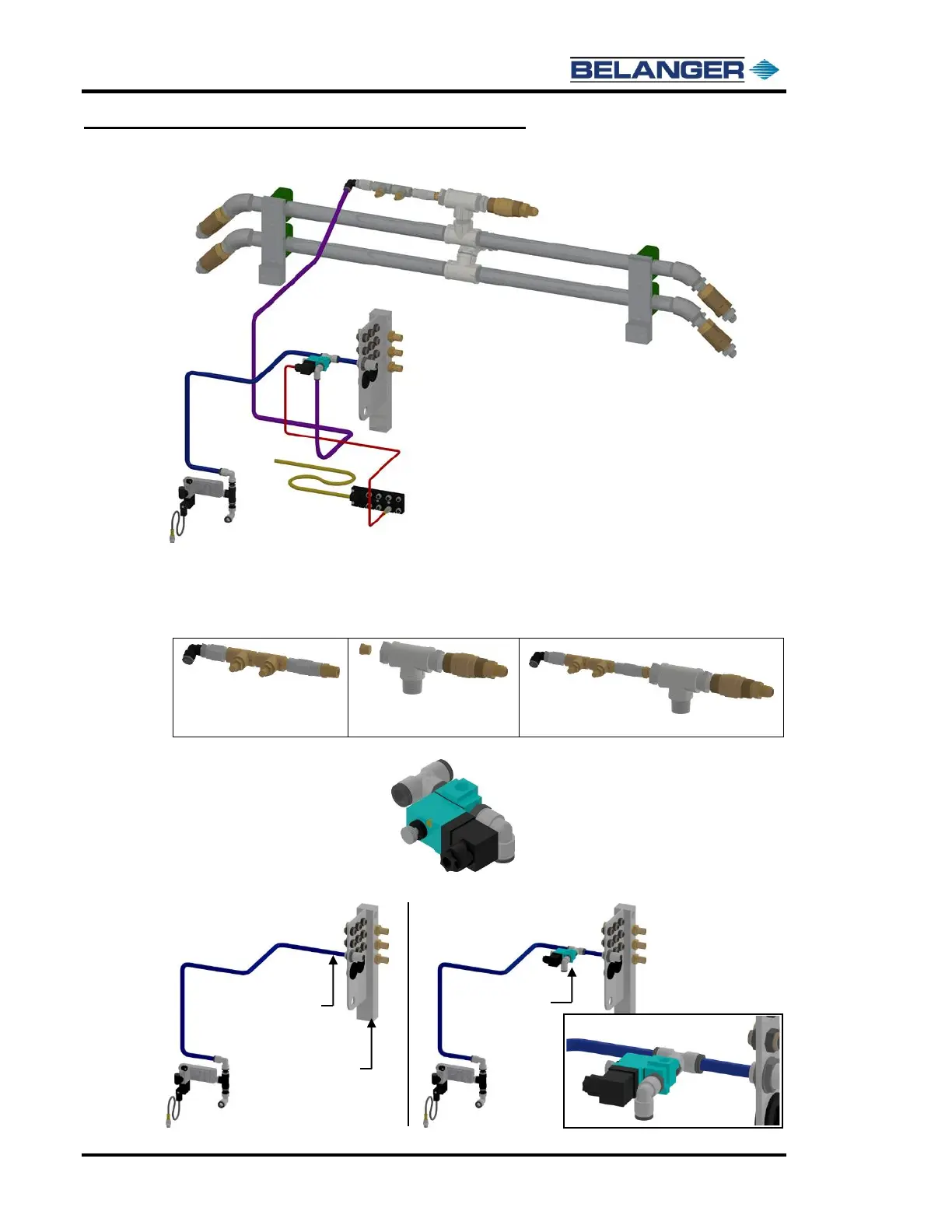

HydroBlade® Purge Air Assembly – Circuit Overview
HydroBlade® Purge Air Assembly – Installation
1) Turn off all power supply to the FreeStyler® to avoid any accidents.
2) In the Accessory Box locate the HydroBlade® Low Pressure Feed Kit and install it as shown below.
HydroBlade® Low Pressure
Feed Kit
Remove the Brass Plug
Install the Assembly into place
3) Locate the supplied MAC Valve assembly shown below.
4) Cut the airline at 2” from the bulkhead and insert the MAC Valve Assembly as shown.
Cut the airline
here at 2” from
the bulkhead
Insert MAC
Valve Assembly
Bulkhead
