Chapter 4 Frame and Carriage Assembly
Determining Driver Side / Passenger Side Equipment Room
The FreeStyler® is shipped with the machine wired and plumbed for a driver side equipment
room/boom location. If your site has a passenger side equipment room/boom location, then the utilities
will need to be relocated to the other side of the FreeStyler® carriage. You will also need to turn the
hydraulic fittings on the optional HydroBlade® center feed manifold and the optional Wheel Cleaner
center feed manifold so that they will face toward the Driver side.
Unless stated otherwise, all instructions and images are written to reflect a Driver side Equipment
Room.
Each time there is a decision to be made based on the Equipment Room location, the following symbol
will appear:
Boom Install Orientation
If your machine has a Driver side equipment room, then move on to “Installing the Boom Mount”.
If the machine has a Passenger side equipment room, then follow the steps below to reconfigure the machine for a
Passenger side equipment room orientation.

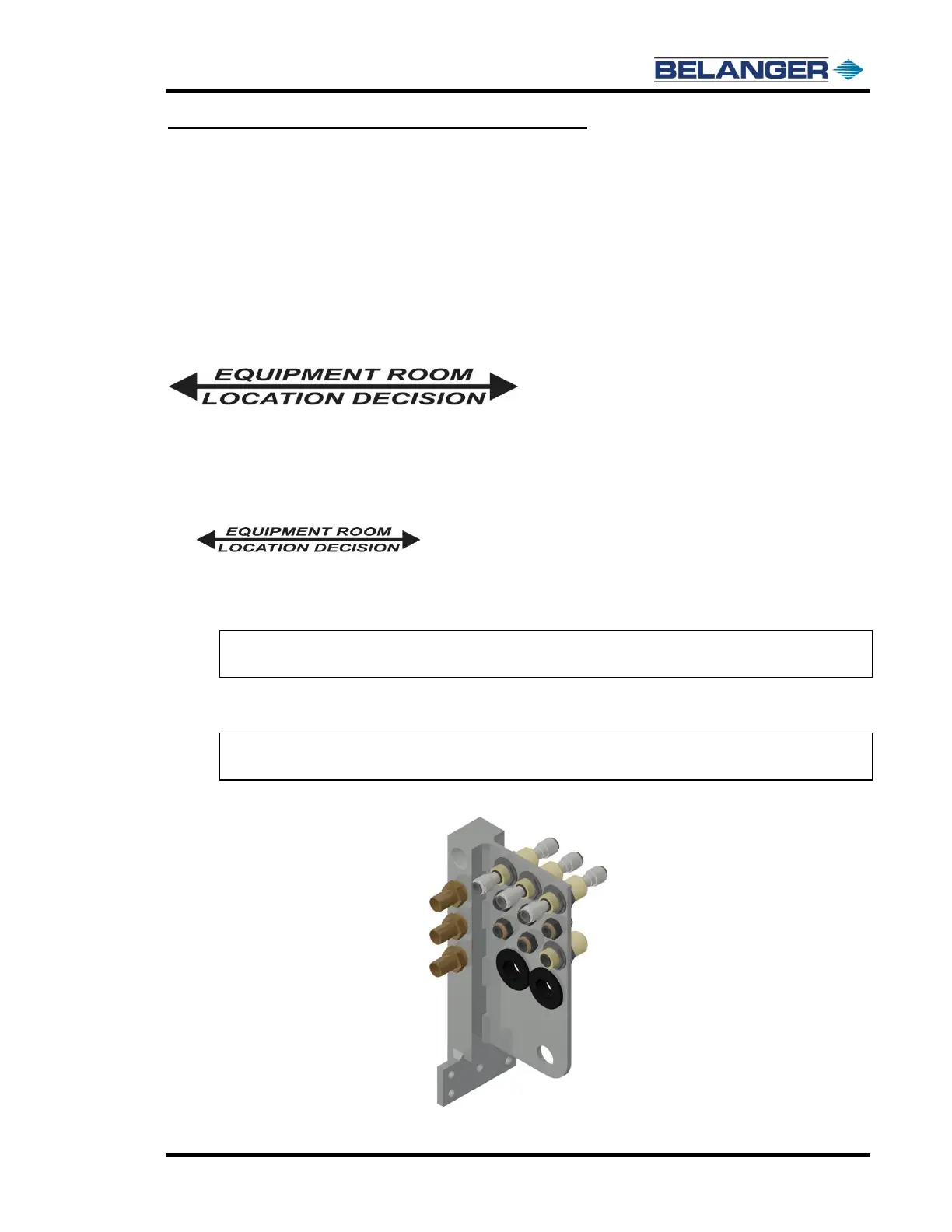

On the machine there is a Bulkhead Mount Block (shown below) located on the center/exit side
of the carriage. It will be necessary to unhook all the utility lines that are plumbed into this block
from the Bulkhead, and then run the lines into the opposite side of the Bulkhead Mount Block.
Note: Performing this process one line at a time helps to ensure that the lines are
hooked back up properly.
It will also be necessary to re-loop the lines inside the utility covers to achieve a proper bend in
the line.
Note: These processes are necessary for all the poly-flow lines as well as the blue
water hose lines.
Be sure all lines are pressed in tight, and all clamps are tight.
