Chapter 14 HydroBlade® Assembly Option
HydroBlade® Rinse / Sealer Wax Assembly
Installation
1) Turn off all power supply to the FreeStyler® to avoid any accidents.
2) Open the exit side utility cover.
Note: Located at the center of the carriage is the Universal Manifold. One of the Asco™ Valves on
that manifold feeds the rinse water to the other side of the manifold. NO ACTION is needed
for this water line.

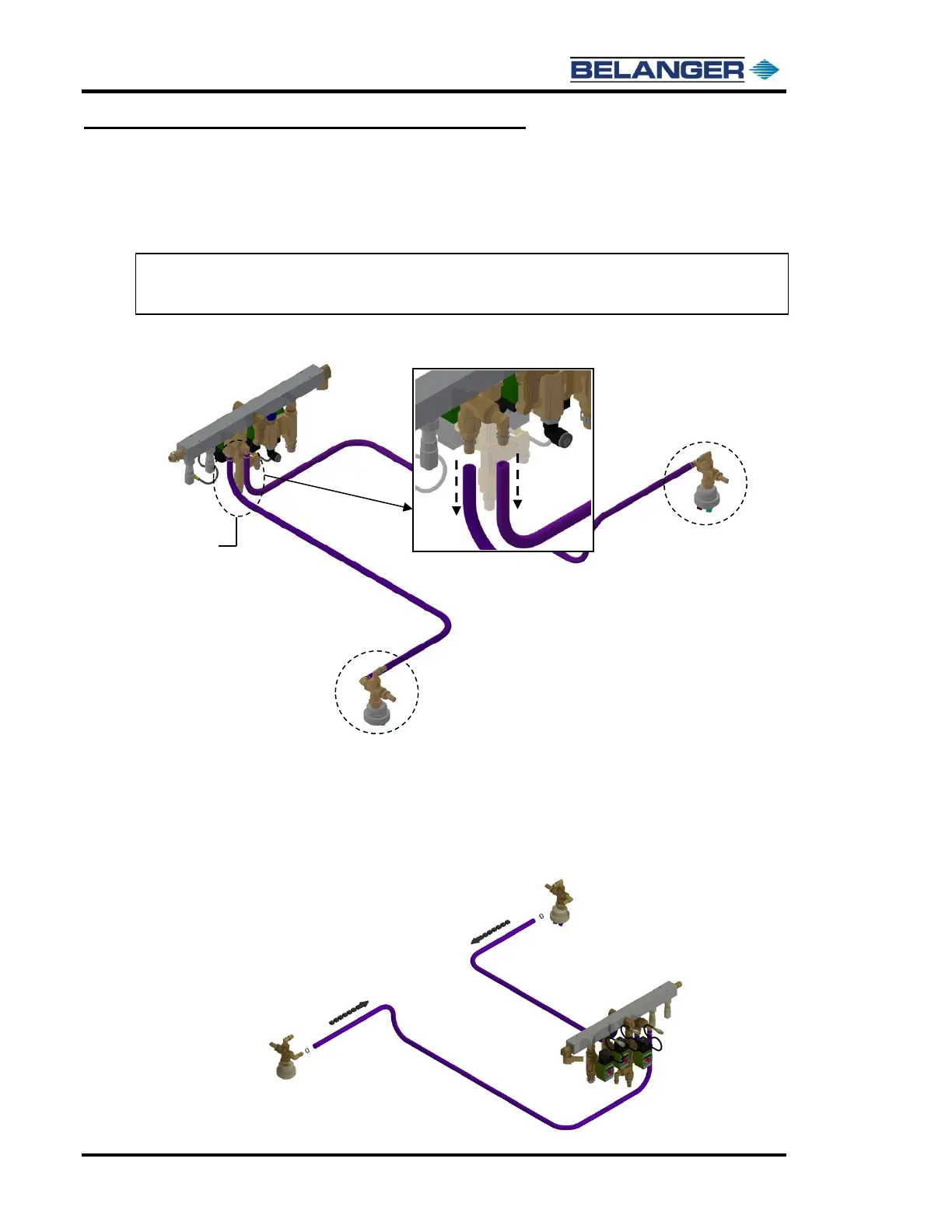

3) Remove both of the 1/2” blue water hoses shown below. They each run between a side pod of the machine
to the hose barbs located on the Brass Tee that is located in the Universal Manifold. See the image below.
4) Open the Passenger side pod cover and locate the brass cross assembly that is near the exit side of the
machine. See the image above in Step 3.
5) Remove the other half of the 1/2" blue water hose that was removed in Step 3. It is located in the brass
elbow that is on the exit side of the brass cross as shown below.
Replace the brass elbow in the cross with a field supplied 1/2” plug.
Shut the pod cover door when complete.
6) Repeat Steps 4 and 5 for the Driver side of the machine.
