Chapter 20 Electrical
E-1063 Operator Interface
The operator interface should be mounted an area out of direct sun light. This panel is sealed
against water intrusion, which means it does not breathe very well.
We recommend mounting this unit within sight of the entire wash but away from exposure to
water i.e., Rocker Spin Cleans or Side Blasters. The Exit end of the wash is a safe zone although
that location makes it difficult to manually load vehicles from the operator interface. The best-
case scenario would be to mount it behind glass at the entrance of the bay.
NOTE TO ELECTRICIANS AND ARCHITECTS
The communication cable for the E-1063 is a 6-condutor shielded cable. Only connect
shield to ground in the SCC. Do not connect shield anywhere in the E-1063 enclosure.

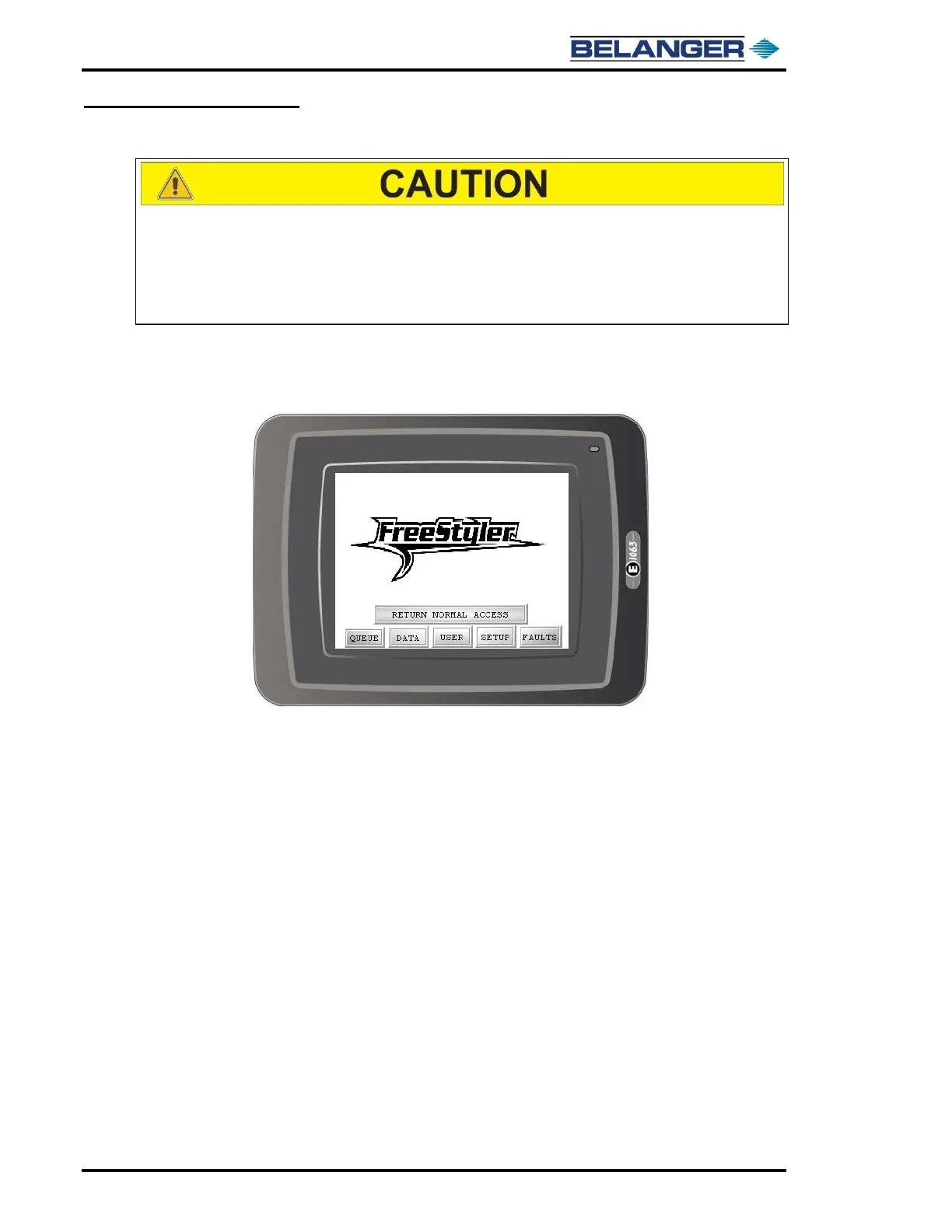

The above image reflects the E-1063 HMI (Human Machine Interface) Home Screen
REFER TO YOUR SUPPLIED ELECTRICAL PRINTS, AND SITE-
SPECIFIC DRAWINGS FOR INSTALLATION DETAILS
