INSTALLATION AND STARTUP
22-16 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220
Chapter 22 Initial Startup
Installing the Triple Foam Pods
Connecting the Airlines and Chemical Lines
Locate the supplied six stranded colored airline.
Note: The colors are in order as follows, green, blue, red, yellow, orange, and purple. See
the images below.
Starting from the side of the manifold that has the push in fitting in the end, connect the lines in order starting with green.
Verify that the color scheme is the same on both sides.
See the image below.

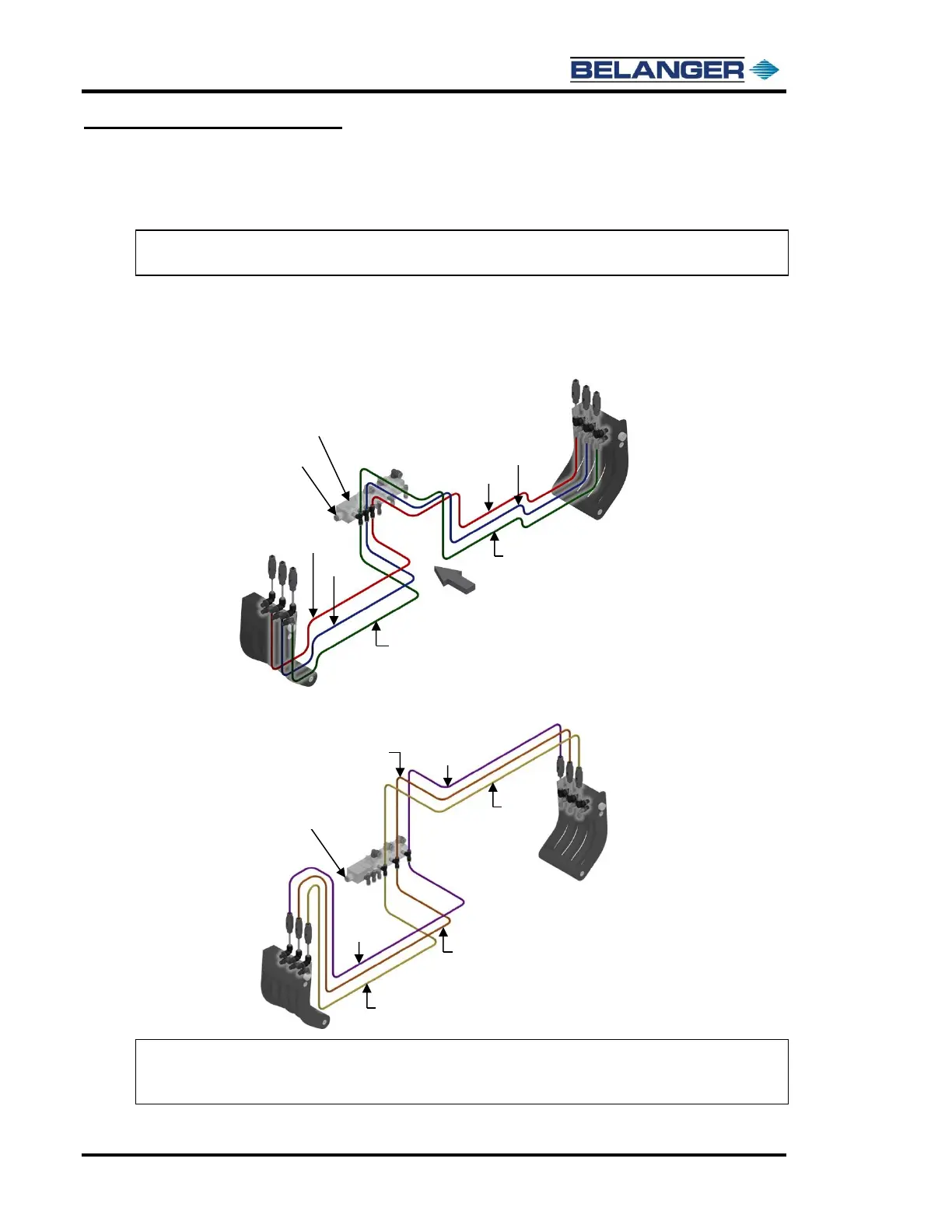

Triple Foam Airline Routing
Triple Foam Chemical Routing
Note: The length of airline that runs to the driver side MUST equal the length run to the
passenger side. Then the stream to each side will be equalized, creating even
coverage during operation.
