Belanger FreeStyler - Machine Control Center (MCC) Panel

INSTALLATION AND STARTUP
20-6 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220
Chapter 20 Electrical
Machine Control Center (MCC) Panel
DO NOT punch ANY holes in the top of the enclosure. It may allow
moisture to leak inside. Doing so voids all warranties.
NOTE TO ELECTRICIANS AND ARCHITECTS
The conduit schedule indicates that separation of 3 Phase and all other wires MUST be
strictly observed. Please read wiring notes within this chapter. Notes are also referenced
on sheet 11 of the Electrical Prints.

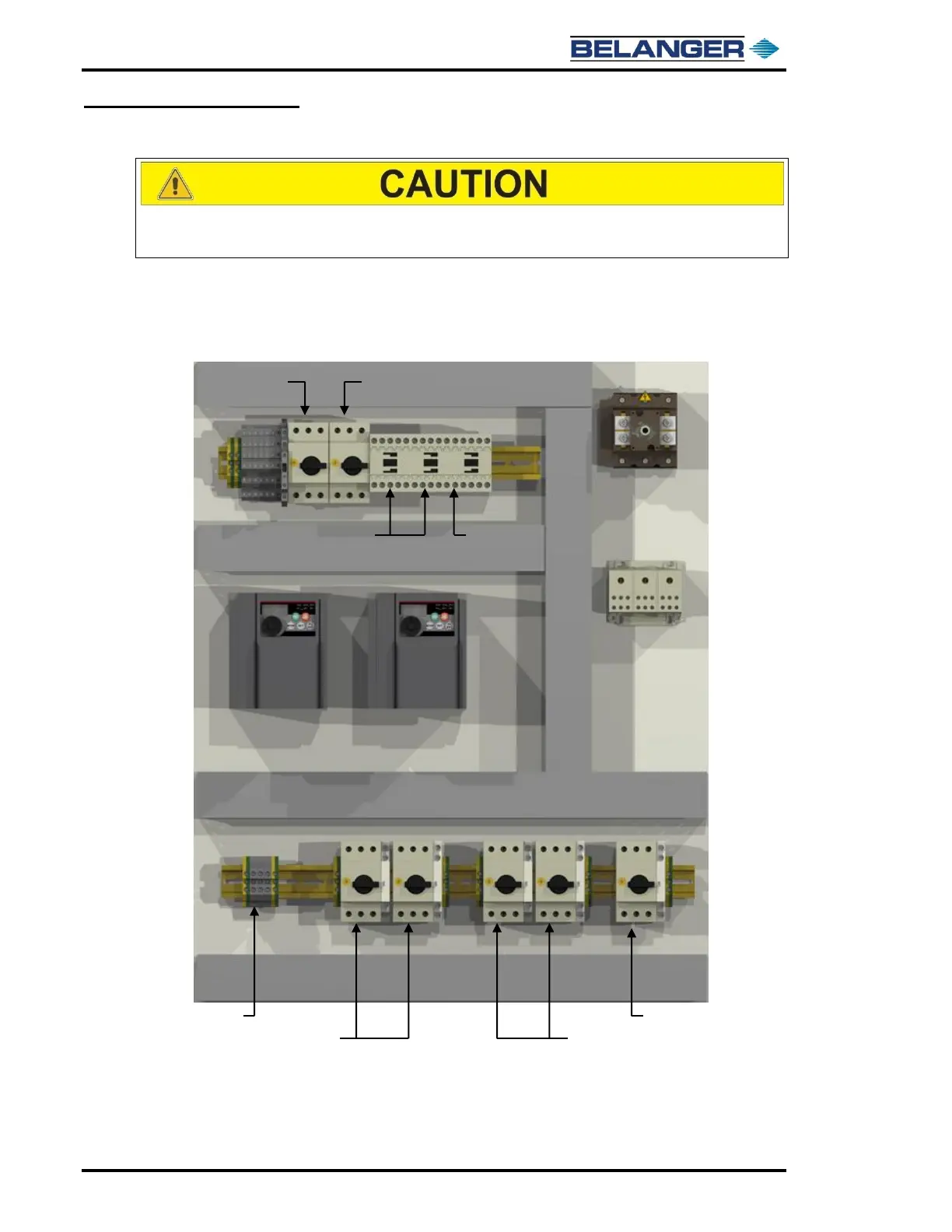

The above image shows the components located inside of the 208 VAC Machine Control Center Enclosure
REFER TO YOUR SUPPLIED ELECTRICAL PRINTS, AND SITE-
SPECIFIC DRAWINGS FOR INSTALLATION DETAILS
Drive 2 Circuit Breaker
Exit Wheels Motor Starters
Drive 1:
Carriage
Drive 2:
Enter
Wheels
Distribution
Block
Enter Wheels Motor Protectors
Drive 1 Circuit Breaker
Main
Disconnect
Exit Wheels Motor Protectors
Top Wheel Motor
Protector
Carriage Motor Terminal
Top Wheel Motor Starters
