Chapter 6 Treadle Assembly
Positioning: 4-Legged Frame

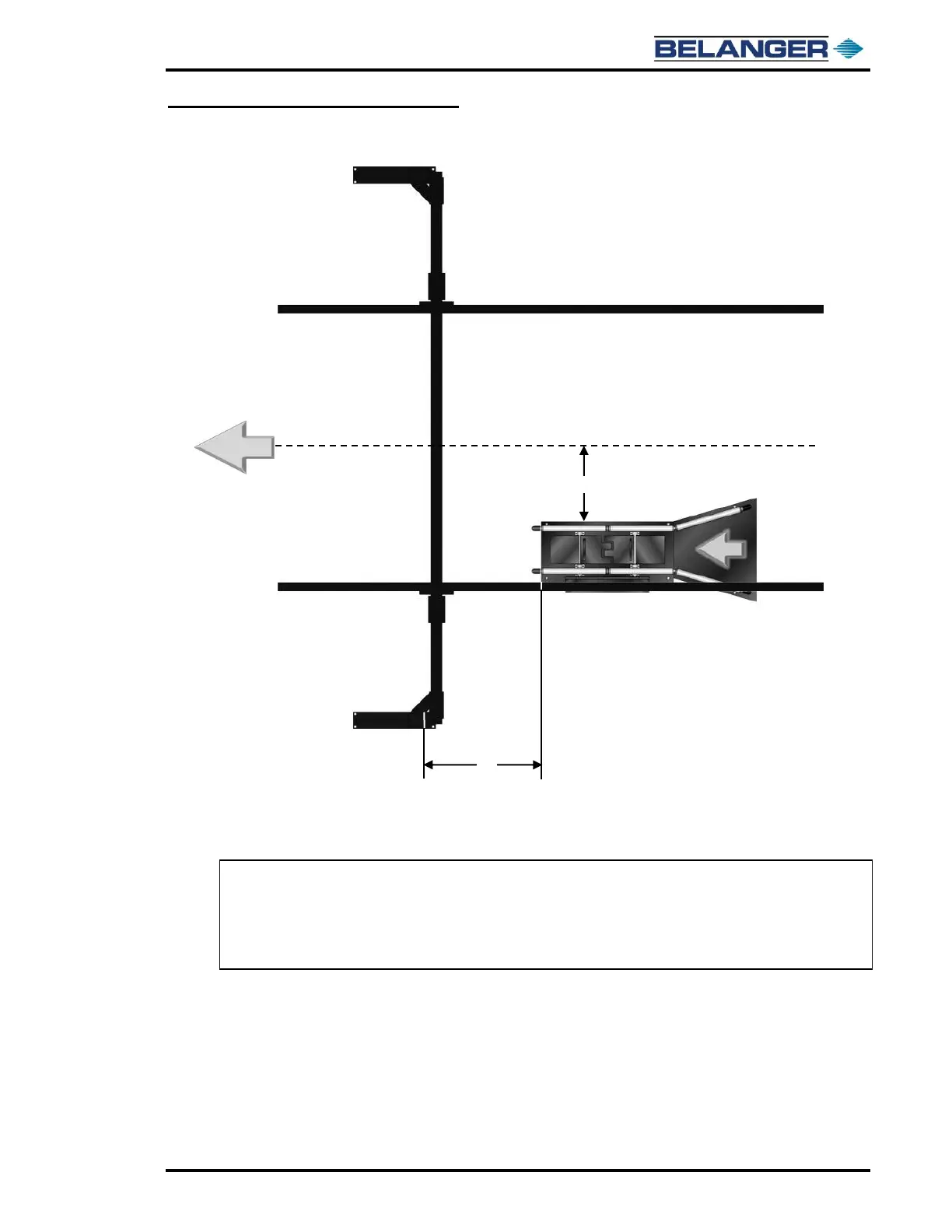

Overhead View
Short Bay Configuration Notes
Note: In very short bays, the 9” dimension above can be reduced to a minimum of 4”. This
adjustment will not allow complete rinsing of vehicles with long front ends.
Note: Since the vehicle is 5” closer to the exit, the Top Wheel will travel 5” further toward the exit.
This difference can prevent the entrance wheels from getting pinched between long vehicles
and any other obstruction such as overhead door rails.
The 9” dimension
is taken from the
entrance edge of
the exit leg to the
exit edge of the
Treadle
Direction
of Travel
Centerline of doorway
and head beam
24”
9”
If your system has been
“De-Stroked” the 24”
dimension will be
changed to 20”
