INSTALLATION AND STARTUP
1MANUL220 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 12-1
Chapter 12 Undercarriage Options
Undercarriage Overview

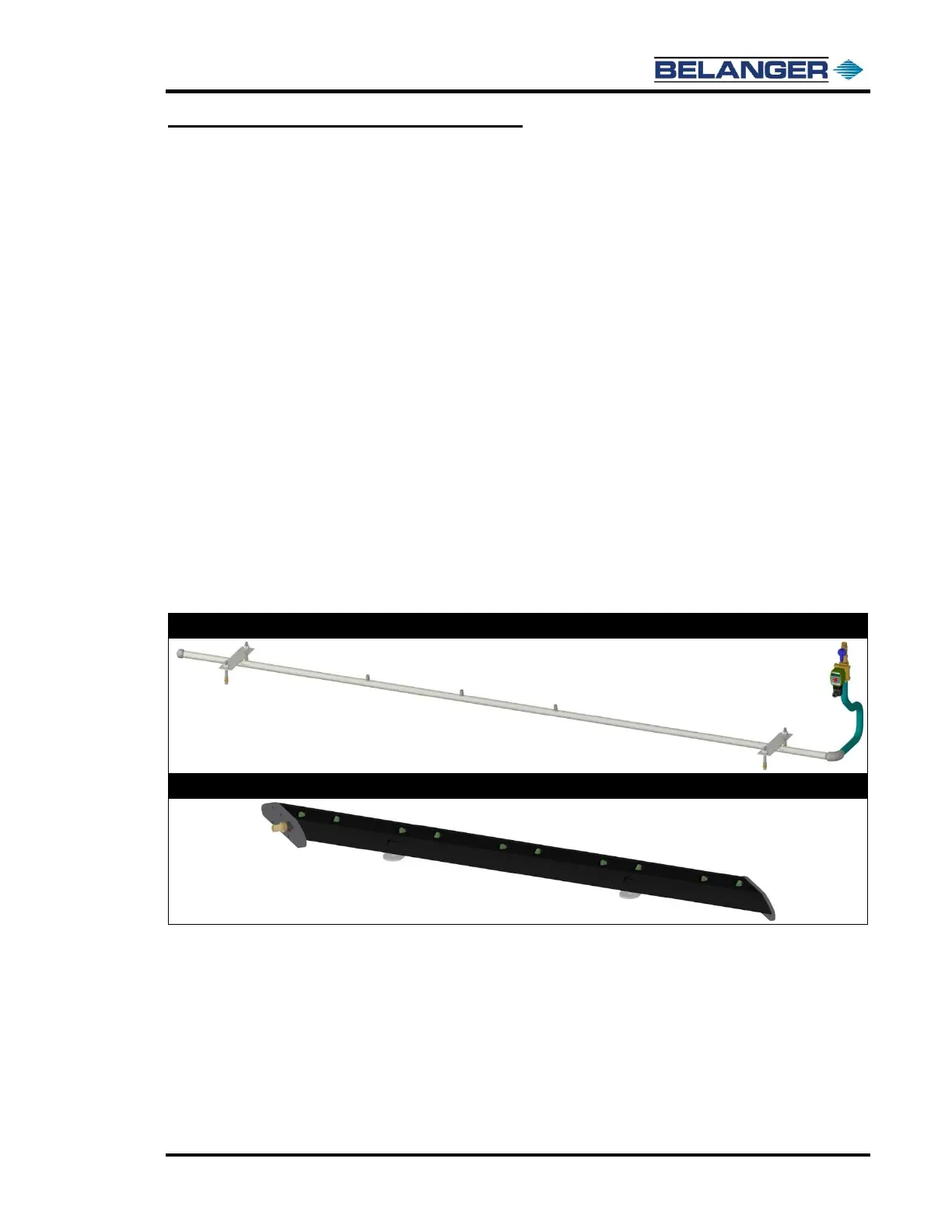

There are two available Undercarriage styles. The Undercarriage can be mounted in-ground or above
ground. Follow the appropriate instructions for the one that suits your location. See the images below.
Both Undercarriage mounting styles include the following parts that must be assembled in the field:
• (1) stainless steel water manifold with 3/4” NPT threads on each side
• (1) undercarriage water valve assembly
• (3) 65° x 2.0 GPM nozzles
• (1) 3/4” stainless barb hose fitting
• (1) 3/4” stainless cap
• (1) 3/4” stainless female elbow
• (2) 3/4” ear clamps for the water line
• (4) Lag bolts to mount it to your floor.
Assembly Notes
• Be sure to tighten the 3/4” stainless elbow and 3/4” barbed hose fitting to the side of the
manifold that also has the utility connections for an easy connection to the water line. Tighten
the 3/4” stainless cap to the opposite end.
• Apply liquid Teflon to all stainless fittings before tightening.
