Chapter 8 MixStir® Options Triple Foam and High-Pressure Wax
High Pressure Wax Option Overview
The Optional Sealer Wax can be ordered either low pressure (by adding another Pulsatron™ chemical
pump) or as a high-pressure wax. The High-Pressure Wax option can be setup and used the
following two ways.
High Pressure Wax Option #1
The high-pressure wax option #1 allows for 2 programmable wax passes.
• One pass involves low-pressure using both arms simultaneously.
• The other pass involves medium pressure using both arms simultaneously.
To set up the high-pressure wax option #1, perform the following:

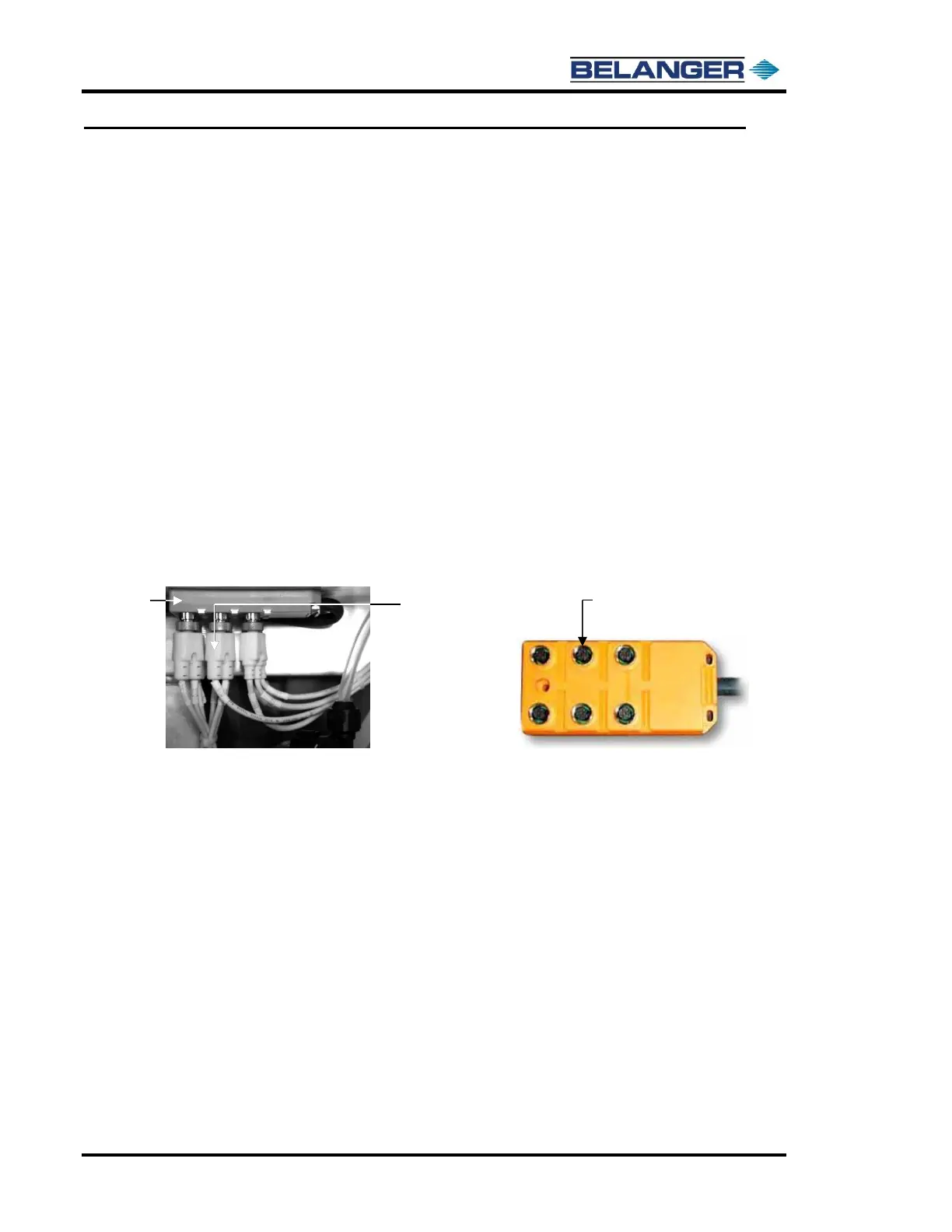

1) For the high-pressure style, connect the wax solenoid cable located on the SDM to the SDM Electrical
Distribution Block. See the image below.
2) At the HMI (E-1063 Human Machine Interface), program a Sealer Wax pass with a pump speed set
between 31-100%.
For packages with low pressure wax, see “Application Configuration” in your Programming
Manual.
For passes with medium pressure wax, use Sealer Wax pass.
In the high-pressure wax option #1 configuration, the Drying Agent uses the Pulsatron™ pump
and Sealer Wax uses the MixStir® tank.
