Belanger FreeStyler - Top Wheel Circuit Overview - Driver Side Pod

INSTALLATION AND STARTUP
1MANUL220 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 21-3
Chapter 21 Pneumatic and Hydraulic Connections

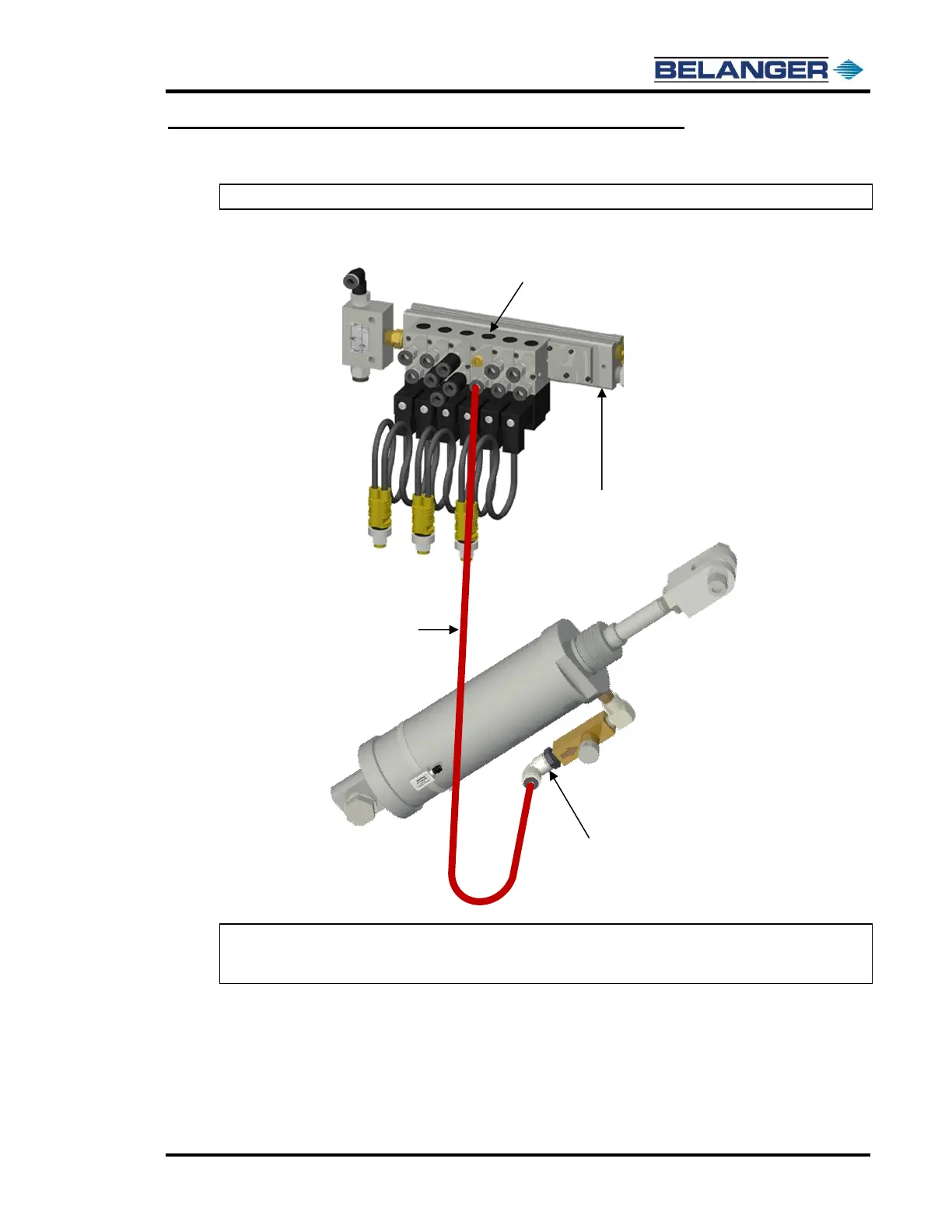

Top Wheel Circuit Overview – Driver Side Pod
Note: The Driver Side cylinder for the Top Wheel has (1) Reid switch.
Note: The Solenoid Applies Air to Retract the Cylinder and Raise the Top Wheel.
Note: The Solenoid Exhausts Air to Drop the Top Wheel.
Elbow
Pneumatic
Retract Fitting
Air Solenoid for
Top Wheel
Pneumatic
Retract
8 Port Valve Manifold
