Chapter 4 Frame and Carriage Assembly

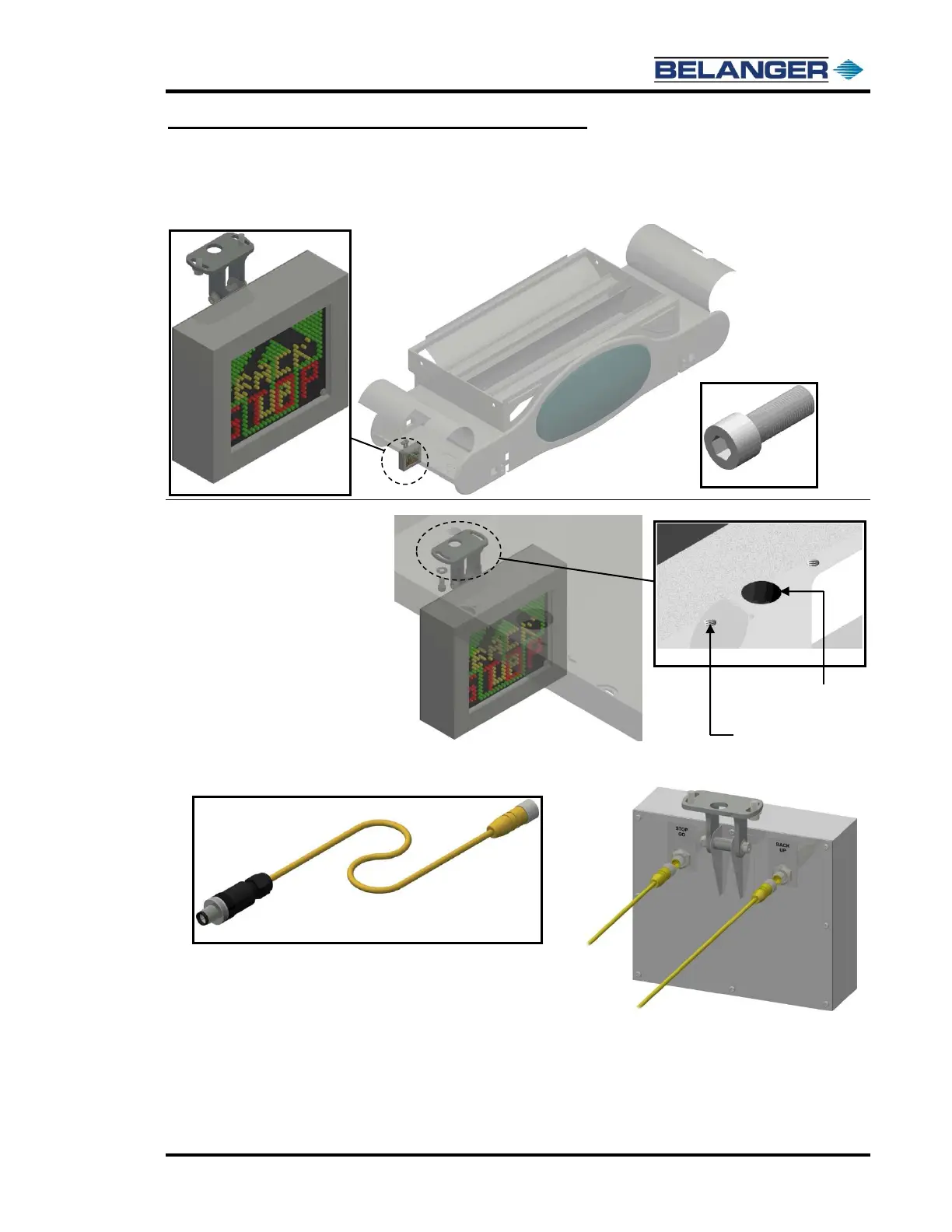

Mounting the Navigational Sign
1) Locate the Navigational Sign and its fasteners (two 1/4-20 x 1/2” SHCS and two 1/4” flat washers).
2) Secure the sign to the Carriage as shown below using the tapped holes.
3) Feed the two yellow electrical cables through the large center hole (see the image above) and
connect them to the rear of the Navigational Sign. See the image below.
Hole Pattern
1/4-20 x 1/2” SHCS
Electrical Cable
To
STOP/GO
Terminal
To BACKUP Terminal
Tapped Hole (2)
Large Center Hole in Pod
to Route Electrical Cables
