INSTALLATION AND STARTUP
1MANUL220 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 4-59

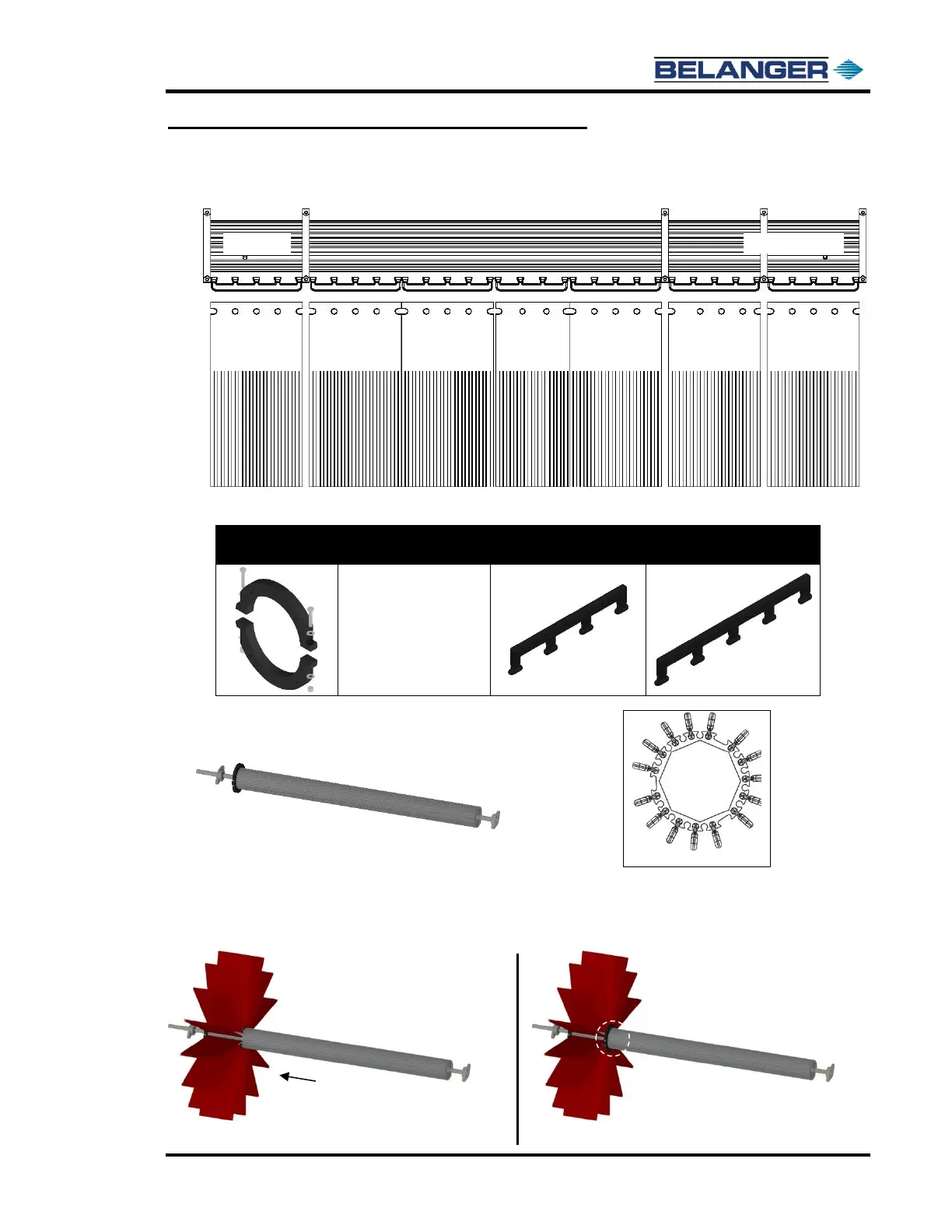

Chapter 4 Frame and Carriage Assembly
Loading Standard Top Wheel Neo-Tex™
Quick Fill Overview
Parts Required
Neo-Tex™ Clamp
Assembly
Clamp Assembly
includes the following:
1PLSTC-CL025 (8” Wash
Clip)
1PLSTC-CL050 (10” Wash
Clip)
• 2 - 1FSTNR-HH081 (1/4-
20 x 1-1/2” bolts)
• 4 - 1WASHR-FL330 (1/4”
flat washers)
• 2 - 1NUT-LC201 (1/4”
Nylock™ nuts)
1) Locate 5 sets of Neo-Tex™ Clamp assemblies
 Secure one assembly 1/8” from the edge of the driver
side Hub as shown below.
2) Locate 90 ten inch Wash Clips and 15 eight inch Wash Clips.
3) Slide the first row of 10” wide Neo-Tex™ into every other slot
as shown below and above to the right.
 Secure one of the Neo-Tex™ Clamp assemblies into place as shown below and snug it against
the Wash Clips, as shown below.
End View of Fill Pattern
Install row of Neo-Tex™
Install Neo-Tex™ Clamp
15 pcs. - 41” x
10” x 1/8” thick
15 pcs. - 41” x
10” x 1/8” thick
15 pcs. - 41” x
10” x 1/8” thick
15 pcs. - 41” x
10” x 1/8” thick
15 pcs. - 41”
x 8” x 1/8”
thick
15 pcs. - 41” x
10” x 1/8” thick
15 pcs. - 41” x
10” x 1/8” thick
Driver Side
Passenger Side
Driver Side
