INSTALLATION AND STARTUP
1MANUL220 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 22-17
Chapter 22 Initial Startup

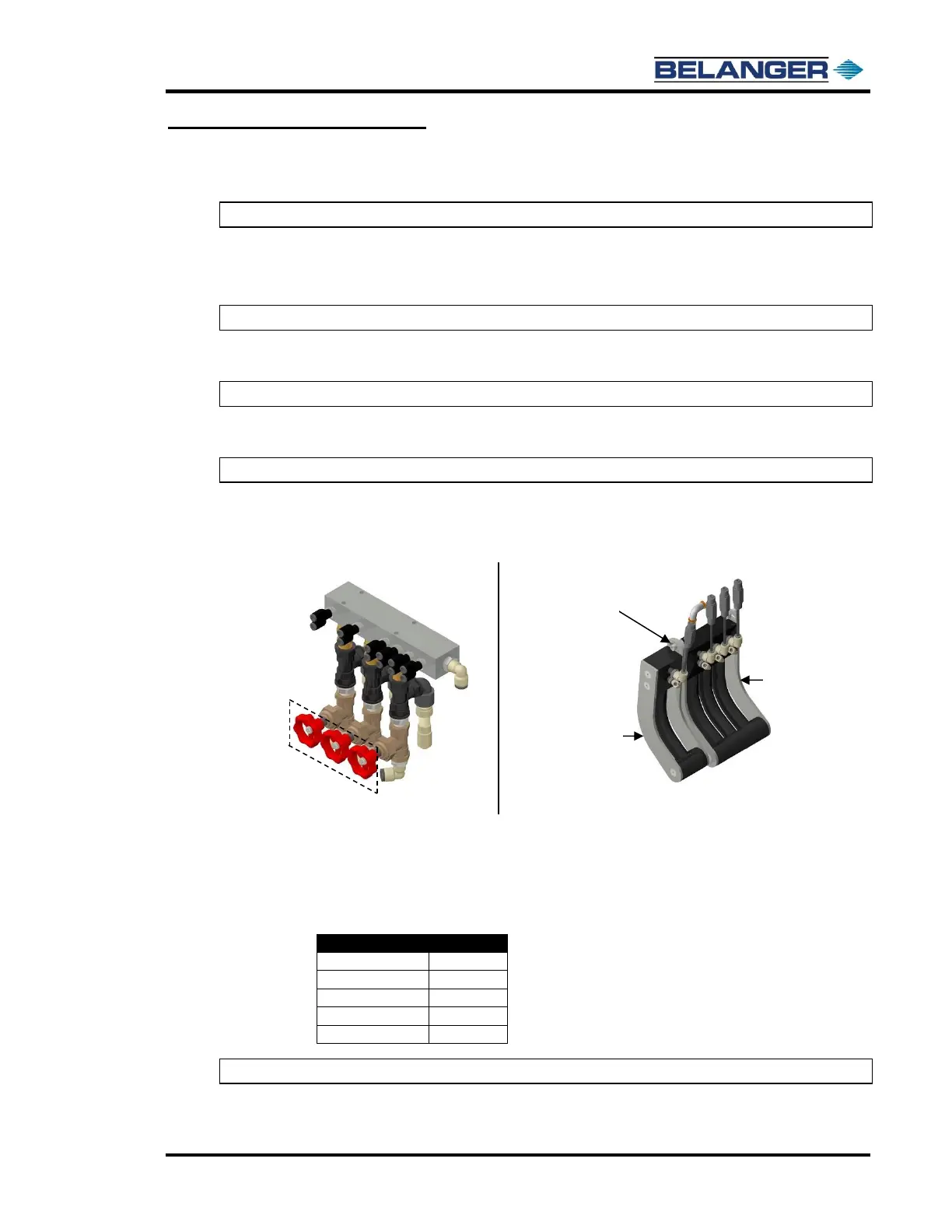

Foaming Components Setup
1) Open Triple Foam water valves completely.
Note: These controls are located in the Carriage.
 Force on TF CHEM and TF WTR/AIR.
 Set the chemical pumps to the supplier’s recommendations.
 Increase the Tri-Foam air pressure to about 10 PSI.
Note: That control is located in the Passenger Side Pod.
 Continue to increase the Tri-Foam air pressure until air blows past the chemical and then
reduce air slightly.
Note: An audible sound can be heard when air blows past the chemical.
 Adjust the 3 Tri-Foam gate valves inside the exit water manifold cover to achieve the
desired “wetness”.
Note: Yellow Tri-Foam typically requires more chemical than the other colors.
 Tilt the Tri-Foam Pods to get the best spray pattern on average vehicles
 Turn soap back on and adjust the spray angle for the soap pods.
 Clear all FORCED ovals.
Setting Cylinder Flow Controls
1) Set the cylinder flow controls as stated below.
• Exit Arm Side: Green Ring on flow control
• Entrance Pivot Side: Blue Ring
• Top Wheel: Open 1/4 Turn (to green ring)
Ring Color
Turns open
Green
1
Orange
2
Blue
3
Silver
4
Red
5 (full)
Note: Never lower the top wheel when the entrance water manifold cover is open.
2) Close the entrance and exit water covers and both pod covers.
Tri-Foam
Gate Valves
Single Foam Pod
Tri-Foam Pod
Tri-Foam
Adjustment Screw
Pulsatron™ Pump Style Shown
