INSTALLATION AND STARTUP

1MANUL220 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 21-1

Chapter 21 Pneumatic and Hydraulic Connections

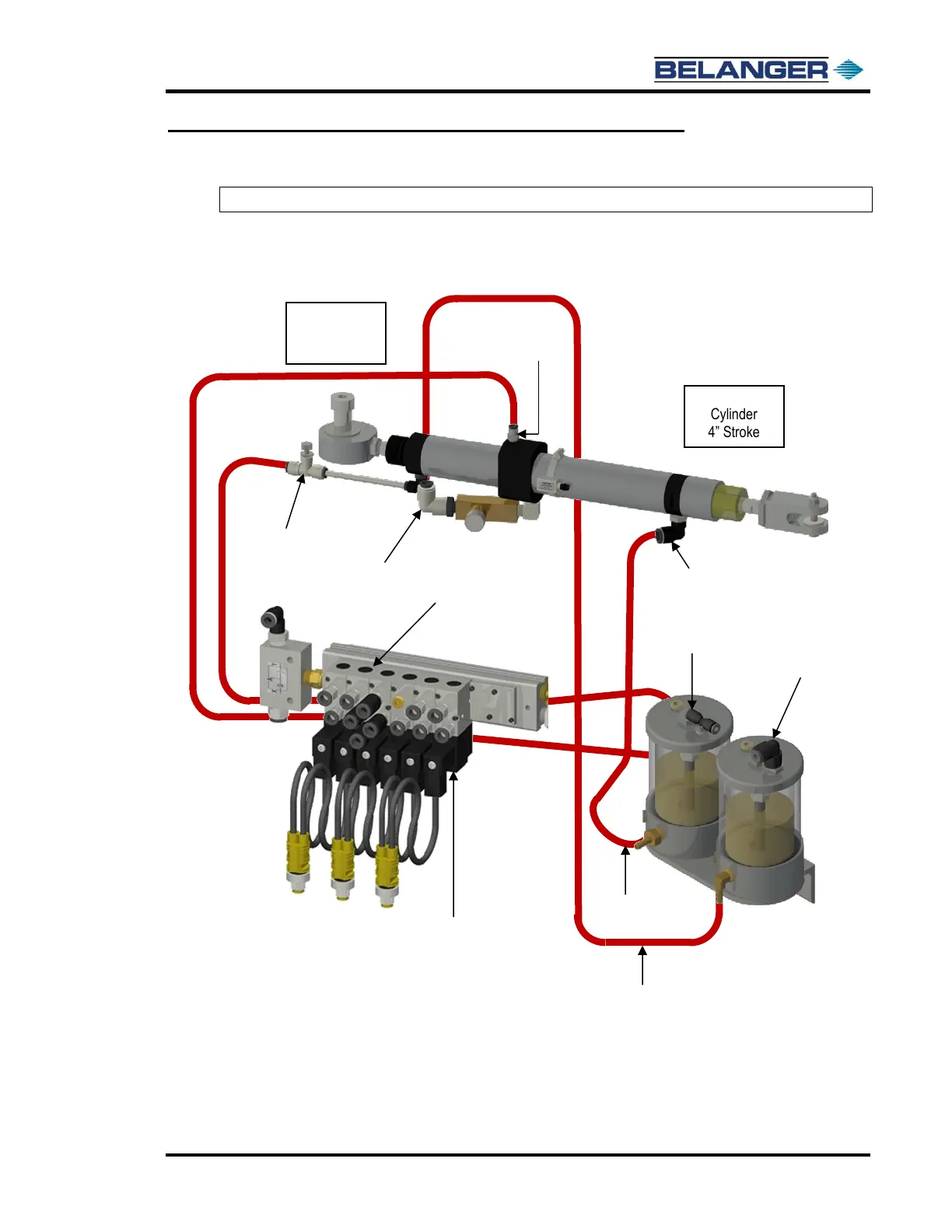

Entrance Wheel Circuit Overview – Driver Side Pod

Note: The Driver Side cylinder for the Entrance Wheel has (1) Reid switch.

Hydraulic Extend

Hydraulic End of

Cylinder

4” Stroke

Pneumatic End

of Cylinder

2” Stroke

Needle Valve

Pneumatic

Extend Fitting

Elbow

Hydraulic Extend Fitting

Air Solenoid for

Driver Side

Entrance Wheel

Pneumatic

Extend

Pneumatic

Retract

Hydraulic Retract

8 Port Valve Manifold

Pneumatic

Retract Fitting

Elbow

Hydraulic Retract Fitting
