INSTALLATION AND STARTUP
22-4 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220
Chapter 22 Initial Startup
Startup Procedure
Note: Confirm that all electrical terminations are tight.
Locate your supplied Programming Manual. Read and understand the following chapters:
• Programming
• General Machine Operation
• General Methods of Using Operator Interfaces
You should also familiarize yourself with the standard user screens.

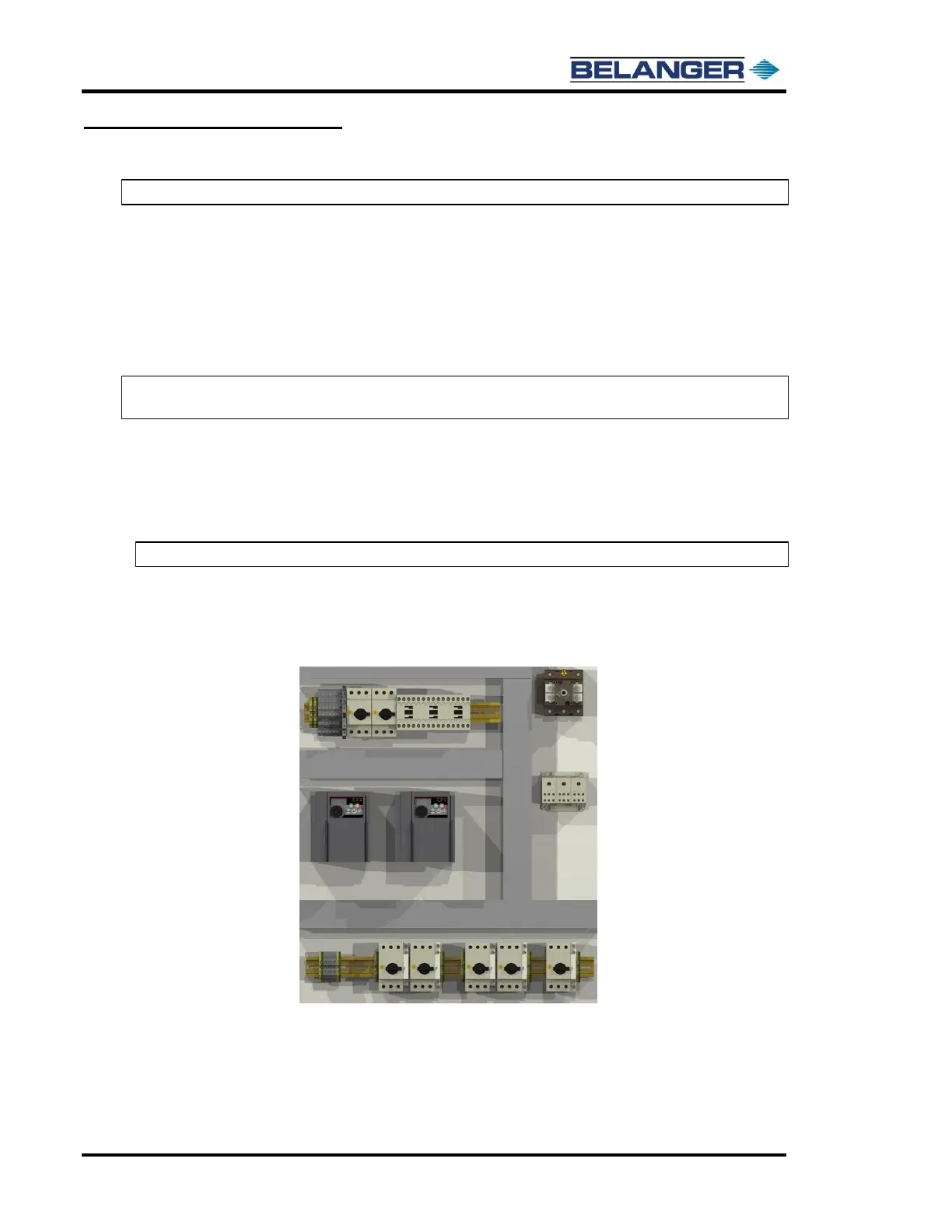

MCC
Note: Verify that all communication wire (between the MCC and SCC and Umbilical wires are CAT-
5E Stranded. DO NOT sue solid core wires.
1) Check power at the following locations:
208-230 V at MCC
120V at SCC
Proper voltage at Dryer panel
Proper voltage at optional wheel cleaner pump panel.
Note: The procedure in step 1 should be performed by a licensed electrician.
2) Confirm that the power to the MCC is off at load center (building electrical Panel)
Turn on all breakers
Close the door
Turn ON the main disconnect.
To Next Page
