Chapter 4 Frame and Carriage Assembly

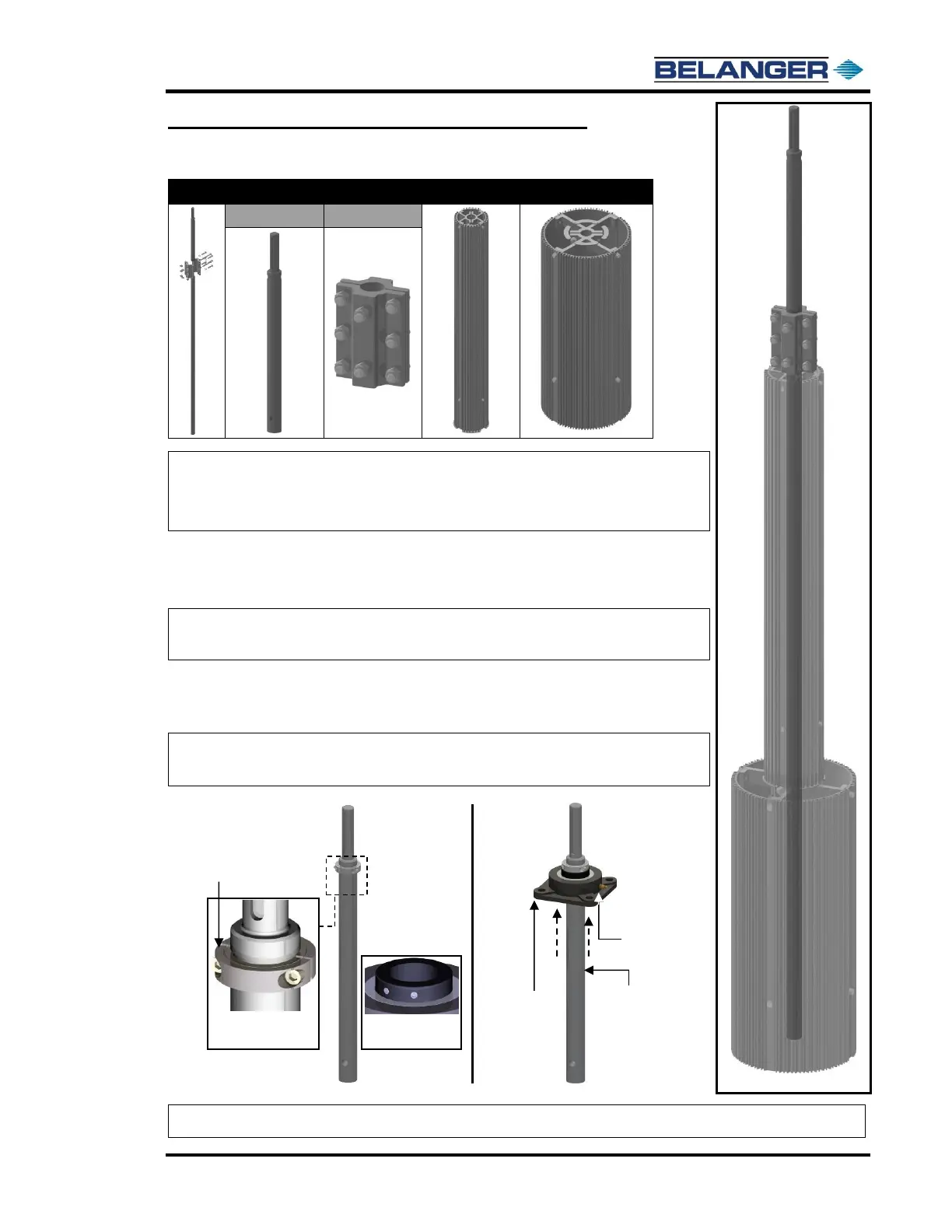

Mounting the Entrance Arm Accessories
Shaft Components
Upper Hub
Lower Hub
Upper Shaft
Clamp Asy
1) Locate one of the Upper Entrance Shafts.
2) Place a 1COLLR333 into the collar slot on the upper shaft and tighten it
into place on to the shaft as shown below.
 Slide a 1BERNG848 on to the upper shaft coming up from the bottom
of the shaft until it is against the locking collar and tighten the two set
screws on the bearing.
Complete Assembly
Bearings have two
set-screws each
Slide one of the
Bearing onto the
shaft as shown
Secure the
Locking-Collar
to the shaft as
shown.
Be sure the
gaps on the
Locking-Collar
are even.
Secure the
Locking Collar into
place as shown.
Locking-Collar gaps
are equal
Be sure to add
Anti-Seize
between the
Bearing and the
Shaft.
1COLLR333
1BERNG848
Grease Fitting
Facing Out
for Easy
Maintenance
Note: Use anti seize on all bearings and on the top part of the shaft that slides
into the gearbox.
Note: Overtightening may strip the threads on the locking-collar.
Note: Be sure that when you tighten the collar down that there is an even gap
on both sides.
Note: NEVER FORCE THE BEARING ON TO THE SHAFTS. SAND OR
DEBUR THEM IF NECESSARY.
Note: For ease of maintenance, be sure that the grease fitting on the bearing faces outward.
