INSTALLATION AND STARTUP
21-6 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220
Chapter 21 Pneumatic and Hydraulic Connections

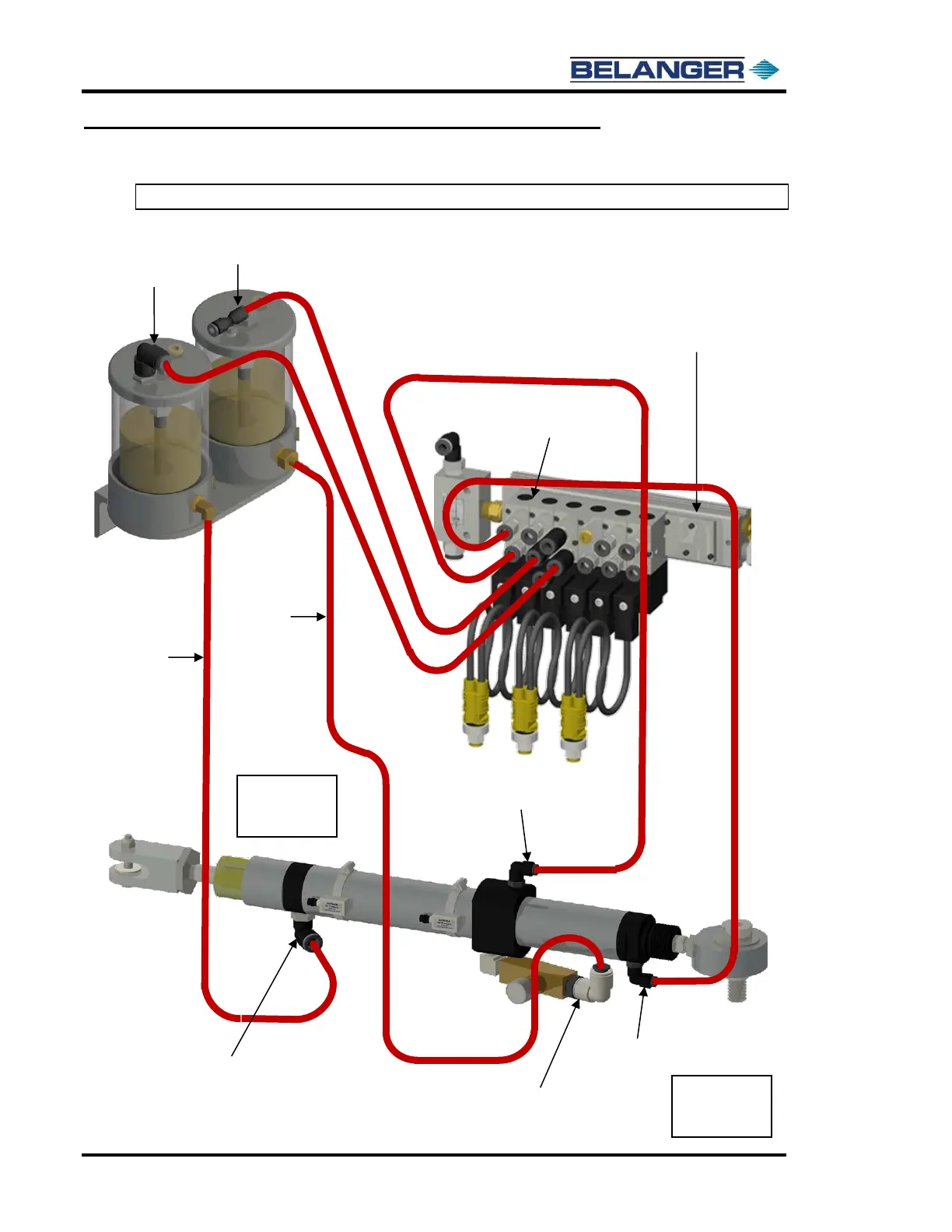

Entrance Wheel Circuit Overview – Passenger Side Pod
Note: The Passenger Side cylinder for the Entrance Wheel has (2) Reid switches.
Hydraulic End of
Cylinder
2” Stroke
Elbow
Hydraulic Extend Fitting
Pneumatic
Extend
Pneumatic
Retract
Hydraulic
Retract
8 Port Valve Manifold
Pneumatic End
of Cylinder
4” Stroke
Elbow
Pneumatic Extend Fitting
Elbow
Pneumatic Retract Fitting
Elbow
Hydraulic Retract Fitting
Hydraulic
Extend
Air Solenoid for
Entrance Wheel
