INSTALLATION AND STARTUP
15-20 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220
Chapter 15 Wheel Cleaning and CTA Options
Deluxe Wheel Stinger® with On-Board CTA Installation
Utility Hook-Ups
1) Follow supplied directions in Chapter 16 for wiring of Photo-Eyes.
2) Align the Photo-Eyes using the technique stated below.
a. Make sure there are no obstructions between the emitter and receiver that could
interfere with the signal during adjustment.
b. Adjust the emitter first, then the receiver to aim directly at each other.
c. Adjust the emitter’s position until the receiver signal strength light bar indicates its
highest amount of signal received (the highest number lit).
d. Tighten the emitter mounting hardware then repeat this step for the receiver.
Note: Run your CTA pump station to test the onboard applicator system for leaks before installing
the covers.

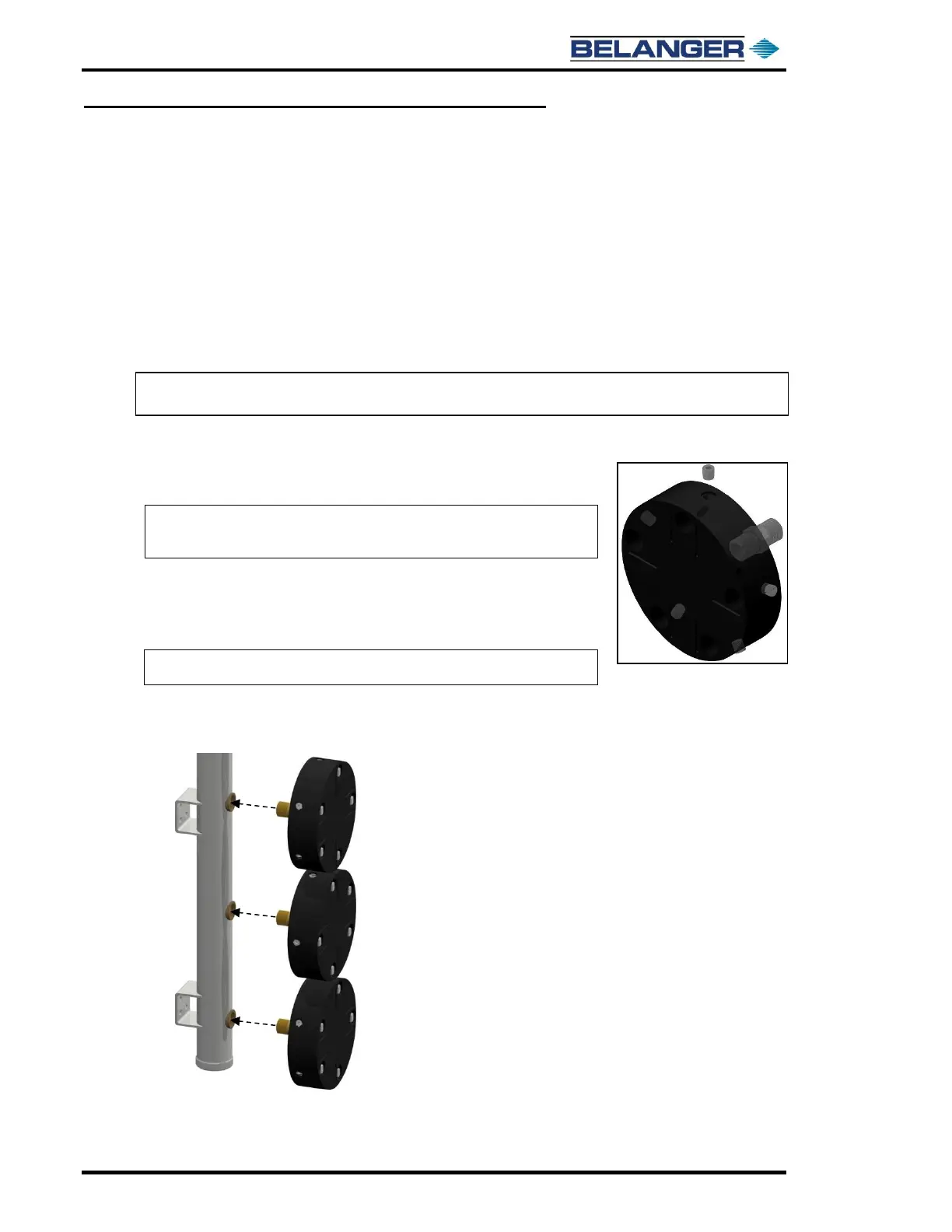

Hockey Puck Installation
1) Locate the 6 Hockey Puck assemblies and the 30 spray
nozzles as shown in image to the right.
2) Apply Teflon™ tape and liquid Teflon™ to the threads of the
hex nipples.
Install all 3 Hockey Puck assemblies into the flow drilled holes at
the bottom of the driver side spray pipe weldments.
Repeat Step 2 for the Passenger side spray pipe weldment.
See the image below.
