INSTALLATION AND STARTUP
4-22 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220
Chapter 4 Frame and Carriage Assembly
Installing the Optional Freestanding Boom Mount Leg
1) Position the Freestanding Boom Mount Leg and install it in the bay:
 For the 4-Legged Frame configuration measure 124-1/2” from the entrance edge of the
exit leg toward the entrance of the bay and mark the ground. The Freestanding Boom
Mount Leg will be centered on this mark. Then determine the distance that the leg should
be from the equipment room wall.
 For the 6-Legged Frame configuration measure 22-1/8” from the entrance edge of the
center leg toward the entrance of the bay and mark the ground. The Freestanding Boom
Mount Leg will be centered on this mark. Then determine the distance that the leg should
be from the equipment room wall.
Note: The following instruction for installing the Freestanding Boom Mount in the bay applies to
the FreeStyler® either with or without an Onboard Dryer.
Note: If you purchased the Onboard Dryer option, see Chapter 17 for more details.

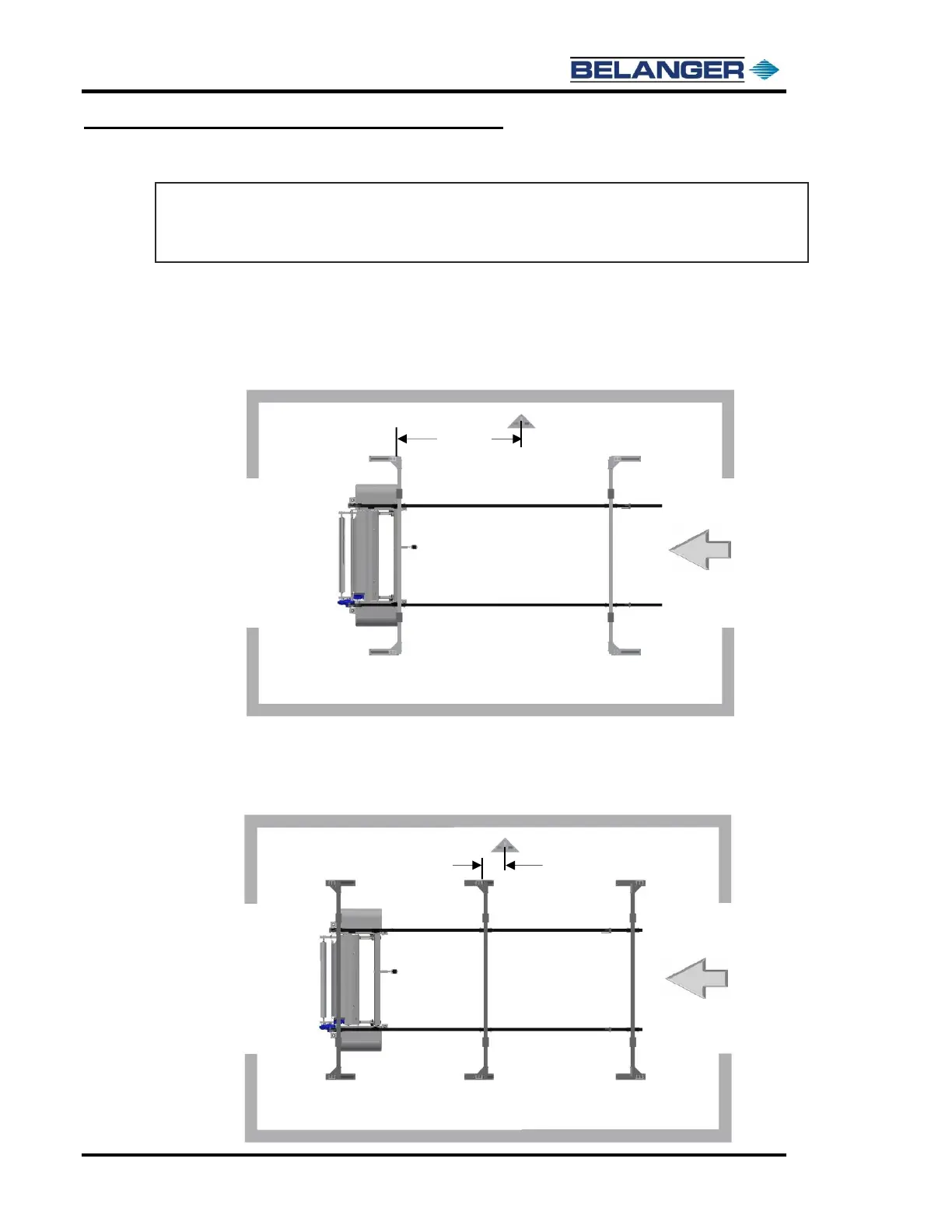

Direction
of Travel
4-Legged Frame
124-1/2”
From entrance side of
exit 4 x 6 frame leg
From center of the
Freestanding Mount Leg
6-Legged Frame
Direction
of Travel
From center of the
Freestanding Mount Leg
From entrance side of
center 4 x 6 frame leg
22-1/8”
