Chapter 4 Frame and Carriage Assembly
Installing the Boom Mount
4) Once the height and depth locations are marked for the Wall Mount clamp the Boom to the
fork-lift and raise it into position. Line up the bottom of the detail plate with the height mark and
center the boom assembly on the depth mark.

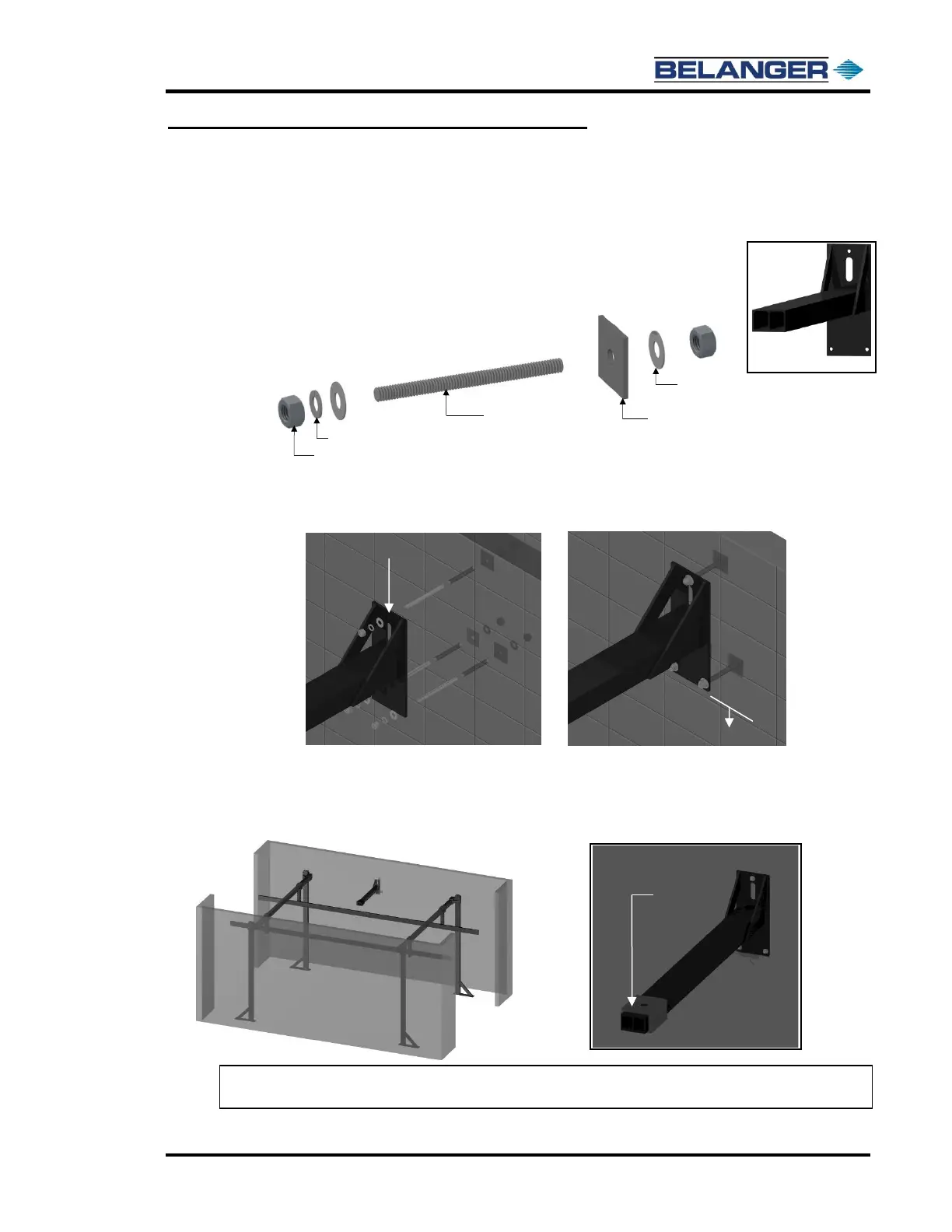

The following items are recommended for mounting through a block wall:
5) Drill the upper hole for the Detail Plate through the wall. Then while placing one of the Mounting
Plates on the opposite side of the wall in the equipment room secure the Wall Mount Assembly
into position, as shown in the images below.
6) Square the Boom Mount base plate and drill the other two holes.
Complete the securing of the Boom Mount to the wall, as shown in the images above.
7) Take the Boom Mount Clamp and secure it 2” from the outer edge of the Boom Mount as shown
below.
Note: The outer edge of the rail to the edge of the Boom Mount Clamp should measure 2”. If the
distance is not 2” adjust the Clamp as necessary.
