INSTALLATION AND STARTUP
1MANUL220 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 22-5
Chapter 22 Initial Startup
SCC and Other Components

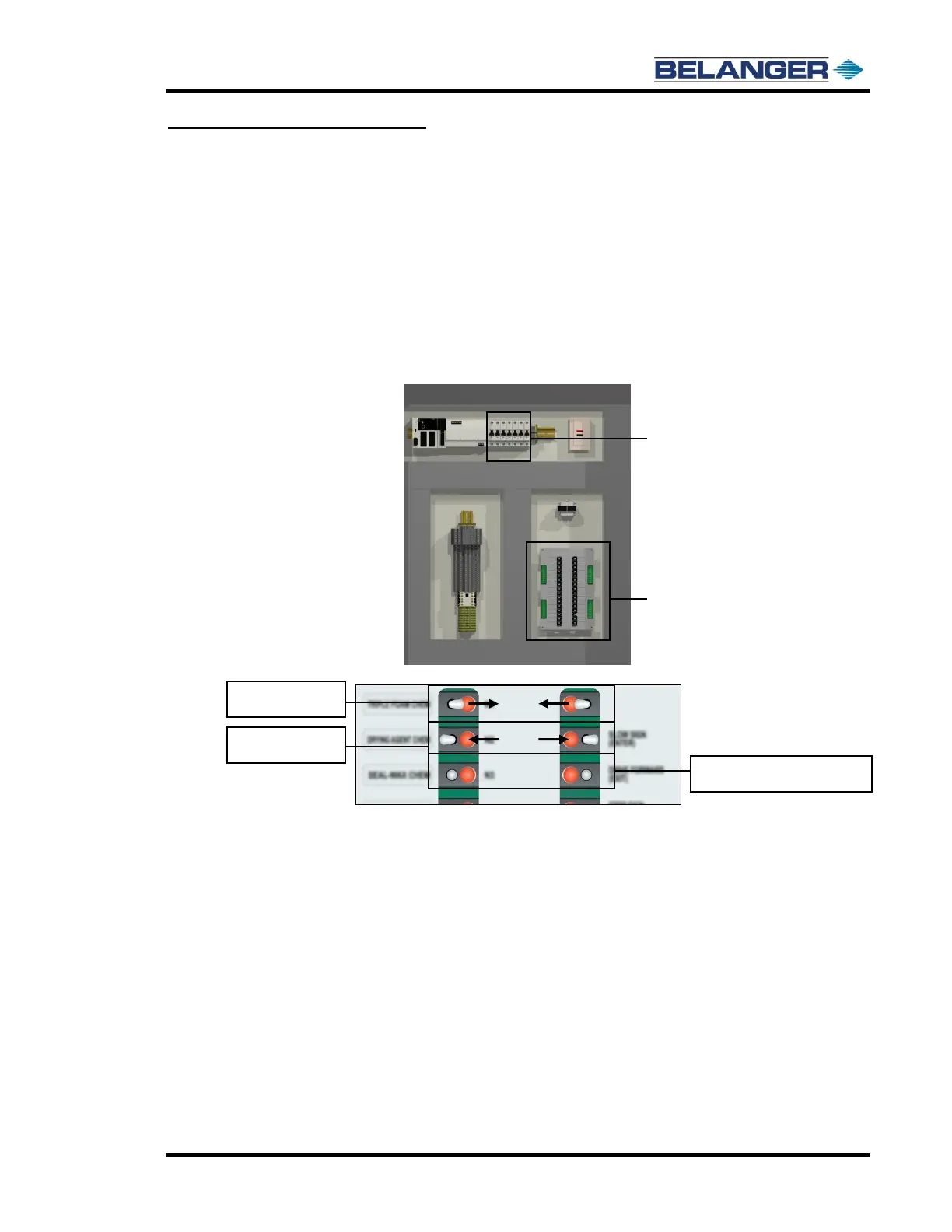

1) Confirm that the power to the SCC is off.
 Turn ON all breakers in the SCC.
Confirm the following:
• The PLC is in RUN Mode
• Communication Module DIP Switches are in the OPEN position
• RD and SD lights are both blinking rapidly
 Set all Outputs to AUTO.
 Close the door.
2) Confirm that all doors are closed and turn on the power to each electrical panel at load center.
3) Pull out the E-Stop on the HMI (E-1063 Human Machine Interface) panel, as well as any in-bay E-Stops.
Breakers up for ON
Switches toward middle of
Output Board for AUTO
AUTO
Switched to the Inside
Manual ON
Switched to the Outside
OFF
Switched to the Middle of the output
Board
