INSTALLATION AND STARTUP
4-68 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220
Chapter 4 Frame and Carriage Assembly
Loading Exit Wheel Neo-Tex™

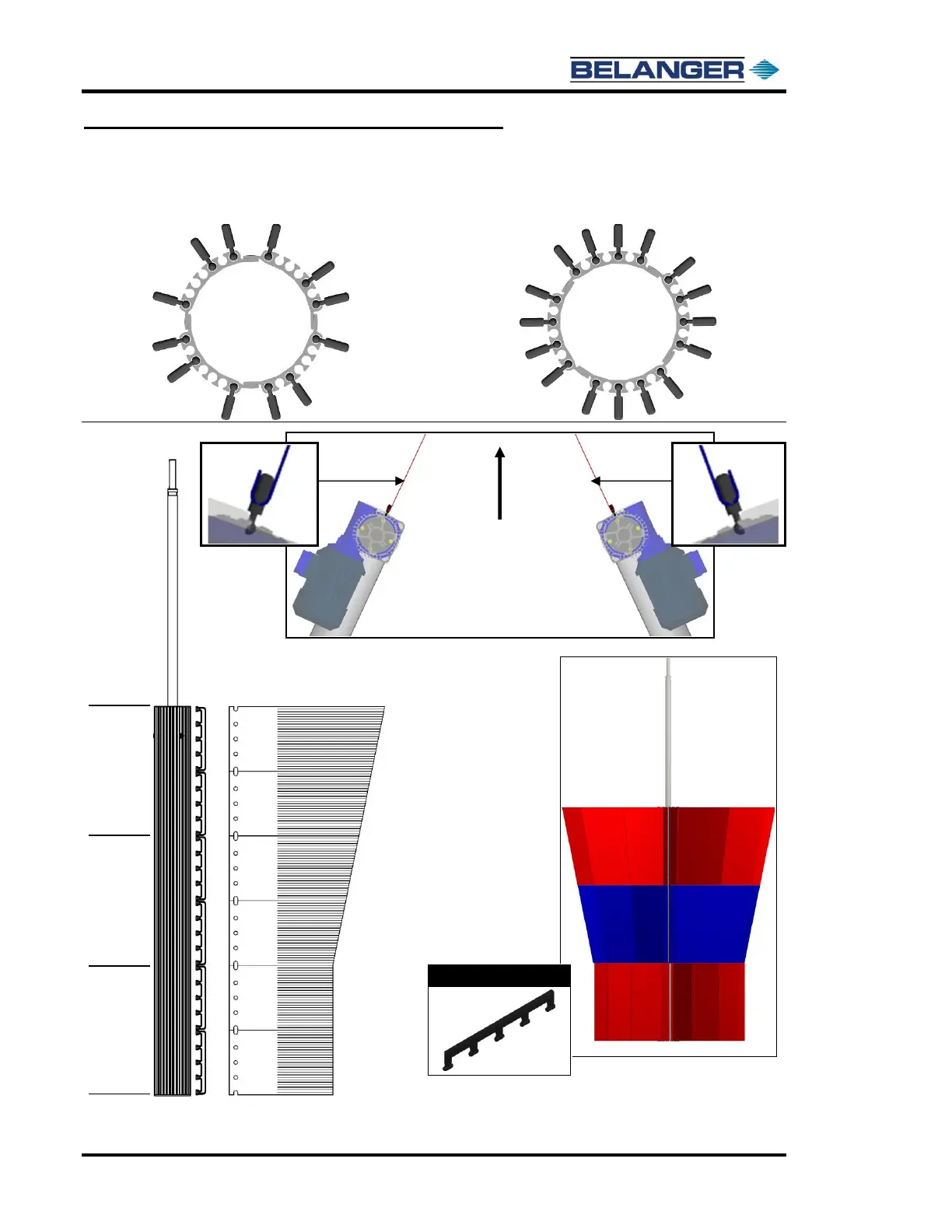

1) Locate 160 ten inch Wash Clips.
2) Slide the Cleaning Material into the slots as shown below.
Completed Fill
Overhead View of
Upper and Middle Hub
Fill Pattern
(6” diameter hub)
Fill slots as shown
Overhead View of
Lower Hub Fill Pattern
(6” diameter hub)
Fill every slot as shown
16 pcs. - 33” x
10” x 1/8” thick,
folded in half
16 pcs. - 33” x
10” x 1/8” thick,
folded in half
24 pcs. - 18” x 10”
with 2” taper cut
(2 pcs per clip)
24 pcs. - 20” x 10”
with 2” taper cut
(2 pcs per clip)
24 pcs. - 22” x 10”
with 2” taper cut
(2 pcs per clip)
24 pcs. - 24” x 10”
with 2” taper cut
(2 pcs per clip)
Upper
Middle
Lower
Direction
of Travel
Be sure the folded pieces are
in the direction shown
1PLSTC-CL050 (10” Clip)
