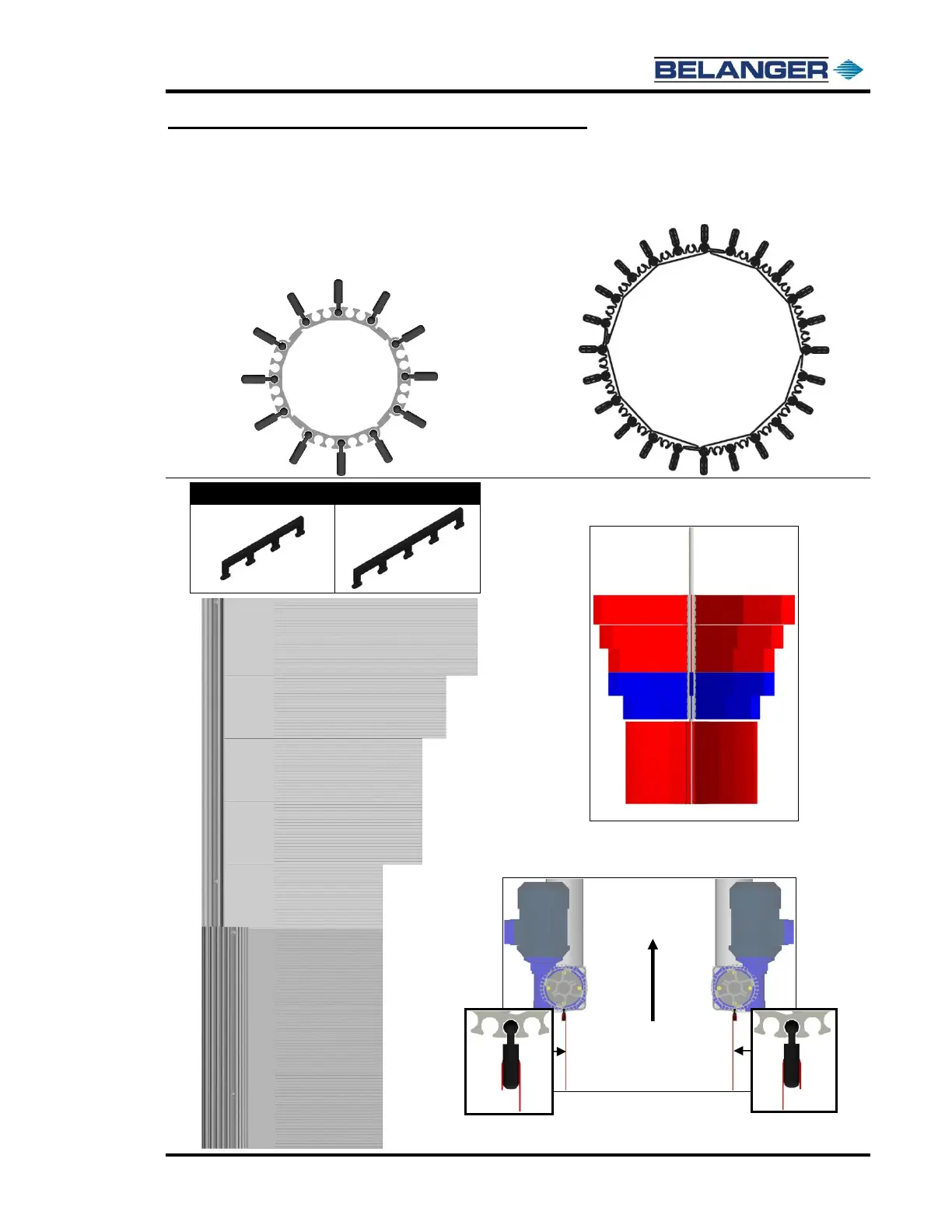

Chapter 4 Frame and Carriage Assembly
Loading Entrance Wheel Neo-Tex™
1) Locate 120 ten inch Wash Clips and 144 eight inch Wash Clips.
2) Slide the Cleaning Material into the slots as shown below.
Neo-Tex™ Box: (24 pieces) 32”x 10”
Load one piece of 1/4” Neo-Tex™ per plastic clip
12 pieces of Neo-Tex™ in this row
Overhead View of
Upper Hub Fill Pattern
(6” diameter hub)
Fill slots as shown
Overhead View of
Lower Hub Fill
Pattern
(12” diameter hub)
Fill every other slot as shown
Neo-Tex™ Box: (24 pieces) 28”x 8”
Load one pc of 1/4” Neo-Tex™ per plastic clip
12 pieces of Neo-Tex™ in this row
Neo-Tex™ Box: (24 pieces) 25”x 8”
Load one pc of 1/4” Neo-Tex™ per plastic clip
12 pieces of Neo-Tex™ in this row
Neo-Tex™ Box: (48 pieces) 25”x 8”
Load two pcs of 1/8” Neo-Tex™ per plastic clip
24 pieces of Neo-Tex in this row
Neo-Tex™ Box: (24 pcs) 41”x 8”
Load one pc of 1/8” NeoTex –when
folded on plastic clip makes this a 20”
(2 ply) Neo-Tex™ pack
12 pcs of Neo-Tex™ in this row
Neo-Tex™ Box: (48 pcs)
33”x 8” Neo-Tex™ Packs
2-Ply pc-folded on plastic clip
24 pcs of Neo-Tex™ in this row
(1/8” thick)
Neo-Tex™ Box: (48 pcs)
33”x 10” Neo-Tex™ Packs
2-Ply piece- folded on plastic clip
24 pcs of Neo-Tex™ in this row
(1/8” thick)
Neo-Tex™ Box: (48 pcs)
33”x 10” Neo-Tex™ Packs
2-Ply piece- folded on plastic clip
24 pcs of Neo-Tex™ in this row
(1/8” thick)
Completed Fill
1PLSTC-CL025 (8” Clip)
1PLSTC-CL050 (10” Clip)
Direction
of Travel
Be sure the folded pieces are
in the direction shown
