Belanger FreeStyler - Connections to Euro Block - Passenger Side Pod

INSTALLATION AND STARTUP
21-8 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220
Chapter 21 Pneumatic and Hydraulic Connections

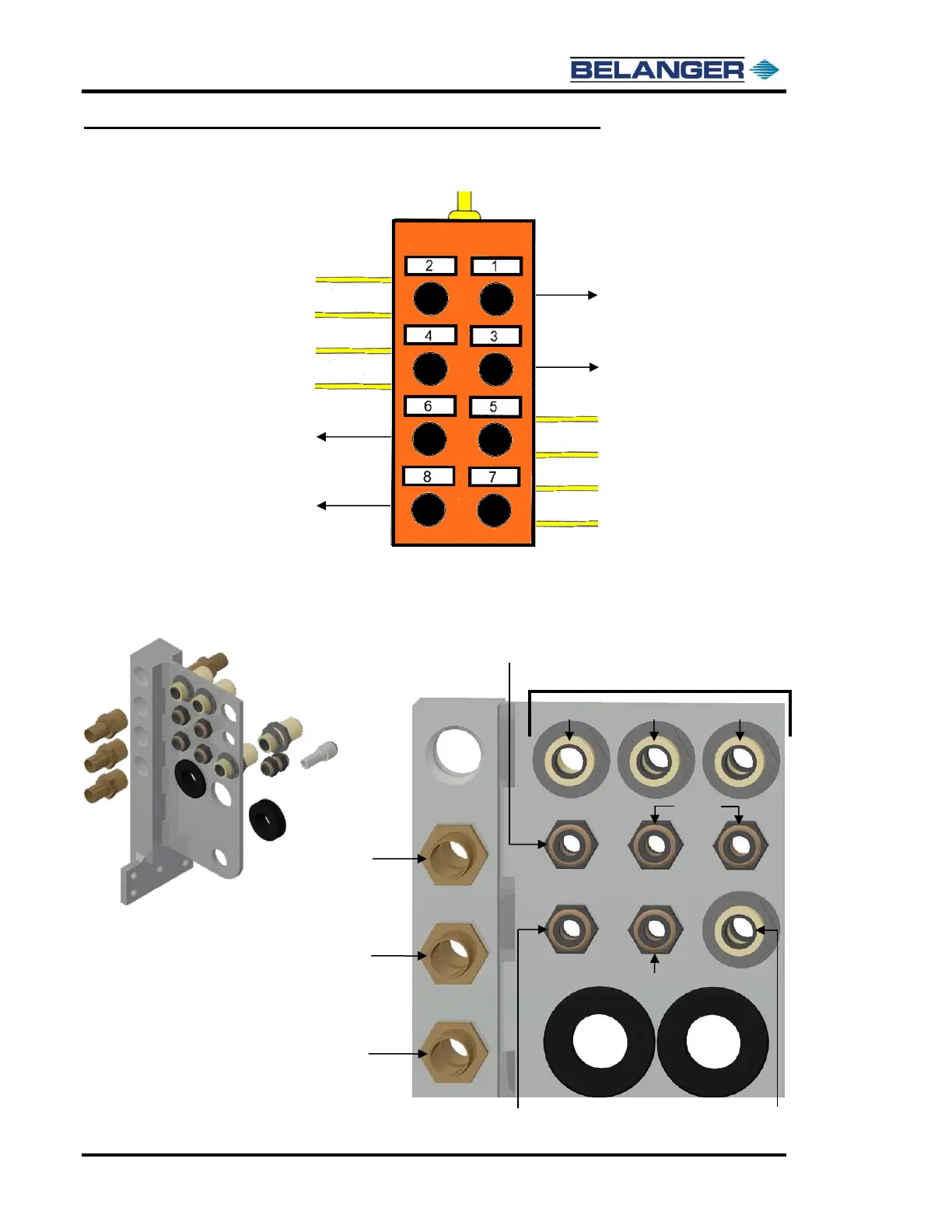

Connections to Euro Block – Passenger Side Pod
Carriage Utility Manifold Connections
Carriage Exit Proximity Switch
Carriage Entrance Proximity Switch
Carriage Encoder B
Carriage Encoder A
Sonar
Top Wheel Proximity Switch
Enter Passenger Side Out Reed Switch
Exit Passenger Side Out Reed Switch
Enter Passenger Side In Reed Switch
Exit Driver Side Out Reed Switch
Enter Driver Side Out Reed Switch
Tire Photo Eye
3/8" for Optional
Drying Agent Feed
1/2" for Optional Triple Foam Feeds
RED
YELLOW
BLUE
EXTRA
3/4" for Optional RO Feed
3/4" for Fresh Water Feed
3/4" for Optional
Reclaim Feed
3/8" for Soap Chemical Feed
1/2" for
Main Air Feed
3/8" for Optional
Sealer Wax Chemical Feed
