Passenger Side Boom Install
Boom Hose Supports
If your utilities and chemicals are to be on the passenger side, you will need to reconfigure the
Boom Hose Support and move it to the opposite side of the frame. The Boom Mount will also need
to be secured to the opposite side. See the images and instructions below to reconfigure the Boom
Hose Support if required.

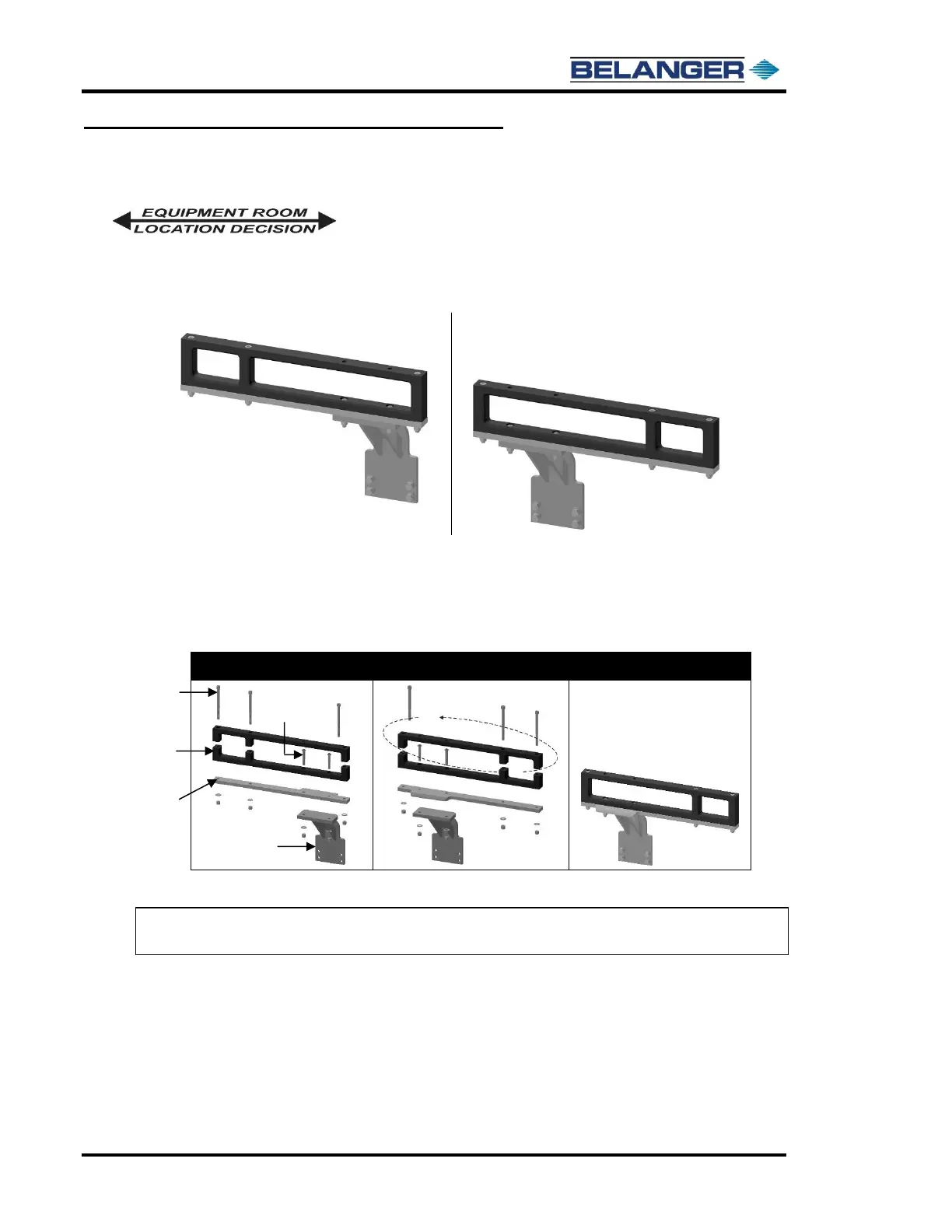

1) Remove the (3) 3/8-16 x 4-3/4” socket head bolts that run through the black plastic halves and the (2) 3/8-16 x
2-1/4” button head screws that attach the mount plate to the weldment.
2) Flip the mount plate 180° and rotate the black plastic halves 180°.
3) Fasten the bolts back into place and tighten them down.
Step 1
Step 2
Step 3
Note: Separating the black plastic halves also makes it easier to maintain any lines
or wires.
Driver Side
Boom Support
Orientation
Passenger Side
Boom Support
Orientation
3/8-16 x 4-3/4”
Socket Head
Bolt (3)
3/8-16 x 2-1/4”
Button Head
Screw (2)
Mount Plate
Weldment
Black Plastic
Half (2)
