INSTALLATION AND STARTUP
1MANUL220 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 4-53
Chapter 4 Frame and Carriage Assembly
Mounting the Entrance and Exit Motors and Gearboxes

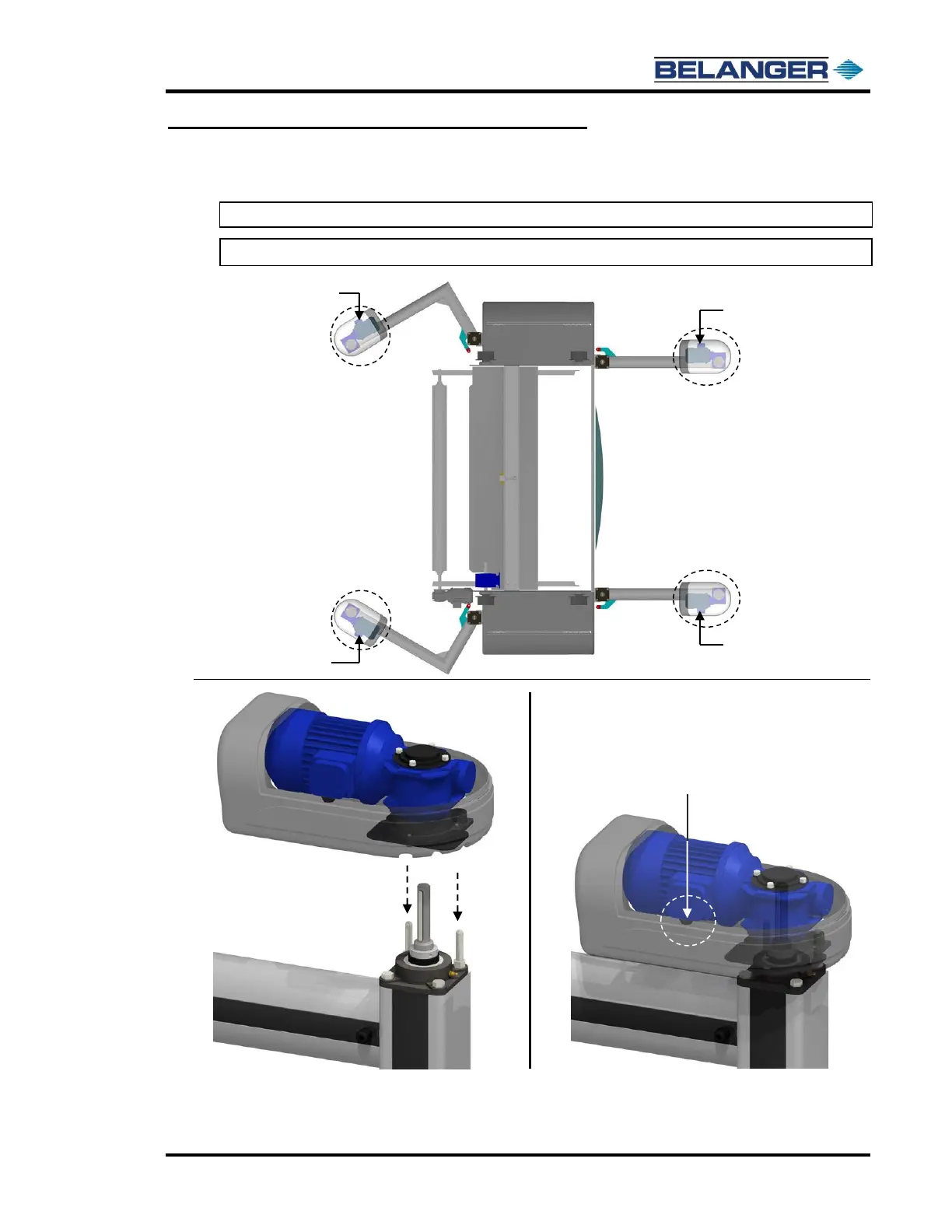

1) Locate the Torque Plate-Motor Gearbox Assembly and place it as shown below.
Note: Be sure the Torque Plates are in the correct location and orientation as shown below.
Confirm the orientation of the
Motor/Gearbox Assemblies on all four arms.
When the arms are open, the electrical
boxes of the motors should face towards
the wall of the bay.
Note that the Cord Grip for both the
Gearbox and the Arm are always on the
same side
Note: The images in this section show the motors mounted with the optional motor covers.
