Belanger FreeStyler - Wheel Stinger Installation (General)

INSTALLATION AND STARTUP
15-12 Belanger, Inc.® * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220
Chapter 15 Wheel Cleaning and CTA Options
Wheel Stinger Installation (General)
Tools Required
7/16" wrench (x2)
11/32" wrench
Tape Measure
Safety Glasses
9/64" Allen Wrench
Small Phillips Screwdriver
Utility Knife

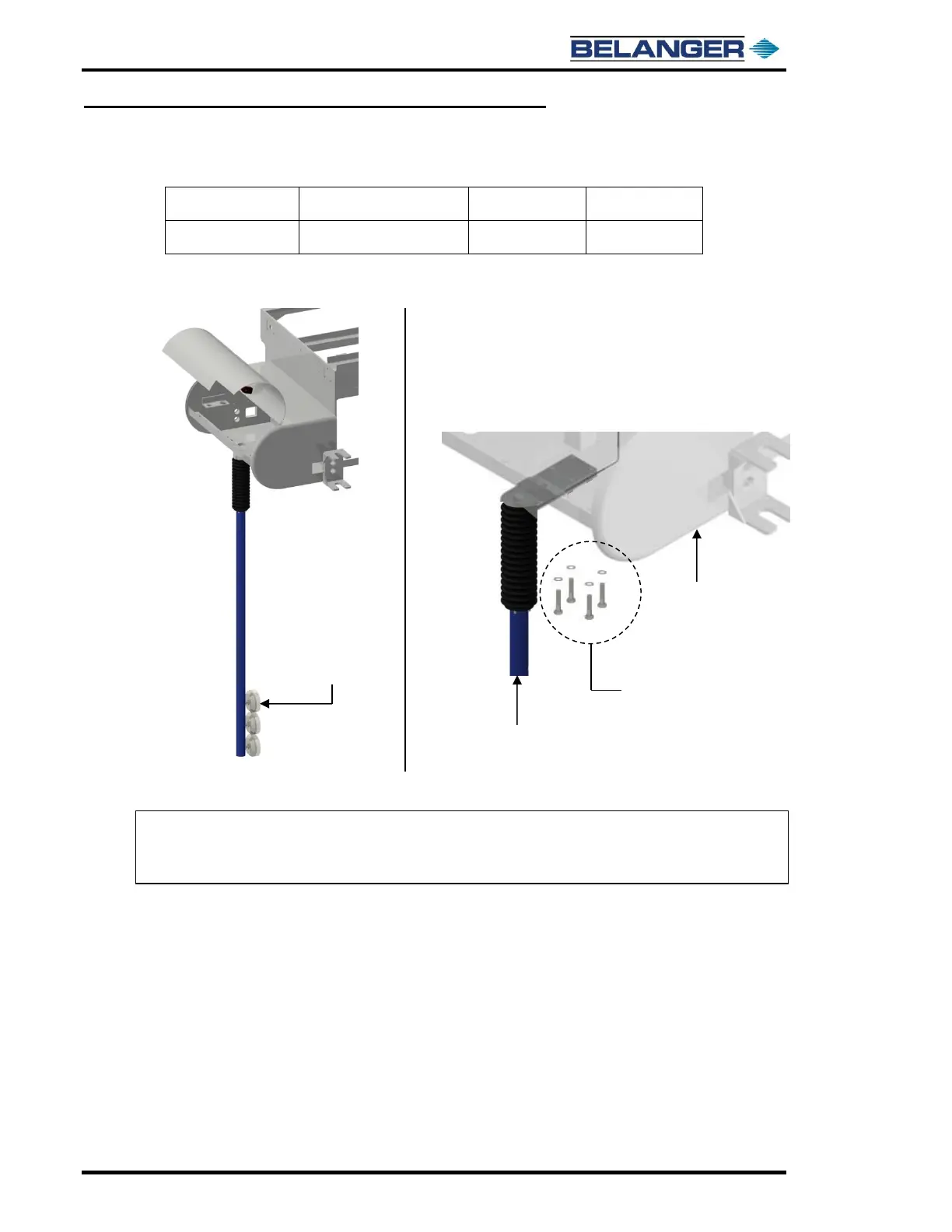

1) Locate the labeled parts below and install them on the Passenger side. See the image
below.
Note: The Wheel Stinger® mounts to the inside of the carriage and the fasteners come up through
the bottom of the carriage.
Note: The “Hockey Pucks” face toward the center of the machine.
2) Repeat step 1 for the Driver side. See the image above.
Four 1/2”13 x 2” Fasteners
Four 1/2” Lock-Washers
Wheel Stinger
“Hockey Puck“
(3) per Wheel Stinger
Carriage
