INSTALLATION AND STARTUP
1MANUL220 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 9-1

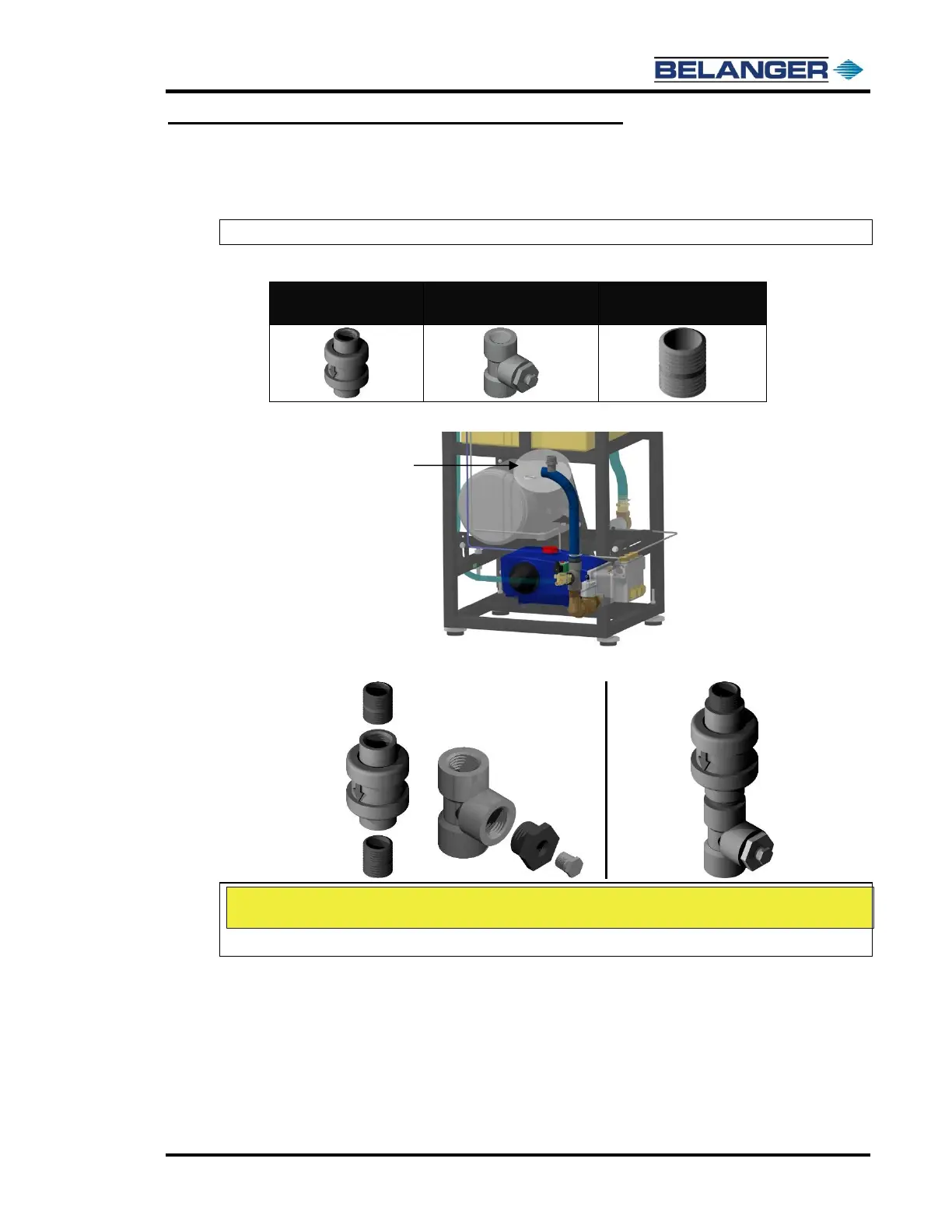

Chapter 9 Reclaim Water Adapter Kit Option
Assembling Reclaim Adapter Components
If you have purchased this option, it will be referred to as the “Reclaim Adapter”. The Reclaim system
is sold separately.
Note: The Reclaim Adapter can be installed ONLY in the larger Fresh Water Tank.
Locate the following parts:
1VALVE-WA298
Ball Check
1TEE-PL978
Inlet TEE
1NIPPL-PL825 (2)
1-1/2” CPVC Close Nipple
1) Remove the hose clamps and the barbed hose fittings from the bottom of the large water tank.
•
2) Locate the ball check valve and inlet tee components and assemble them as shown below.
•
CAUTION
Be sure the “Flow Arrow” on the side of the inlet tee faces down.
Remove one end of
the hose and the
barbed hose fitting
Before
After
