INSTALLATION AND STARTUP
12-2 Belanger, Inc. ®* PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220
Chapter 12 Undercarriage Options

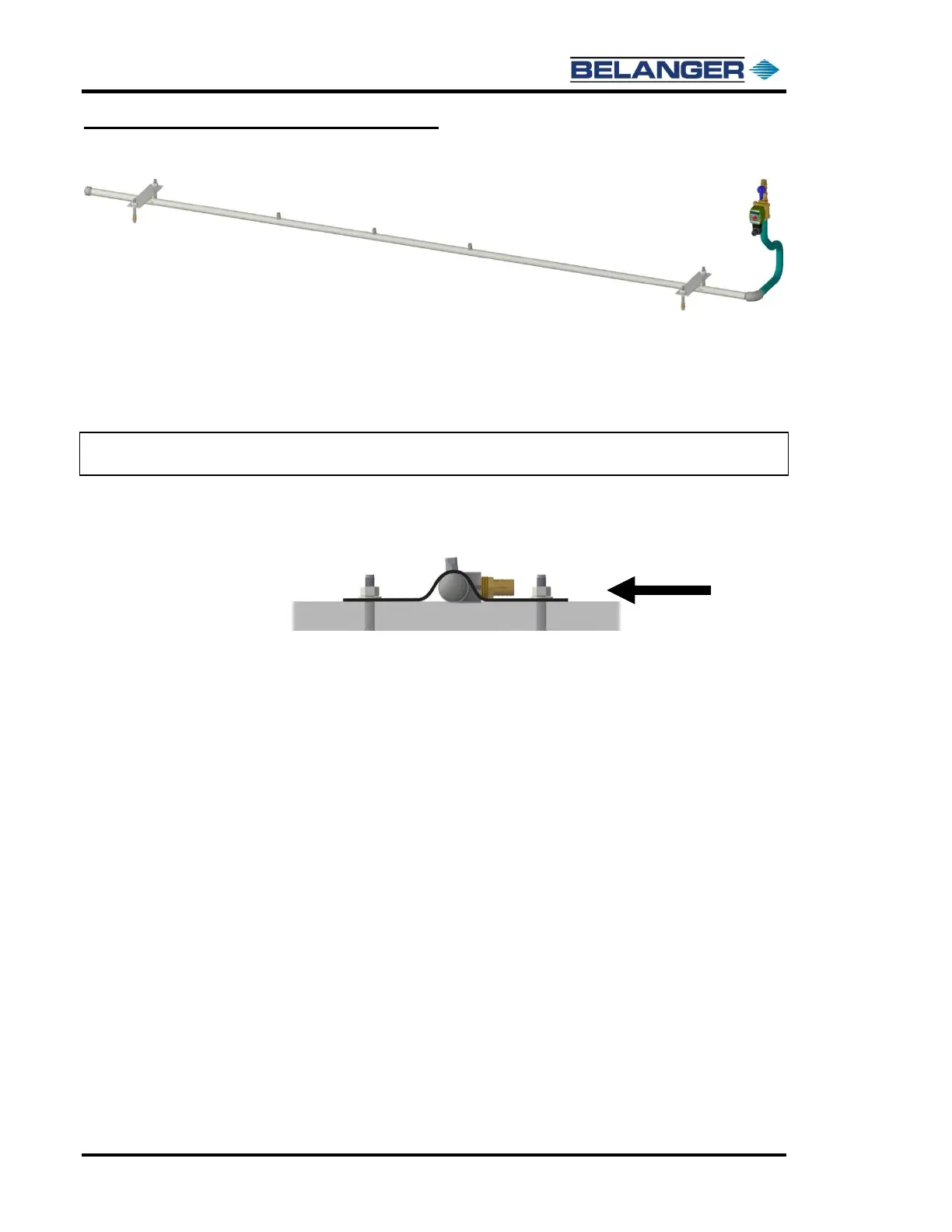

Undercarriage In-Ground Placement
In-Ground Undercarriage placement is typically in a trench cut into the floor, but this style of
Undercarriage could also be mounted on the surface of the floor.
Mounting the In-Ground Style Undercarriage in a Trench
Be sure that there is adequate room for the fittings and pipe on each end. You will also need to have
the elbow angled up a little to allow room to clamp the hose.
Note: Take care that the water hose does not stick up out of the trench to in a way that becomes a tripping
hazard or a potential catch point!
Mounting the In-Ground Style Undercarriage on the Surface
The mounting tabs will have to be bent to the floor so the undercarriage manifold can be lagged. See
the image below.
