INSTALLATION AND STARTUP
1MANUL220 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 12-3
Chapter 12 Undercarriage Options

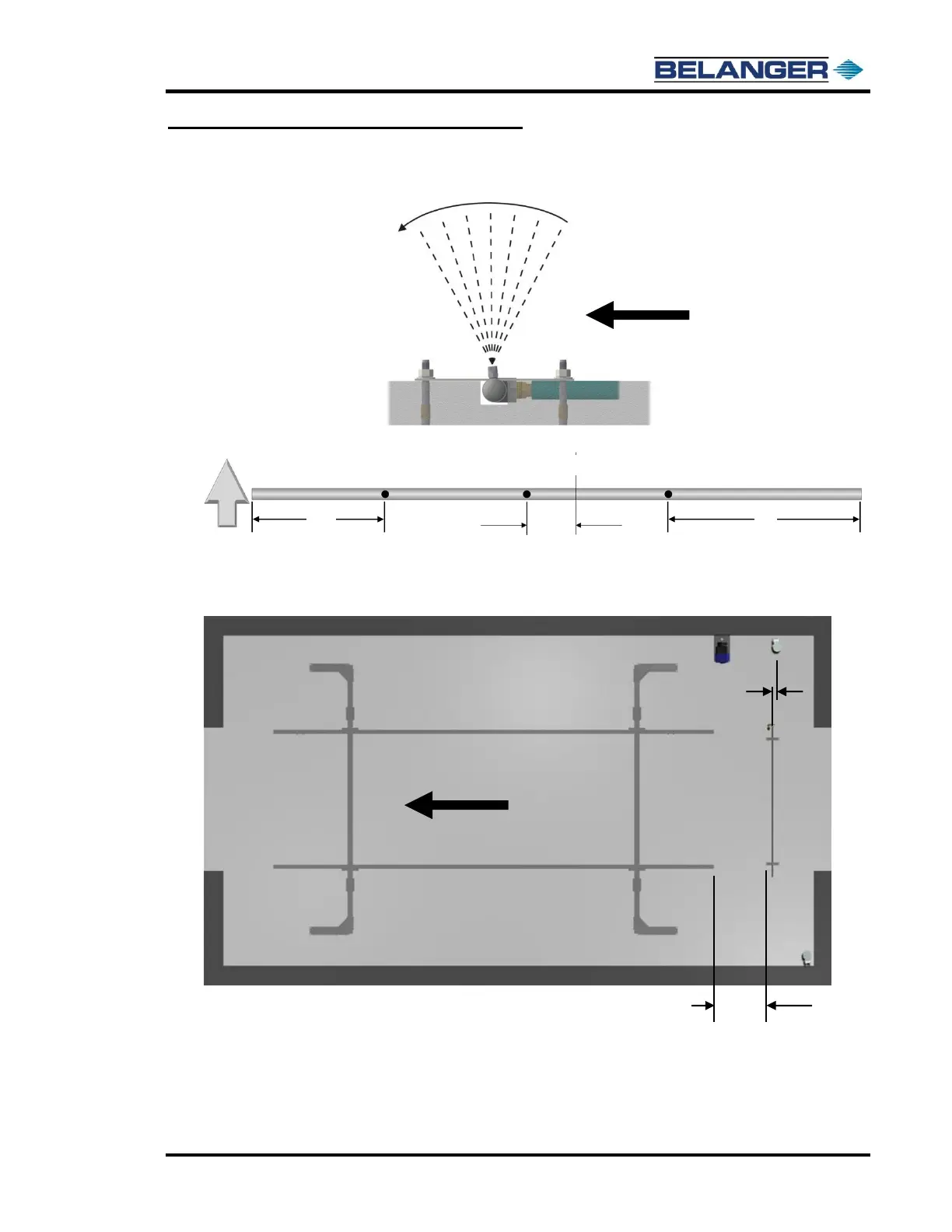

Undercarriage In-Ground Placement
1) The manifold is welded at a 5 angle and is to be pointed towards the exit of the bay.
2) Position the manifold with the center hole 5” towards the driver side of the doorway’s centerline.
3) Place the In-Ground Undercarriage Weldment Assembly in the correct location as shown below
and secure it to the floor using the supplied lag bolts.
