Chapter 4 Frame and Carriage Assembly

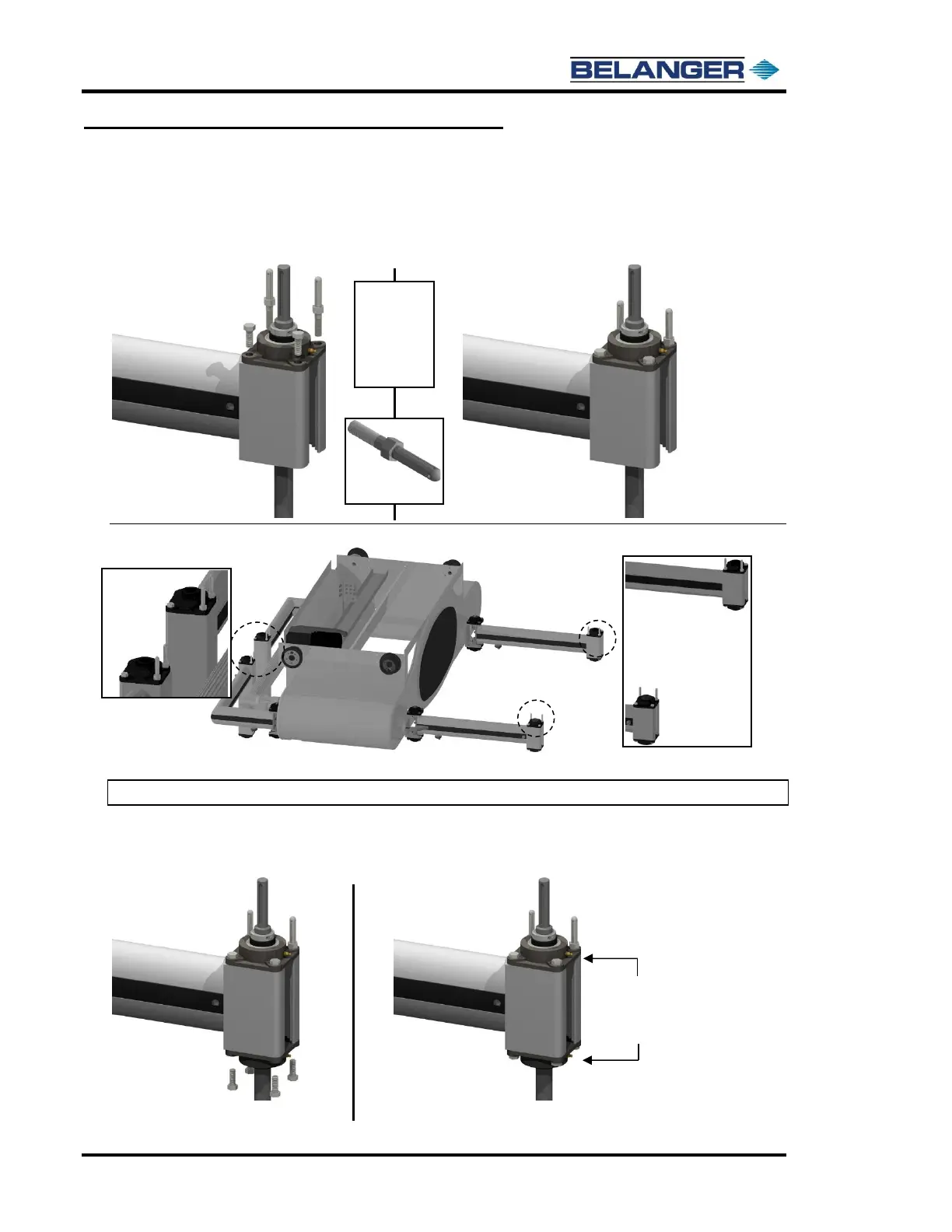

Mounting the Entrance Arm Accessories
3) Take the upper shaft with the bearing and collar on it and slide it onto the entrance arm.
 Secure the bearing with the two provided 9/16-12 x 1-1/2” bolts
 Secure the two Torque Plate Studs in the orientation shown below. Tighten all the fasteners
down completely as shown below.
4) Slide the second bearing on to the bottom of the upper shaft with the flat side facing upward.
Note: For ease of maintenance, be sure that the grease fitting on the bearing faces outwards.
 Secure the bearing to the arm with the four provided 9/16-12 x 1-1/2” bolts. Tighten down
completely.
 Tighten the two set screws on the bearing completely.
Before
After
Before
After
Torque Plate Stud
Confirm the
orientation of
Torque Plate
Studs on the
arms. They
should always
be facing IN
Torque Plate Studs on all four
arms should be facing IN
Grease Fittings
Facing Out
for Easy
Maintenance
