INSTALLATION AND STARTUP
1MANUL220 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 4-49
Chapter 4 Frame and Carriage Assembly
Mounting the Entrance Arm Accessories

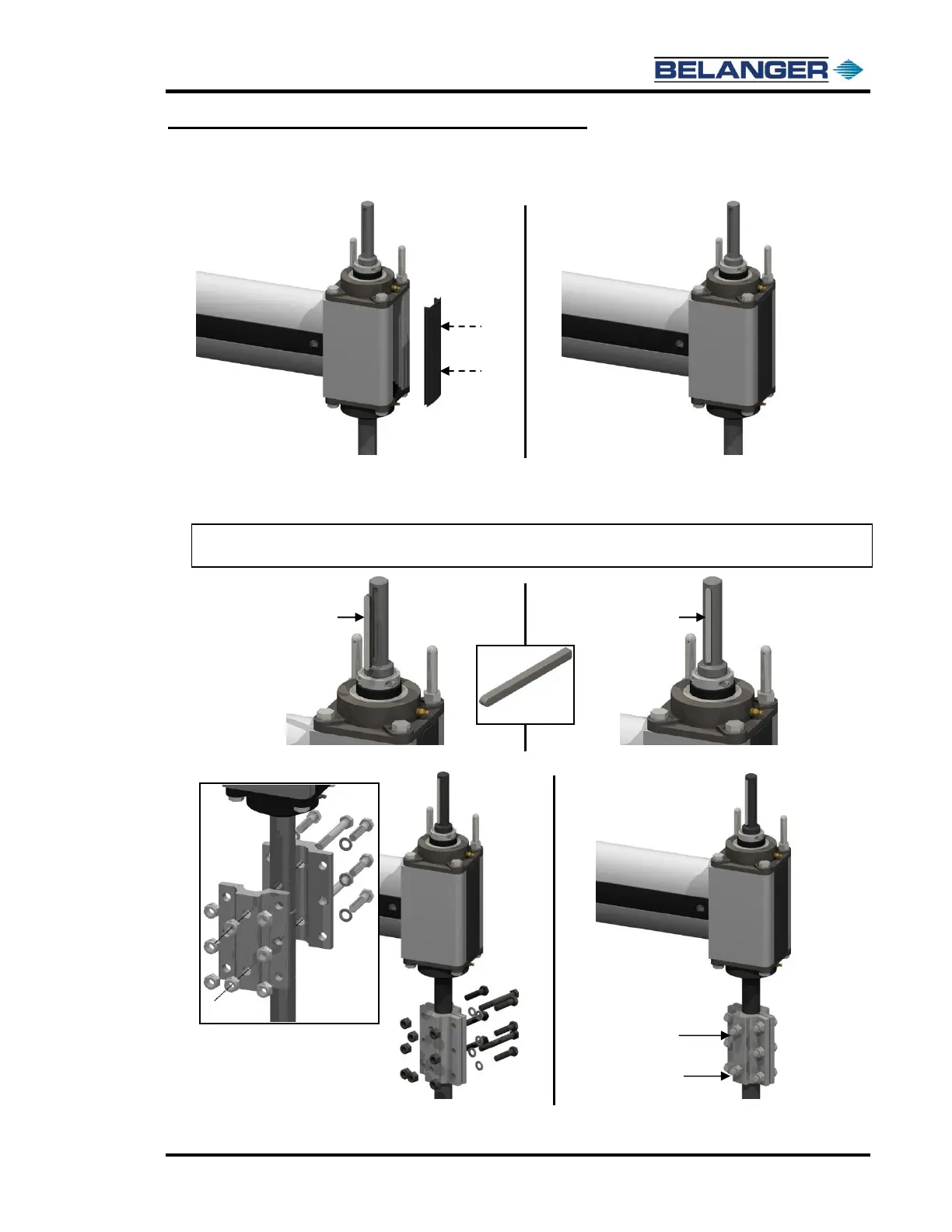

5) Snap the plastic bearing cover into arm.
6) Locate 1STEEL-KY150 and place it into the key slot. See the image below.
Slide the correct motor onto the shaft as shown later in this chapter in Mounting the Entrance
and Exit Motors and Gearboxes.
Note: NEVER FORCE THE GEABOX ON TO THE SHAFTS. SAND OR DEBUR THEM IF
NECESSARY. APPLY ANTI-SEIZE TO THE TOP OF THE SHAFT AND ON KEYSTOCK.
7) Locate the 72-5/8” lower shaft and the clamp assembly. Secure them into place as shown below.
8) Repeat steps 1 to 7 for the Entrance Arm assembly on the opposite side.
